2

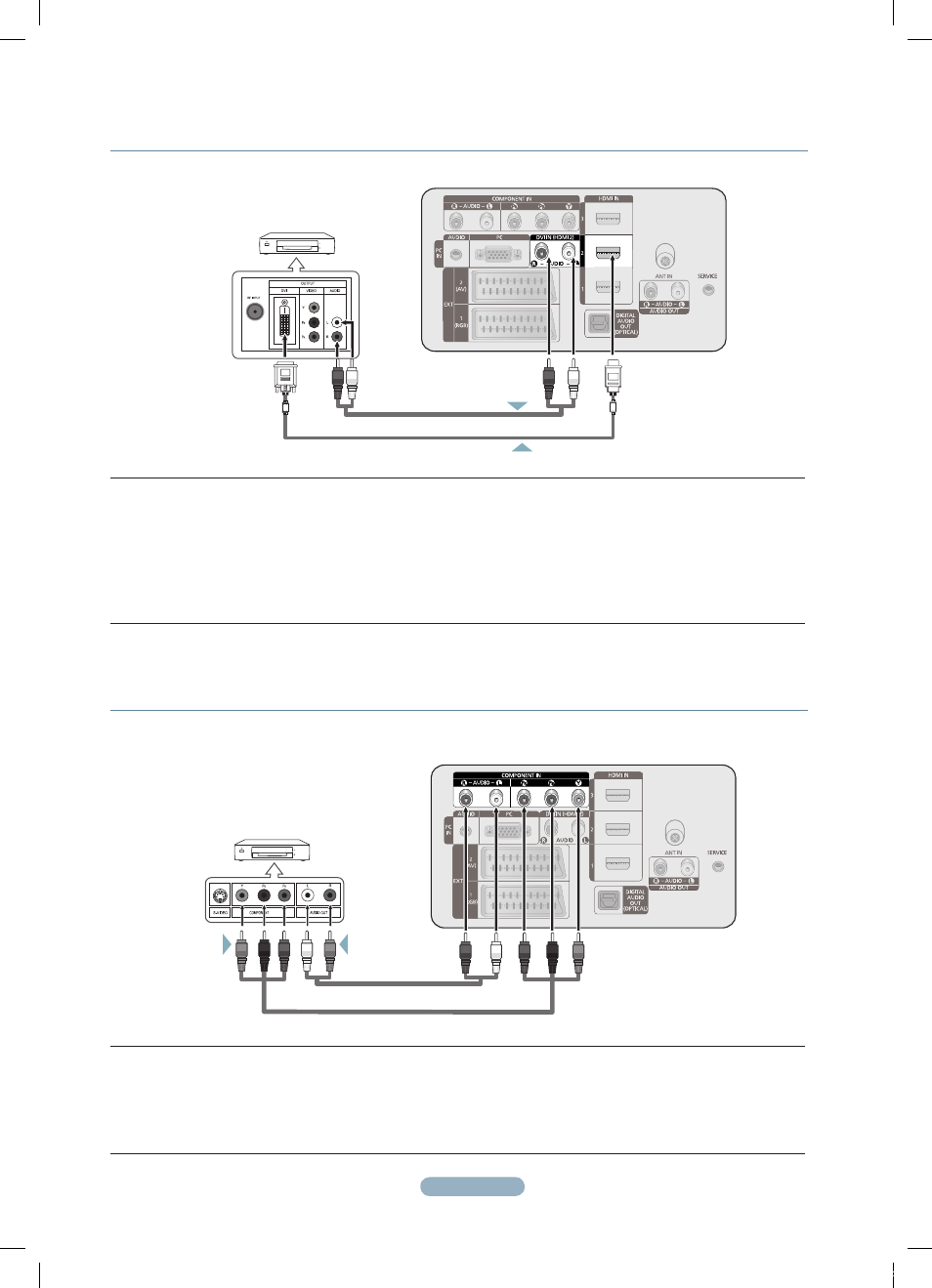

CONNECTING A DVD PLAYER OR CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX) VIA COMPONENT CABLES
1.
Connect Component Cable between the COMPONENT IN [Y, PB, PR] jacks on the TV and the COMPONENT
[Y, PB, PR] jacks on the DVD Player or Cable Box / Satellite receiver(Set-Top Box).
2.
Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks
on the DVD Player or Cable Box / Satellite receiver (Set-Top Box).
Audio Cable (Not supplied)
Component Cable (Not supplied)
2 1
1.
Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMI IN 2 jack on the TV and the DVI jack on
the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the DVD Player or Cable
Box / Satellite receiver (Set-Top Box).
➢ When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack.
CONNECTING A DVD PLAYER OR CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX) VIA DVI
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV REAR PANEL
2
1
Audio Cable (Not supplied)
HDMI/DVI Cable (Not supplied)
