25

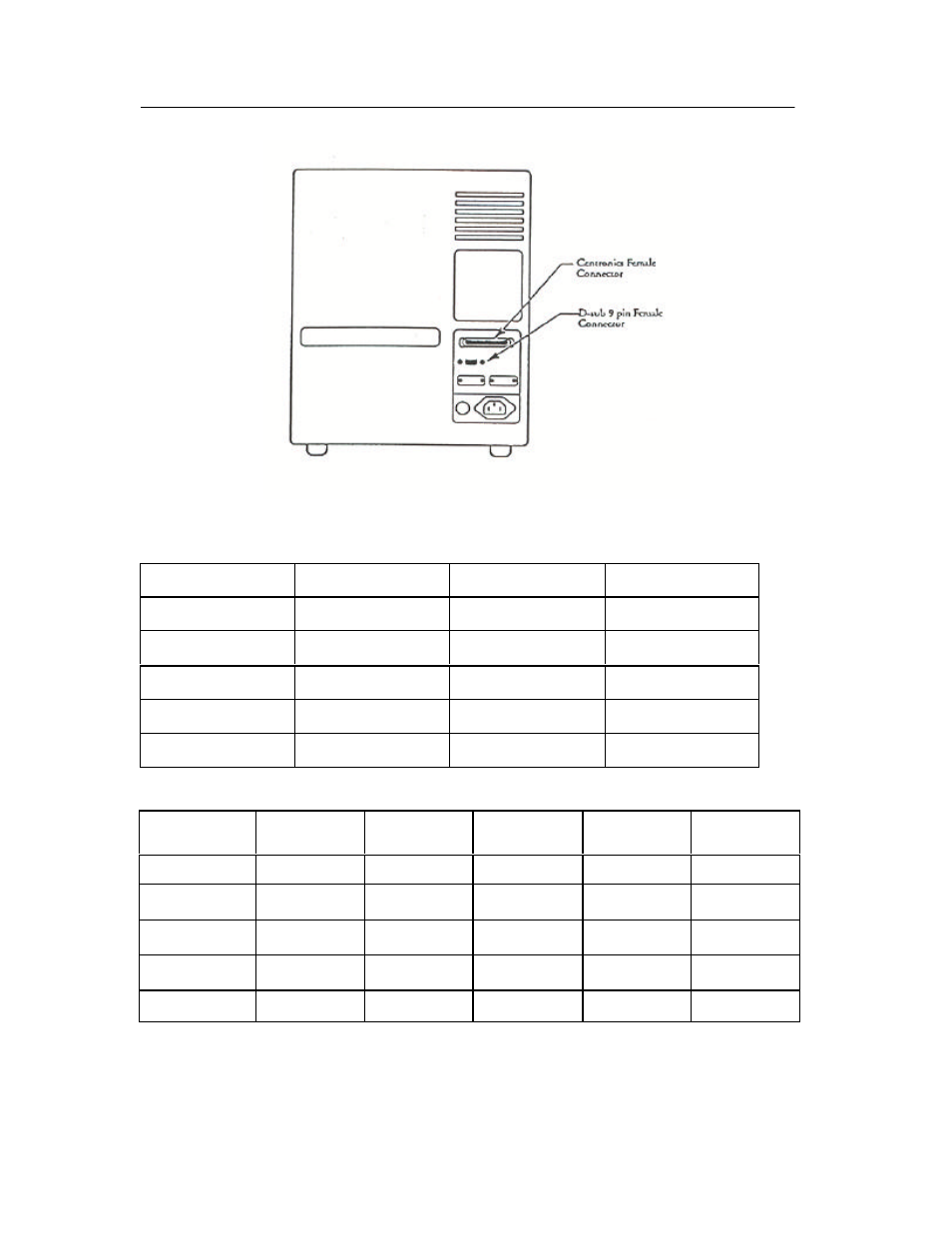

10.0 EXTERNAL CONNECTOR AND PIN ASSIGNMENTS
Pin Assignments of RS232 Interface :
Pin No. Signal Pin No. Signal
1 N/C 6 DSR
2 RXD 7 RTS
3 TXD 8 N/C
4 DTR 9 N/C
5 GND
Pin Assignments of Centronics Parallel Interface:
Pin No. Signal Pin No. Signal Pin No. Signal
1 STROBE 6 DATA 5 11 BUSY
2 DATA 1 7 DATA 6 12 PE
3 DATA 2 8 DATA 7 13 SEL
4 DATA 3 9 DATA 8 14-17 N/C
5 DATA 4 10 AKNLG 18-30 GND
