Programming

F232179

NOTE: If the wash load becomes out of balance,
the machine will attempt to balance the load. After
three failed attempts the display will light the
leftmost digit and a lower spin will be used to
complete the cycle. Refer to Figure 2.

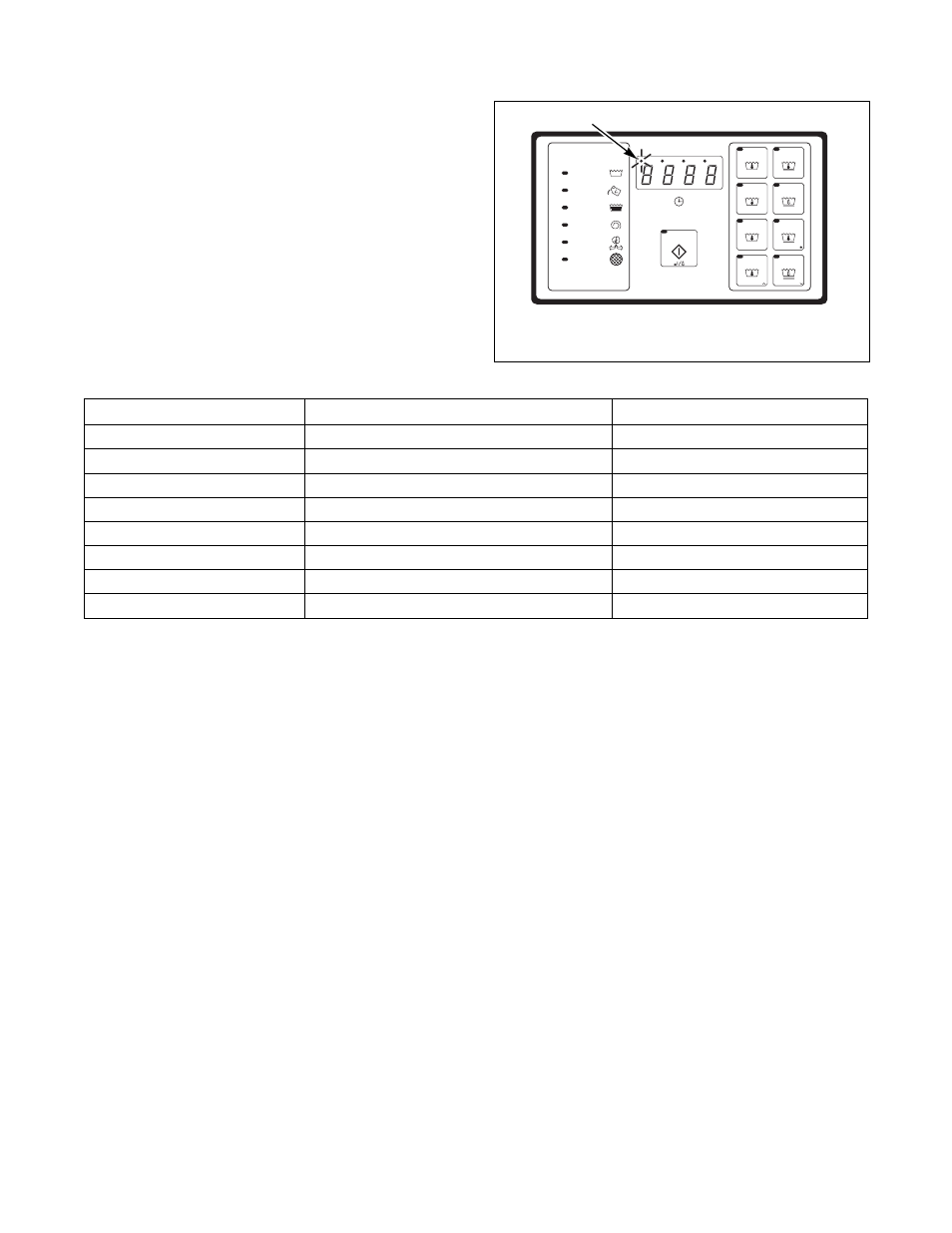

Figure 2

NOTE: External chemical supply signals and any
related flush valves will activate approximately 15
seconds after machine begins to fill with water. If
programmed water level is reached prior to 15
seconds, no chemical supply signal will be
activated.

*NOTE: Only supply 2 (SUP2) and supply 3
(SUP3) have independent water valves to flush
their respective compartment. Compartment 1 will
flush whenever machine is filling with water.

**NOTE: ADD BLEACH LED lights if Supply 2 is
the only supply programmed. If set up for
"bEEP"(refer to SETUP Mode section), buzzer will
sound on and off for the first eight seconds. The
Supply 2 and ADD BLEACH LED remain on for
45 seconds or until the fill is complete, whichever
comes first.

***NOTE: Selecting "EFIL" (Extra fill) in SETUP
Mode will remove supply 5 and supply 6 as optional
supply signals.

CHM522R

Out-of-Balance LED

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

CLEAN
FILTER

NORMAL

LIGHT SOIL

UNIFORMS

HEAVY SOIL

STAINED

DELICATE

HOT

WARM

COLD

START

PERM PRESS

VISA

Supply Programmed

External Chemical Supply Signal

Compartment Flushed

SUP0

None

SUP1

Supply 1

Compartment 1*

SUP2

Supply 2**

Compartment 2

SUP3

Supply 3

Compartment 3

SUP4

Supply 4

No compartment Flush*

SUP5

Supply 5***

No compartment Flush*

SUP6

Supply 6***

No compartment Flush*

SUP7

Supply 7

Compartment 3

Table 2
