Programming Cycle Segments
The machine is preprogrammed with eight wash cycle
formulas that can be edited.
To edit any of these cycles, enter PROGRAM Mode.
In PROGRAM Mode, cycles are selected by number
(1 through 8) as opposed to the RUN Mode, where
cycles are selected by pressing one of the eight
corresponding keys. The keys must serve different
functions in each mode because there are more
functions than keys in PROGRAM Mode.
In RUN Mode the top left keypad selects Cycle 1, the
keypad directly below it selects Cycle 2, etc. Figure 1
shows which keypad selects each cycle in RUN Mode.
1. Enter PROGRAM Mode, display will show
“tSFL” or “0000” if machine does not have a
temperature probe or heat capability.
2. Press the (
∧) keypad to enter Cycle
Programming Mode. The display will reference
cycles by number. Cycle 1 will show first.
3. Use the (
∧) or (∨) keypad to select cycle to be
edited.
4. Press START (Enter) keypad to move into the
menu of options.
NOTE: While cycle is running, pressing the START
(Enter) keypad shows the temperature. Pressing
the START (Enter) keypad again returns display to
time remaining or displays temperature for several
seconds, depending on version software.

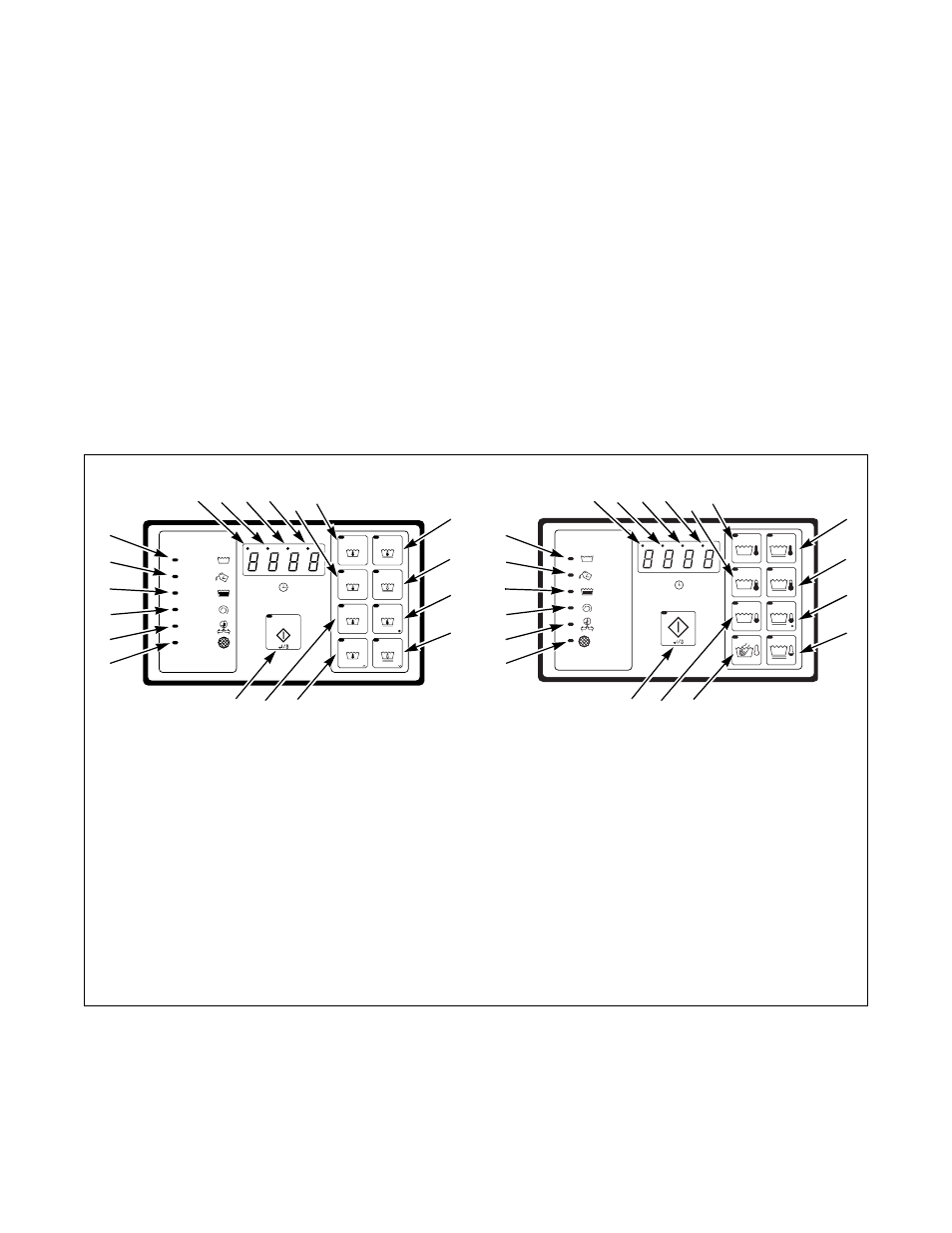

Figure 1
CHM522N
CHM1764C
1
Cycle 1
11
Door Open LED
2
Cycle 2
12
Spin Cycle LED
3
Cycle 3
13
Rinse Cycle LED
4
Cycle 4/”
∧
” Edit
14
Add Bleach LED
5
Cycle 5
15
Wash Cycle LED
6
Cycle 6
16
Out-of-Balance Indicator Dot
7
Cycle 7
(Variable-speed only)
8
Cycle 8/”
∨
” Edit
17
High Water Level Indicator Dot
9
START (Enter)
Keypad
18
Medium Water Level Indicator Dot
10
CLEAN FILTER Indicator LED
(Active only for C80 models)
19
Low Water Level Indicator Dot
CHM522N
WASH
ADD
BLEACH
RINSE
SPIN
DOOR
CLEAN
FILTER
NORMAL
LIGHT SOIL
UNIFORMS
HEAVY SOIL
STAINED
DELICATE
HOT
HOT
HOT
HOT
HOT
HOT
WARM
COLD
START
PERM PRESS
VISA
TM
CHM1764C
60C
60C
40C
40C
95C
95C
<
<
30C
DOMESTIC MODELS
INTERNATIONAL MODELS
1
5
6
7
8
4
10
2
16 17 18 19
3
9
11
12
13
14
15
1
5
6
7
8
4
10
2
16 17 18 19
3
9
11
12
13
14
15
