Samsung RR3773ATCSR User Manual

Page 13

setting up

_13

01 SETTING UP

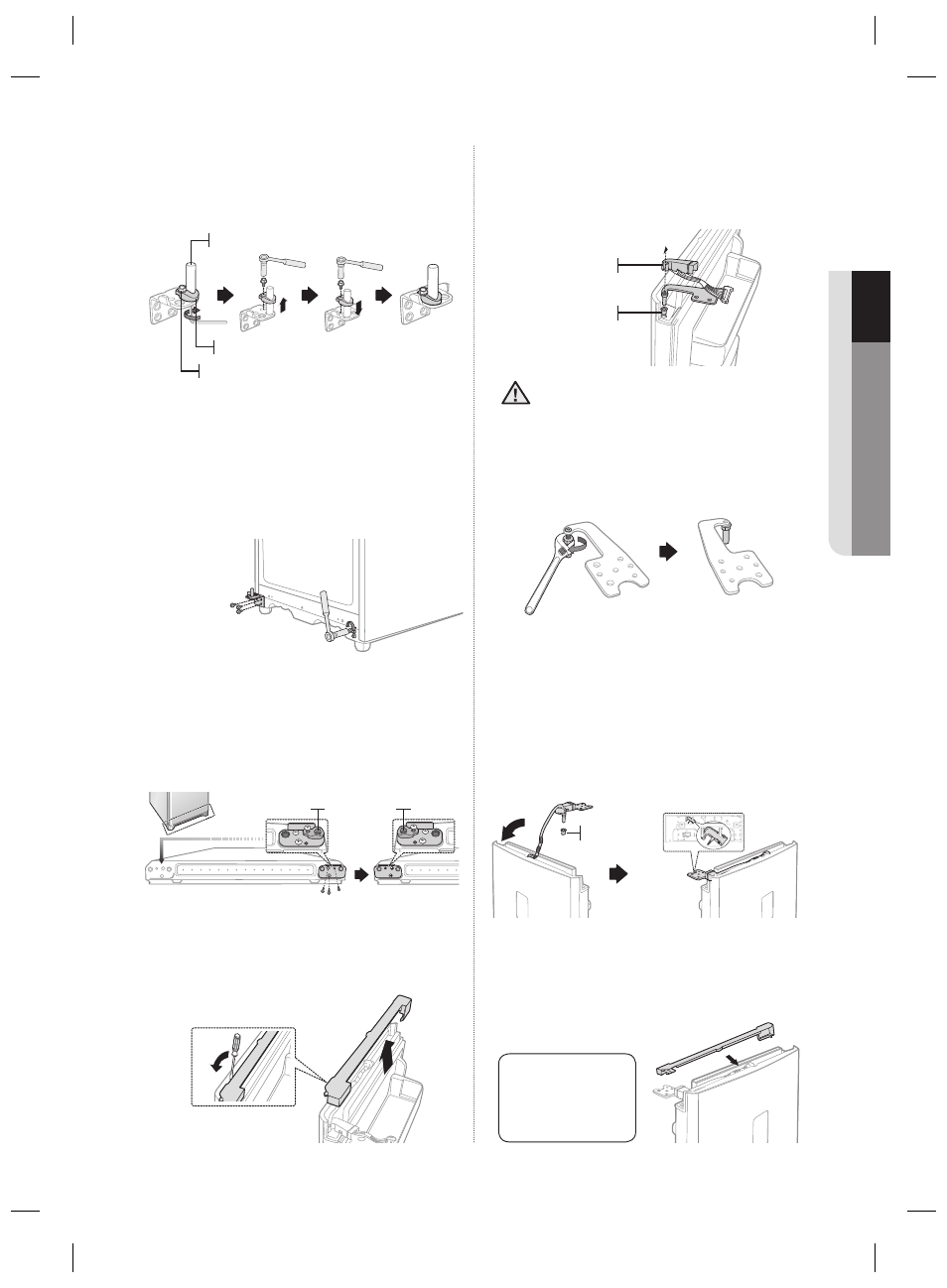

7. Separate the hinge shaft by using hex wrench ﬁ rst.

Unscrew the bolt to remove the hinge riser and
switch the side of the hinge shaft and the hinge
riser.

8. Attach the hinge on the bottom left side of the

refrigerator where bolts were previously removed
in step 6.
Screw the bolts that were removed on the bottom
right side of the refrigerator for the future usage.

9. Remove the screws on the bottom left and right

side of the refrigerator door.
Switch the side of the door stopper from right to
the left. Hinge riser should be switched as well.

10. Remove the wire cover on top of the refrigerator

door to switch the side of the wires.

11. Remove the hinge and the grommet from the

refrigerator door.
Detach the right side hinge cover and pull the
wires out of the hinge cover.

Be careful not to damage the electrical
wires when removing the hinge cover.

12. Use wrench to separate the hinge shaft and then

ﬂ ip the hinge and reattach the hinge shaft.

13. Reassemble the hinge on the refrigerator door by

reversing the step 11.
Make sure to use left side hinge cover (which can
be found underneath the removed plastic cover
from step 2) and remove the grommet.
After reassembling the hinge, wire and the hinge
cover, switch the side from right to the left.

14. After switching the hinge, close it with the wire

cover on the top of refrigerator door.

Hinge shaft

Hinge riser

8 mm Bolt

10 mm

Hinge riser

Hinge cover

Grommet

CAUTION

Grommet

“Cover Wire Door R”

can be found in the

packaging
