English - 24
Installation Part

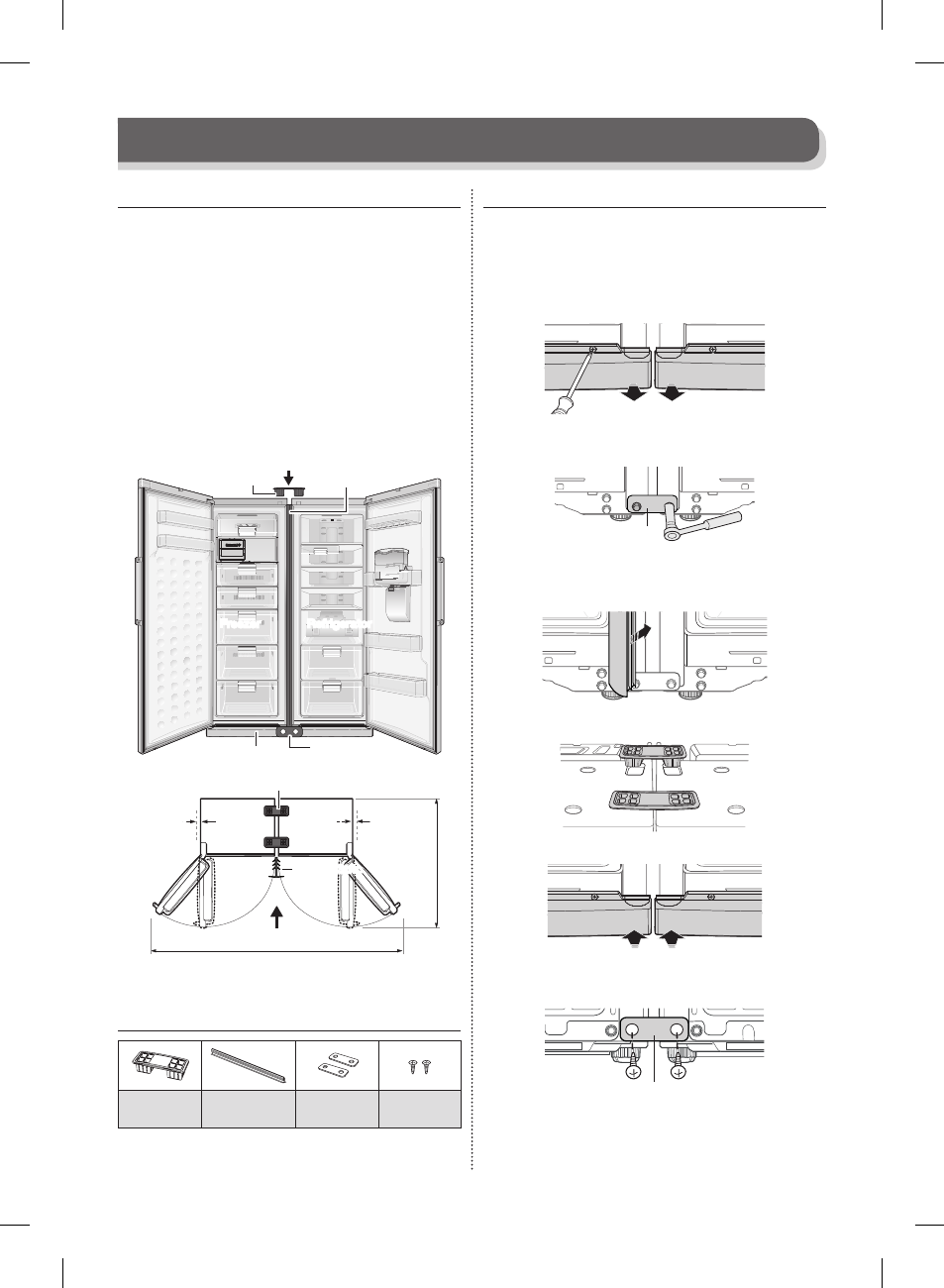

Installing the products together
Side by Side combination possible with Samsung Models
starting with RZ**, RR**.
Please ask the shop for detail such as Color and Design.
For Side by Side arrangement, please make sure
followings.
- Recommend to place the Fridge on the Right for best
performance.
- For perfect finish, allow the following clearance and
install SPACERS in installation Kit provided.
(Only available on some models)
- Make the height of the refrigerator and the freezer
same with referring the 16 page.
Install Direction
Fixer Joining Strip
Freezer Refrigerator
Bottom Fixer A
Front Leg Cover
Fixer
Install Direction
1830
at least
50 mm
at least
50 mm
1183 Joining Strip
121° 121°
Required Tools
Fixer Joining Strip
Bottom
Fixer A, B
Screws
How to install the product
Make sure to turn off the power for both of the products.
1. Keep the distance between the refrigerator and the
freezer about 5~7 mm.
2. Remove the front leg cover on both refrigerator and
the freezer by removing the screws.
3. Remove the screw from the each of the product and
attach them back after putting the bottom fixer.
Bottom Fixer A
4. Insert the joining strip in between the refrigerator and
the freezer.
5. Insert two fixers firmly on the top of the products.
6. Place the front leg cover back on both of the products.
7. Join the bottom fixer B with screws at back of the
products.
Bottom Fixer B
