Atlas Sound MG2500 User Manual
Page 11
9
SETUP

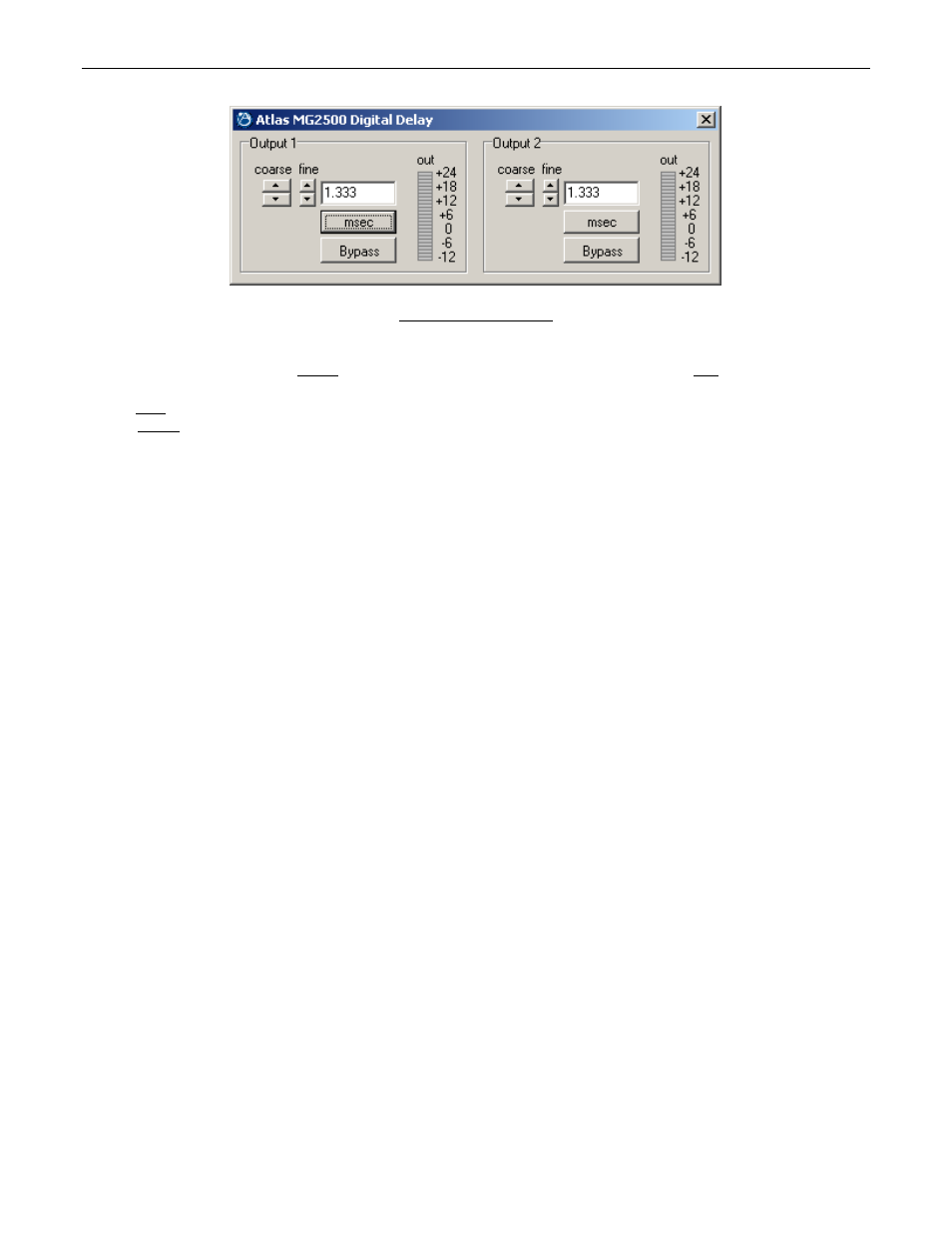

DIGITAL DELAY SCREEN
The Digital Delay screen is used to adjust delay time settings for each Output. Delay time is shown in the window, with adjacent buttons
providing the up/down adjustments. Coarse buttons change the delay time in 1 milli-second increments. Fine buttons change the delay
time in 21 micro-second increments. Delay time may also be entered directly into the window, but will be rounded to the nearest available
setting. Msec allows delay times to instead be entered & calculated in terms of distance measurements (inches, feet, centimeters, or
meters). Bypass temporarily sets delay time for the correspnding Output to minimum (1.333 msec).
