Specifications subject to change without notice

© 2001 Atlas Sound LP

Printed in U.S.A.

000501

SL10-1549

405

TEN

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435

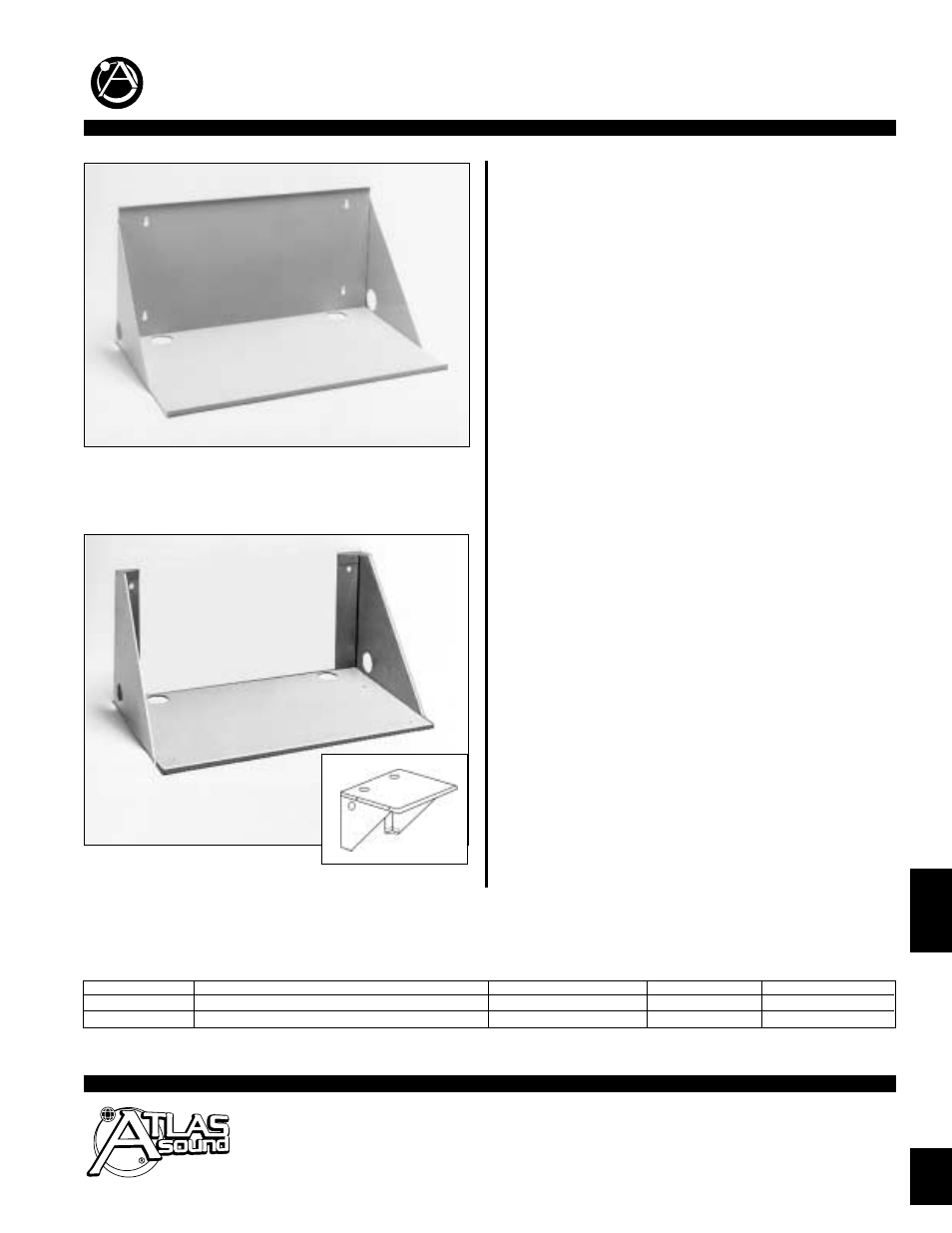

WALL MOUNT SHELVES

AS-120
AS-140

• Choose Welded or 3-Piece Shelf to Securely Wall

Mount Electronic Components

• Sturdy 16-Gauge CRS Units Mount to 16” Wall Studs
• Includes Wire Access Holes to Safely Accommodate Cabling
• Offered in a Choice of Standard Colors

APPLICATION

Atlas Sound Model AS-120 and AS-140 wall mount shelves are per-
fect for limited-access of electronic equipment in convenience food
stores, restaurants, audio/video control rooms, educational and insti-
tutional facilities, auditoriums, stadiums, or venues where the conve-
nience of open access and wall mounting of equipment is desired.
The shelves wall mount on 16" centers.

Typical installations include supporting VHS recorders, amplifiers,
TV/video monitors, tuners, SCA receivers, computer CPU’s or other
electronic equipment that is not rack mountable, or does not require
enclosure protection.

MODEL AS-120 The durable, welded shelf is constructed of 16-
gauge CRS, and is equipped with four keyhole slots in the back panel
(2 on top and 2 on bottom). Keyhole slots are evenly spaced on 16"
centers for stud mounting to walls. Additionally, Model AS-120 fea-
tures a

3

8

" (10mm) front return to safely retain equipment and a total

of four, 1

1

2

" diameter holes for wiring access (2 on bottom and 1 per

side panel). The shelf, which can support up to 100 pounds, has solid
side panels for added aesthetics and protection. Models are available
in a choice of standard colors.

MODEL AS-140 Versatile shelf may be mounted so that equipment
is installed between side supports or inverted ”bookshelf-style” for
open equipment placement. The durable, three piece shelf is con-
structed of 16-gauge CRS, and is equipped with four mounting holes,
evenly spaced on 16" centers for stud mounting to walls. For installa-
tion convenience, the bottom/top panel has a drilling template for
marking the four mounting holes. Model AS-140 shelf is formed on
four sides for rigidity, and has a total of four, 1

1

2

" diameter holes for

wiring access (2 on the bottom/top panel and 1 on each side panel).
The shelf, which can support up to 150 pounds, has welded hanger
gussets for extra strength. The AS-140 ships knocked-down for stor-
age and shipping economies. It includes assembly hardware and is
available in a choice of standard colors.

MODEL

DIMENSIONS

WEIGHT CAPACITY

MOUNTS

WEIGHT

AS-120

20" W x 12

1

2

" D x 10" H (508 x 318 x 254mm)

100 lbs.

Wall Surface

8.75 lbs. ( 3.95 kg.)

AS-140

20" W x 17" D x 12

3

8

" H (508 x 432 x 314mm)

150 lbs.

Wall Surface

14.5 lbs. ( 6.6 kg.)

AS-120

AS-140
