THREE
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
SLOPE FRONT WOODEN BAFFLES
FOR 8" LOUDSPEAKERS
417-8WD
FEATURES
• Attractive Wood Baffle is Suitable for Use in a Variety of Surface
Mount Applications
• Sloped Design Offers Directional Sound Projection
• Model 417-8WD Accommodate Standard 8" (203mm) Loudspeakers
APPLICATIONS
Utilize Atlas Sound slope front baffle Model 417-8WD for a wide variety of sur-
face-mount applications where aesthetics are a primary concern. These attrac-
tive baffles are ideal for installation in offices, conference centers, reception ar-
eas, classrooms, lecture halls, and retail outlets.
GENERAL DESCRIPTION
Model 417-8WD. Wood grain wall baffle/enclosure with attractive black cloth
grille has a 9.5° slope which provides directional sound dispersion offset in the
direction of radiation. Unit is constructed of durable masonite covered with
walnut grain vinyl with a black cloth grille. Loudspeaker mounting studs facilitate
the installation of standard 8" (203mm) loudspeakers*.
ARCHITECT AND ENGINEER SPECIFICATIONS
Slope front baffle shall be Atlas Sound Model_____ (417-8WD,). Baffle shall
feature a slope of _____ (9.5° for model 417-8WD) offset in the direction of radi-
ation. Baffle shall be constructed of
particle board with a black cloth grille.
Model 417-8WD shall be covered with a walnut style vinyl laminate. Unit shall
mount Atlas Sound 8" loudspeaker Model ____. Baffle shall measure 9
1
⁄
2
"
(242mm) wide and 10
1
⁄
2
" (267mm) high with a projection of 5
1
⁄
2
" (140mm) at the
top and 3
3
⁄
4
" (95mm) at the bottom.
SPECIFICATIONS
DIMENSIONS
MODEL
SPEAKER
SLOPE
WIDTH
HEIGHT
PROJECTS
PROJECTS
WEIGHT
(A)
(B)
(C)
TOP (D)
BOTTOM (E)
417-8WD
8" (203mm)
9.5°
9
1
⁄
2
" (242mm)
10
1
⁄
2
" (267mm)
5
1
⁄
2
" (140mm)
3
3
⁄
4
" (95mm)
3.7 Lbs. (1.7 kg)
B
A
D
E
C
*Note:
Model 417-8WD is a component of Atlas
Sound’s WD Series pre-assembled loudspeaker
/transformer/baffle assemblies. Please refer to sales
literature #SL1-1341 for additional information.
417-8WD

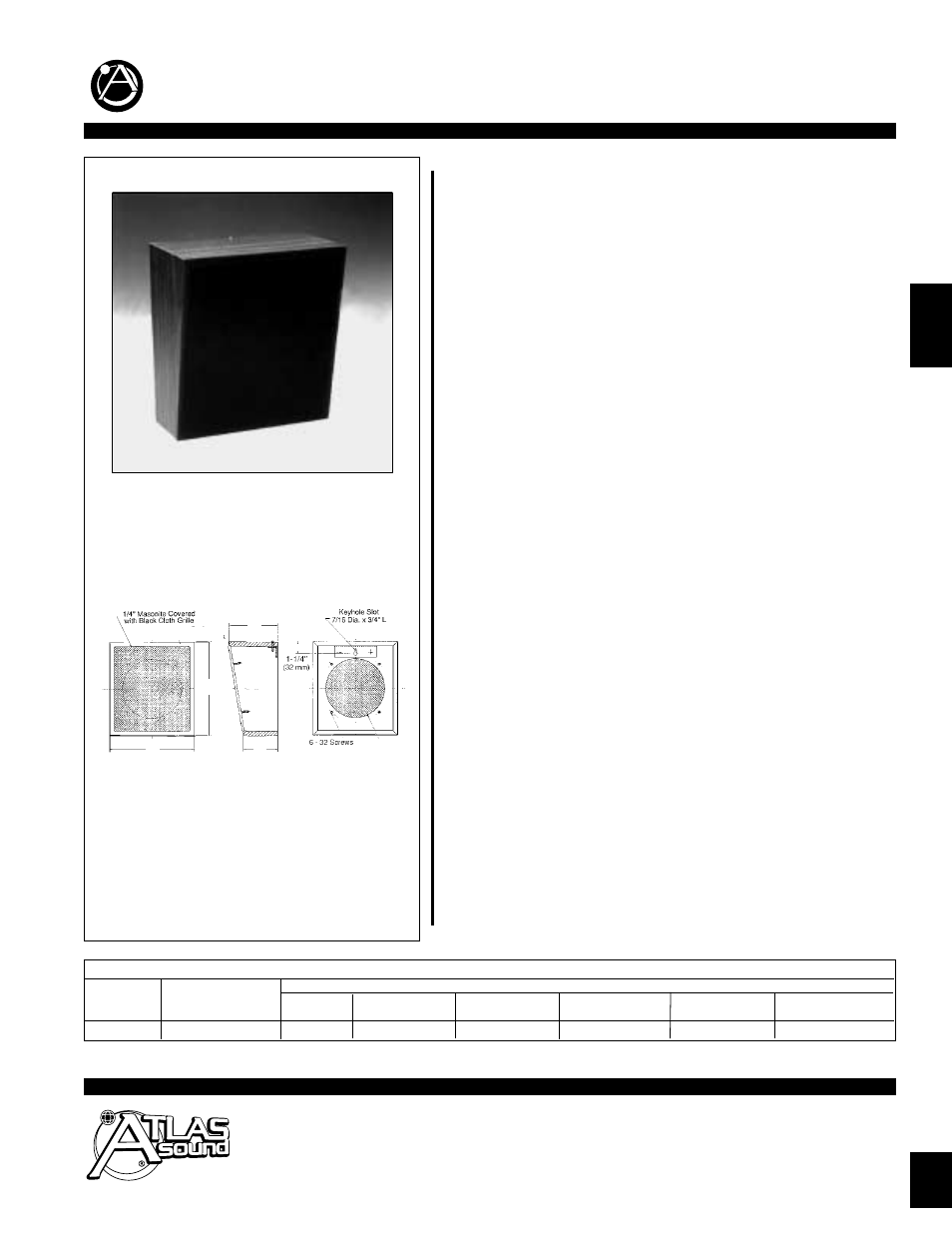

FRONT VIEW SIDE VIEW REAR VIEW
