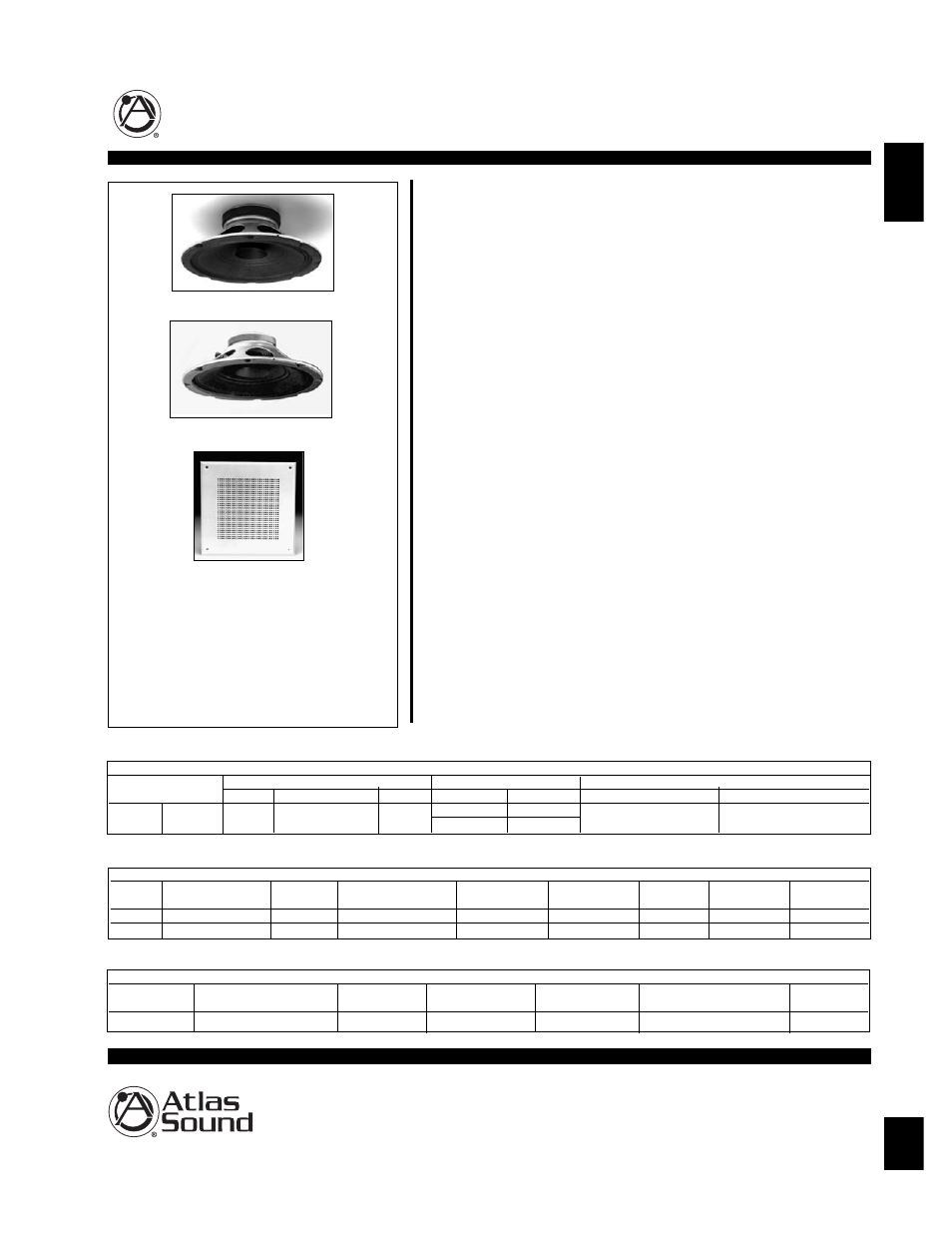

Atlas Sound D161-8 - Manual

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
AtlasSound.com
Specifications subject to change without notice
© 2004 Atlas Sound LP Printed in U.S.A. 00404 ATS001746 RevB 4/04 SL1-1406
41
ONE
PRE-ASSEMBLED
8” LOUDSPEAKER, TRANSFORMER & BAFFLE
D Series
G Series
PACKAGE ASSEMBLIES
INCLUDES ASSEMBLY NET WEIGHT RECOMMENDED
MODEL BAFFLE STYLE XFMR D SERIES G SERIES ENCLOSURE MTG. RING / TILE BRIDGE
D161-8 G161-8 161-8 Square, White Dual 3.2 2.5 SE175-4, 198 Series 72-8(E1)/81-8S
25/70.7 Voltage
FEATURES
• Save Time and Money with Factory-Assembled Loudspeaker, Transformer and
Baffle Packages
• Meet Performance Requirements with 25 and 15-Watt Dual Voltage Models
GENERAL DESCRIPTION
Convenient, labor saving assemblies are ideal for use wherever a general-purpose
paging and music loudspeaker is required. Quality components are factory wired and
shipped complete with dual-cone loudspeaker, dual-voltage transformer and round or
square grille. D Series incorporates 8” model C10A with a 10-ounce ceramic magnet
to handle 25-watts of power. G Series utilizes 8” model C5A with a 5-ounce ceramic
magnet to handle 15-watts. Versatile 25 / 70.7 volt transformer includes pre-wired
secondary leads with color coded, stripped and tinned primary. Recessed grilles are
offered in square versions with attractive white epoxy finish. To meet code require-
ments and facilitate installation in a wide variety of ceilings, Atlas Sound offers an
optional selection of recessed and surface mounting enclosures, mounting rings and
tile bridge accessories.
ARCHITECT AND ENGINEER SPECIFICATIONS
The loudspeaker, transformer, baffle assembly shall be Atlas Sound D or G Series
Model________or approved equal. The loudspeaker shall be an 8" (203mm) dual-
cone type with a power rating of ___ (25 or 15) watts and a frequency response of
______ (45 Hz - 19 kHz or 50 Hz - 18 kHz). Loudspeaker shall be equipped with a
factory-wired, dual-voltage transformer and recessed grille. Complete assembly shall
mount to optional Model ______enclosure, mounting rings and/or tile bridge.
LOUDSPEAKER SPECIFICATIONS
MODEL SPEAKER POWER** FREQUENCY MAGNET V.C. V.C. FLUX
SERIES SIZE* RATING RESPONSE SENSITIVITY (Ceramic) DIAMETER IMPEDANCE DENSITY
D 8" Model C10A 25 Watts 45 Hz - 19 kHz 97dB 10 Oz. (283g.) 1" (25mm) 8 Ohms 10,600 Gauss
G 8" Model C5A 15 Watts 50 Hz - 18 kHz 96dB 5 Oz. (142g.) 1" (25mm) 8 Ohms 9,200 Gauss
TRANSFORMER SPECIFICATIONS
PRIMARY FREQUENCY PRIMARY SECONDARY INSERTION CORE POWER
VOLTS RESPONSE +1.5dB TAPS IMPEDANCE LOSS (Max) SIZE RATING
25 / 70.7 100 Hz - 10 kHz C, 1 ⁄
2
, 1, 2, 4 8 Ohms 1.5dB 1 ⁄
2
" x 5 ⁄
8
" (13 x 16mm) 4 Watts
*Min. Mounting Requirements: D Series, 8 1 ⁄ 8 " Dia. x 3" D; G Series, 8 1 ⁄ 8 " Dia. x 2 11 ⁄ 16 " D **Measured in infinite baffle
161-8
D Series
G Series
