CONNECTIONS
19 18

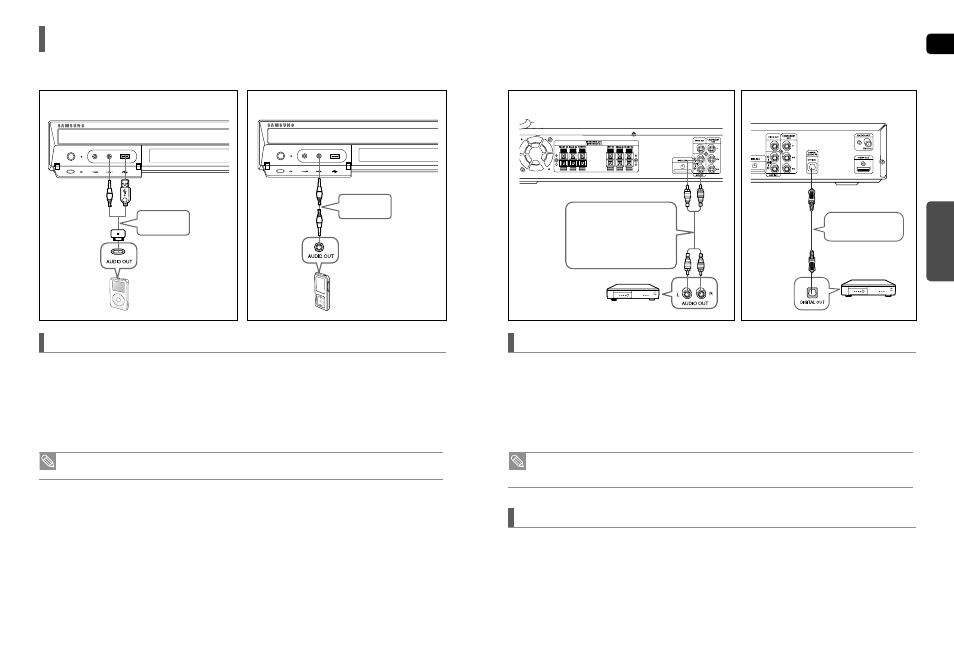

Connecting Audio from External Components
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Set-Top Box.
1 Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital
component.
2 Press the AUX button on the remote control to select .
■ You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
AUX1 : Front Panel AUX1 : Front Panel (iPod only)
Audio Cable
Audio Cable
(not supplied)
If the external analog
component has only one
Audio Out, connect either
left or right.
OPTICAL : Rear Panel AUX2 : Rear Panel
Optical Cable
(not supplied)
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
1 Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
■ Be sure to match connector colors.
2 Press the AUX button on the remote control to select input.
■ You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to
this product.
AUX1 : Connecting an External Analog Component/iPod MP3
You can listen to the audio from an External Analog Component/iPod MP3 player through the main unit.
1 Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external analog component/
iPod MP3.
2 Press the AUX button on the remote control to select input.
■ You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
• When the unit is powered on and you connect an iPod MP3 player, the unit will charge your iPod's battery.
Audio Cable
(not supplied)
