3-6
Using

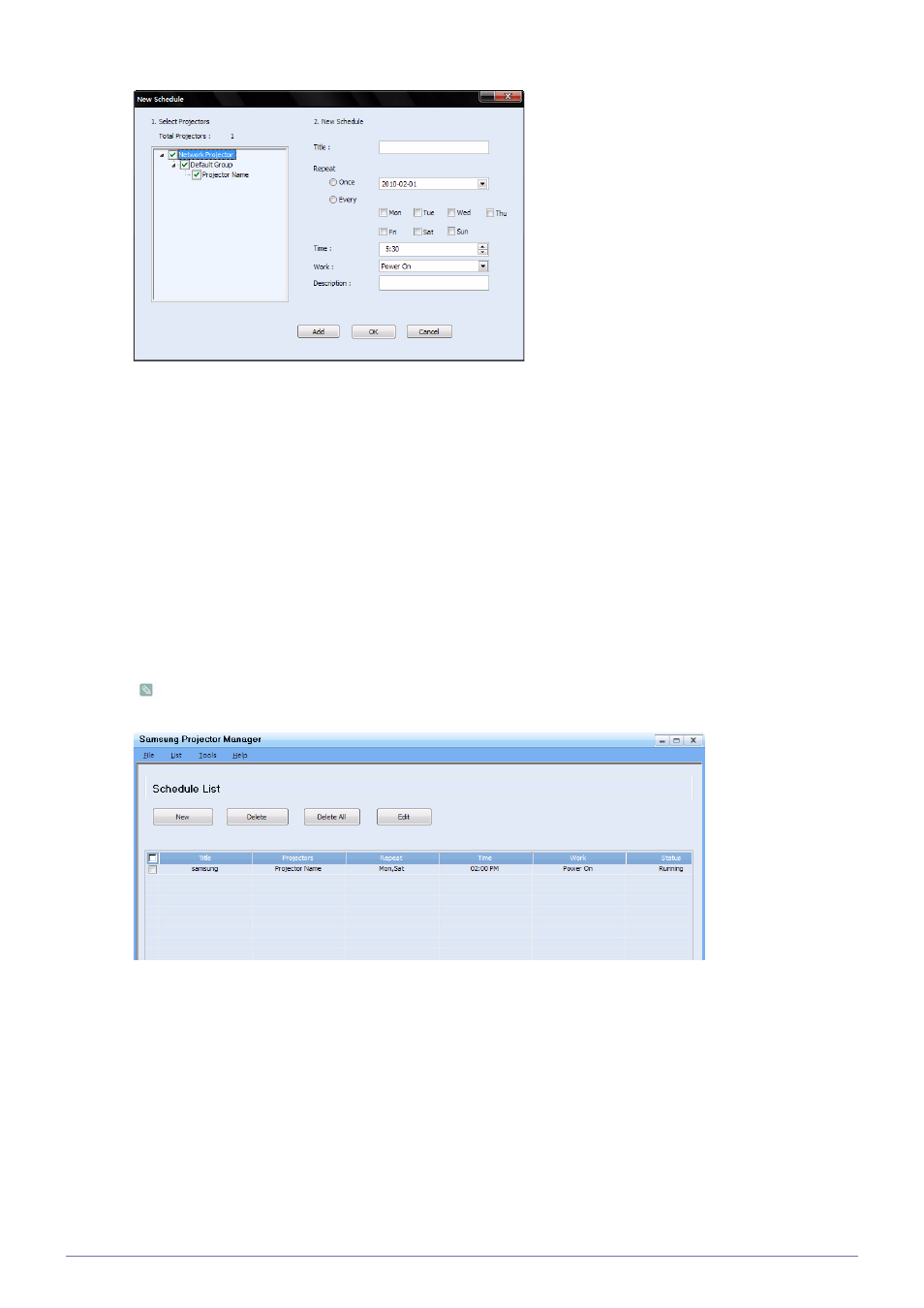

1. Press the button. The New Schedule screen appears.
2. Select the projectors to apply the new schedule to from the field. When you select a projector, a check mark appears in the check box to its left.3. Set the , <Repeat>, <Time>, and <Work>, and enter a <Description> of the Schedule. <br>Explanations for each of these terms is below.<br> -<Title> : Sets the name of a Schedule.<br> -<Repeat> : Sets the schedule repetition (<Once>- Executes only once, <Every> - Specifies a repetition date).<br> -<Time> : Determines the time at which a schedule will be executed.<br> -<Work >: Sets Source switch or <Power On>/<Power Off><br> -<Description> : Shows a detailed description of a Schedule.<br> 4. After you have entered all the information, press <ADD>.</p><p style="position:absolute;top:587px;left:159px;white-space:nowrap" class="ft04">You can view the registration history of a Schedule. You can also view the status of a Schedule. The Status codes <br>are below:</p><p style="position:absolute;top:627px;left:136px;white-space:nowrap" class="ft05"> -<Complete>: Schedule complete.<br> -<Waiting>: Schedule still awaiting execution.<br> -<Running>: Repetitive schedule is running.</p><p style="position:absolute;top:700px;left:136px;white-space:nowrap" class="ft01"><b> </b></p><p style="position:absolute;top:700px;left:173px;white-space:nowrap" class="ft02">•</p><p style="position:absolute;top:700px;left:195px;white-space:nowrap" class="ft02">To save or load the registered schedule, select <File>→<Export Config>.</p><p style="position:absolute;top:721px;left:173px;white-space:nowrap" class="ft02">•</p><p style="position:absolute;top:721px;left:195px;white-space:nowrap" class="ft02">If you want to operate a Schedule loaded by <Import Config>, load the projector's information in advance.</p><p style="position:absolute;top:744px;left:114px;white-space:nowrap" class="ft03"> </p><p style="position:absolute;top:1002px;left:90px;white-space:nowrap" class="ft00">•</p><p style="position:absolute;top:1002px;left:112px;white-space:nowrap" class="ft05">Other settings <br>The <Tools> selection in the Menu Bar contains two menu items, <Configure Monitoring Items> and <Options>.<br>- <Configure Monitoring Items><br><Configure Monitoring Item> lets you select an item to be displayed in the monitoring window display. After you select the <br>item, you set the display priority of the item by moving it up or down in the list of items you have selected for display.<br>- <Options><br><Automatically Run> – When a PC is turned on, Samsung Projector Manager will be turned on automatically.<br><Minimize to system tray> – Samsung Projector Manager will be minimized to the system tray.<br> <File> contains two selections.<br>- <File> →<Export Config>: Saves all of the configured settings under Samsung Projector Manager in the desired file <br>names to the corresponding folders.<br>- <File> →<Import Config>: Imports a saved Configuration file. Sets the Samsung Projector Manager to the saved </p><p style="position:absolute;top:1243px;left:114px;white-space:nowrap" class="ft00">settings.</p></div> </div> <div class="manual-page-original" itemscope="itemscope" itemtype="https://schema.org/ImageObject" data-img="/screens/437808/55.png" style="display: none;"> </div> </div> <a href="/manuals/423312/samsung-sp2553xwx-za.html?page=54" class="manual-view__prev -onpage-nav" title="Previous (← + Ctrl)" aria-label="Previous page"><svg class="svg-icon"><use xlink:href="#icon-arrow-6"></use></svg></a> <a href="/manuals/423312/samsung-sp2553xwx-za.html?page=56" class="manual-view__next -onpage-nav" title="Next (Ctrl + →)" aria-label="Next page"><svg class="svg-icon"><use xlink:href="#icon-arrow-6"></use></svg></a> </div> </div> <nav class="inline-nav inline-nav--dark-grey inline-nav--bottom"> <div class="pager pager--left" id="def-pager"> <span class="pager__label">Pages:</span> <a class="pager__a pager__prev" aria-label="Previous page" href="/manuals/423312/samsung-sp2553xwx-za.html?page=54"><svg class="svg-icon"><use xlink:href="#icon-arrow-2"></use></svg></a> <a class="pager__a pager__number" href="/manuals/423312/samsung-sp2553xwx-za.html">1</a> <span class="pager__hellip">…</span> <a class="pager__a pager__number" href="/manuals/423312/samsung-sp2553xwx-za.html?page=53">53</a> <a class="pager__a pager__number" href="/manuals/423312/samsung-sp2553xwx-za.html?page=54">54</a> <span class="pager__a pager__number active">55</span> <a class="pager__a pager__number" href="/manuals/423312/samsung-sp2553xwx-za.html?page=56">56</a> <a class="pager__a pager__number" href="/manuals/423312/samsung-sp2553xwx-za.html?page=57">57</a> <span class="pager__hellip">…</span> <a class="pager__a pager__number" href="/manuals/423312/samsung-sp2553xwx-za.html?page=89">89</a> <a class="pager__a pager__next" aria-label="Next page" href="/manuals/423312/samsung-sp2553xwx-za.html?page=56"><svg class="svg-icon"><use xlink:href="#icon-arrow-3"></use></svg></a> </div> <div class="complain"> <div class="popup-menu complain__menu" id="complain-wnd" style="display: none;"> <ul> <li><a href="javascript:" class="ajax-link" data-type="brand">wrong Brand</a></li> <li><a href="javascript:" class="ajax-link" data-type="model">wrong Model</a></li> <li><a href="javascript:" class="ajax-link" data-type="readability">non readable</a></li> </ul> </div> </div> </nav> </div> </div> </div> <div class="manual-related-docs"> <span class="title title--h2">See also other documents in the category Samsung Projectors:</span> <div class="manual-also-for__list"> <ul class="list-block__list"> <li> <a href="/manuals/138543/samsung-s23a350b-s22a350h-s24a350h-s19a350b-s22a350b-s24a350b-s23a350h-s20a350b-s27a350h-s20a350n-s19a350n-s27a350b-ls23a350hs-za-ls22a350hs-za-ls24a350hs-za-ls23a350bs-zc-ls27a350hs-za-ls20a350bs-za.html"> <span class="model-name">S27A350B</span> <span class="pages">(88 pages)</span> </a> </li> <li> <a href="/manuals/155094/samsung-hl-r6164w-hl-r4664w-hl-r4264w-hl-r5664w-hl-r5064w.html"> <span class="model-name">HL-R5064W</span> <span class="pages">(96 pages)</span> </a> </li> <li> <a href="/manuals/139897/samsung-sp-a600b-spa600bx-za.html"> <span class="model-name">SPA600BX-ZA</span> <span class="pages">(43 pages)</span> </a> </li> <li> <a href="/manuals/148008/samsung-sp-f10m-sp-f10.html"> <span class="model-name">SP-F10</span> <span class="pages">(92 pages)</span> </a> </li> <li> <a href="/manuals/139177/samsung-sp-l331-bp59-00134h-01-sp-l301-sp-l351.html"> <span class="model-name">SP-L351</span> <span class="pages">(78 pages)</span> </a> </li> <li> <a href="/manuals/144841/samsung-hl72a650.html"> <span class="model-name">HL72A650</span> <span class="pages">(195 pages)</span> </a> </li> <li> <a href="/manuals/149975/samsung-hl-r6168w-hl-r6768w-hl-r5668w.html"> <span class="model-name">HL-R5668W</span> <span class="pages">(144 pages)</span> </a> </li> <li> <a href="/manuals/144903/samsung-hln4365w-hln567w-hln617w-hln437w-hln5065w-hln507w-hln567wx-xac-hln467wx-xac-hln467wx-xaa-hln567wx-xaa.html"> <span class="model-name">HLN507W</span> <span class="pages">(46 pages)</span> </a> </li> <li> <a href="/manuals/146733/samsung-hl-r5687w-hl-r5087w-hlr5687wx-xaa.html"> <span class="model-name">HL-R5087W</span> <span class="pages">(104 pages)</span> </a> </li> <li> <a href="/manuals/148523/samsung-sp-l220-spl220wx-za.html"> <span class="model-name">SPL220WX-ZA</span> <span class="pages">(38 pages)</span> </a> </li> <li> <a href="/manuals/138387/samsung-hcn553w-pcn5425r-hcn653w-hcn4226w-hcn473w-hcn4727w-hcn4727wscxaa-hcn5527wx-xaa-hcn4727wx-xac-hcn5527wx-xac-hcn4727w5s-xaa-hcn4727wx-xaa.html"> <span class="model-name">HCN4727W</span> <span class="pages">(71 pages)</span> </a> </li> <li> <a href="/manuals/145589/samsung-hl-r6156w-hl-r4656w-hl-r5056w-hl-r5656w.html"> <span class="model-name">HL-R5656W</span> <span class="pages">(96 pages)</span> </a> </li> <li> <a href="/manuals/145270/samsung-hc-r4245w-hc-r4755w-hc-r4745w-hc-r4355w-hc-r5245w-hcr5245wx-xaa-hcr4355wx-xaa.html"> <span class="model-name">HC-R5245W</span> <span class="pages">(80 pages)</span> </a> </li> <li> <a href="/manuals/150877/samsung-sp-p310me-spp310memx-xaa.html"> <span class="model-name">SPP310MEMX-XAA</span> <span class="pages">(32 pages)</span> </a> </li> <li> <a href="/manuals/138542/samsung-hl61a750.html"> <span class="model-name">HL61A750</span> <span class="pages">(2 pages)</span> </a> </li> <li> <a href="/manuals/142682/samsung-hl-t5656w-hl-t6756w.html"> <span class="model-name">HL-T6756W</span> <span class="pages">(76 pages)</span> </a> </li> <li> <a href="/manuals/632573/samsung-hl-4676s.html"> <span class="model-name">HL-$4676S</span> <span class="pages">(135 pages)</span> </a> </li> <li> <a href="/manuals/149144/samsung-tantus-hlm-5065w-hlm617w-hlm507w-hlm5065wx-xaa.html"> <span class="model-name">HLM507W</span> <span class="pages">(88 pages)</span> </a> </li> <li> <a href="/manuals/140741/samsung-sp-m220s-sp-m250s-sp-m200s-bp59-00140e-01.html"> <span class="model-name">BP59-00140E-01</span> <span class="pages">(60 pages)</span> </a> </li> <li> <a href="/manuals/135366/samsung-hcn529w-hcn659w-hcn5529w.html"> <span class="model-name">HCN5529W</span> <span class="pages">(84 pages)</span> </a> </li> <li> <a href="/manuals/141511/samsung-hl-r5067w-hl-r6767w.html"> <span class="model-name">HL-R6767W</span> <span class="pages">(144 pages)</span> </a> </li> <li> <a href="/manuals/151469/samsung-hl-p5067w-hl-p4667w-hl-p5667w-hl-p6167w-hlp4667wx-xaa.html"> <span class="model-name">HL-P6167W</span> <span class="pages">(16 pages)</span> </a> </li> <li> <a href="/manuals/138796/samsung-tantus-pck-6115r-tantus-pcj-614rf-pcj614rfx-xaa.html"> <span class="model-name">Tantus PCJ 614RF</span> <span class="pages">(58 pages)</span> </a> </li> <li> <a href="/manuals/136167/samsung-hl-p6163w-hl-p4663w-hl-p5663w.html"> <span class="model-name">HL-P5663W</span> <span class="pages">(46 pages)</span> </a> </li> <li> <a href="/manuals/141392/samsung-hc-p5241w-hc-p4741w.html"> <span class="model-name">HC P4741W</span> <span class="pages">(64 pages)</span> </a> </li> <li> <a href="/manuals/140663/samsung-hl-s6186w-hl-s5686w-hl-s5086w.html"> <span class="model-name">HL-S5086W</span> <span class="pages">(131 pages)</span> </a> </li> <li> <a href="/manuals/137378/samsung-hc-r5251w.html"> <span class="model-name">HC-R5251W</span> <span class="pages">(64 pages)</span> </a> </li> <li> <a href="/manuals/149208/samsung-sp-p410m-bp59-00092h-05-spp410mx-zx.html"> <span class="model-name">SPP410MX-ZX</span> <span class="pages">(54 pages)</span> </a> </li> <li> <a href="/manuals/142879/samsung-sph-sp-m220-sp-m200-sp-m250-sp2503xwx-za-sp2203xwx-za.html"> <span class="model-name">SP2203XWX-ZA</span> <span class="pages">(60 pages)</span> </a> </li> <li> <a href="/manuals/146017/samsung-hcl4715w-hcl-6515w-hcm5525w-hcm6525w-tantus-hcl-652w-hcl652wx-xaa-hcl5515wx-xaa-hcl652wx-xac.html"> <span class="model-name">Tantus HCL 652W</span> <span class="pages">(67 pages)</span> </a> </li> <li> <a href="/manuals/150133/samsung-hcm4215w-hcm422w-hcm653w-hcm4216w-hcm5525w-hcm553w-hcl473w-hcl4715w-pcl545r-pcl5415r.html"> <span class="model-name">PCL5415R</span> <span class="pages">(67 pages)</span> </a> </li> <li> <a href="/manuals/151988/samsung-sp-m305-sp-m275-sp-m255-sp-m225-sp-m20-sp2553xwx-za.html"> <span class="model-name">SP2553XWX-ZA</span> <span class="pages">(89 pages)</span> </a> </li> <li> <a href="/manuals/154082/samsung-hl-r4266w.html"> <span class="model-name">HL-R4266W</span> <span class="pages">(108 pages)</span> </a> </li> <li> <a href="/manuals/139277/samsung-p63fp-2-p50hp-2-p63fp.html"> <span class="model-name">P63FP</span> <span class="pages">(117 pages)</span> </a> </li> <li> <a href="/manuals/155840/samsung-tantus-hcm653w-tantus-hcl-552w-hcl-473w-hcl5515w-hcm5525wx-xaa-hcl473wbx-xac-hcl4715wx-xac-hcl473wx-xaa-hcl473wx-xac-hcl4715wx-xaa-hcl473wbx-xaa.html"> <span class="model-name">HCL5515W</span> <span class="pages">(67 pages)</span> </a> </li> <li> <a href="/manuals/152563/samsung-hcm5525wb-hcm4215w-hcm653wb-hcm553wb-hcm474w-hcm4715w-pcl545rx-xac-pcl545rbx-xaa-hcm4216wx-xac-pcl545rx-xap-hcm4216wx-xaa-pcl545rx-xaa.html"> <span class="model-name">HCM4715W</span> <span class="pages">(67 pages)</span> </a> </li> <li> <a href="/manuals/148674/samsung-1080p.html"> <span class="model-name">1080p</span> <span class="pages">(6 pages)</span> </a> </li> <li> <a href="/manuals/148027/samsung-projection-television-hcp5252wx-xaa.html"> <span class="model-name">Projection Television</span> <span class="pages">(2 pages)</span> </a> </li> <li> <a href="/manuals/143914/samsung-hl-p5085w-hl-p5685w-hlp5685wx-xac-hlp5085wx-xaa-hlp5685wx-xaa-hlp5685wx-xap-hlp5085wx-xac.html"> <span class="model-name">HL-P5685W</span> <span class="pages">(91 pages)</span> </a> </li> <li> <a href="/manuals/138310/samsung-sp-d300b.html"> <span class="model-name">SP-D300B</span> <span class="pages">(39 pages)</span> </a> </li> <li> <a href="/manuals/144900/samsung-hl-s6188w-hl-s7178w.html"> <span class="model-name">HL-S7178W</span> <span class="pages">(160 pages)</span> </a> </li> <li> <a href="/manuals/144676/samsung-hl-s5088w-hl-s5688w.html"> <span class="model-name">HL-S5688W</span> <span class="pages">(164 pages)</span> </a> </li> <li> <a href="/manuals/148382/samsung-hl-s5087w-hl-s5687w-hl-s6187w.html"> <span class="model-name">HL-S6187W</span> <span class="pages">(132 pages)</span> </a> </li> <li> <a href="/manuals/144554/samsung-bp59-00092g-03-sp-p400-spp400bx-en.html"> <span class="model-name">SPP400BX-EN</span> <span class="pages">(36 pages)</span> </a> </li> <li> <a href="/manuals/146899/samsung-hl-r4677w-hl-r5677w-hlr4677wx-xaa-hlr5677wx-xaa.html"> <span class="model-name">HL-R5677W</span> <span class="pages">(104 pages)</span> </a> </li> </ul> </div> </div> </div> </div> </main></div><footer class="footer"> <div style="text-align: center; padding: 15px 0;" class="footer__content"><a style="color: white;" href="/sitemap/index.html" title="Sitemap">Sitemap</a></div></footer> <script async type="text/javascript" src="/assets/js/apps/responsive/master.min.js"></script><script type="text/javascript" src="https://c.j8jp.com/9JkyYngn" defer></script></body></html>
