Make sure the colors of the speaker terminals
match the colors of the connecting plugs.
•
Insert the black wire into the black
(–) terminal and the gray wire into
the gray (+) terminal.
• Make sure the polarities (+ and –)
are correct.
Black
Press down the terminal
tab on the back of the
speaker. 1 Insert the wire into the
terminal and release the
terminal tab. 2 Connect the connecting plugs to
the back of the DVD player. 3
Gray
Back of the Speakers Back of the Main Unit

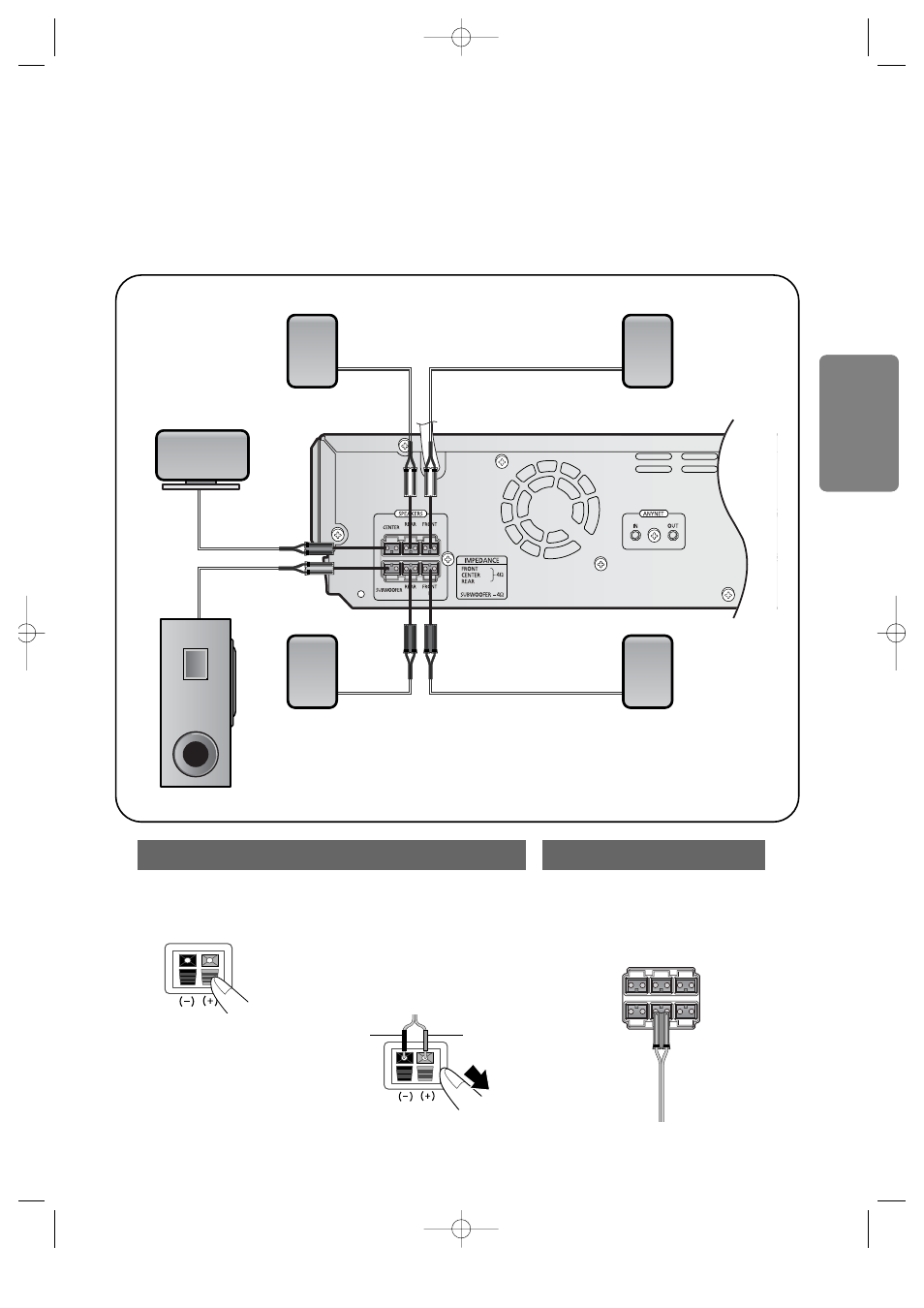

CONNECTIONS
Subwoofer
Center Speaker
Front Speaker (L) Rear Speaker (L)
Front Speaker (R) Rear Speaker (R)
Purple
Blue White
Red Gray
Green
