| 20
English
Connections

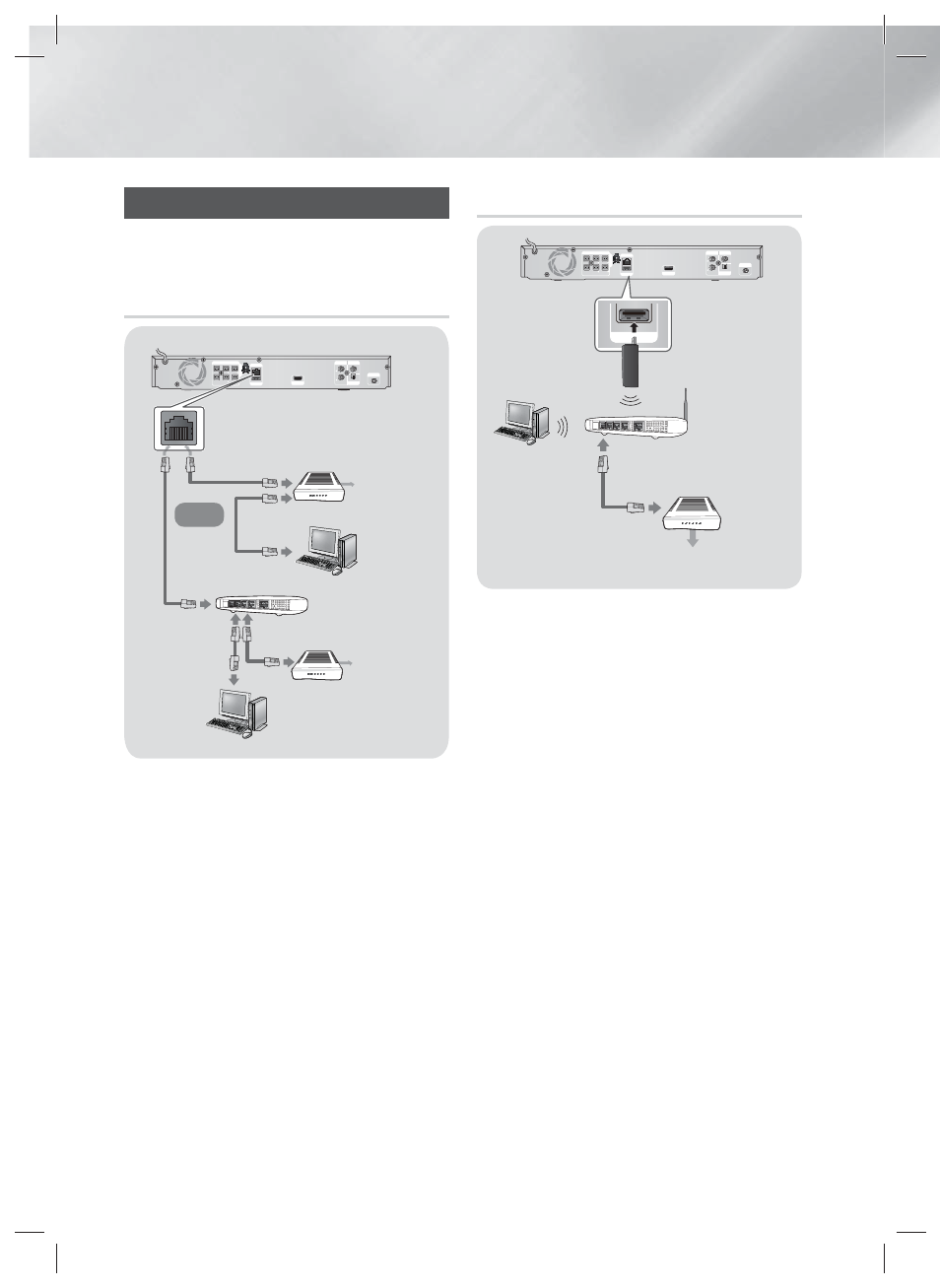

Connecting to a Network Router
You can connect your product to your network
router using one of the methods illustrated below.
Wired Network
5V 350mA
LAN
WIRELESS LAN HDMI OUT
AUX IN VIDEO OUT
OPTICAL
DIGITAL
AUDIO IN
FM ANT IMPEDANCE : 3
Ÿ SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT R SURROUND R
L
R
Broadband
service
Broadband
service
Broadband modem
(with integrated router)
Broadband
modem
Router
Or
| NOTE |
\ Internet access to Samsung’s Software Update server
may not be allowed, depending on the router you use or
your ISP’s policy. For more information, contact your ISP
(Internet Service Provider).
\ DSL users, please use a router to make a network
connection.
\ To use the AllShare Play function, you must connect your
PC to your network as shown in the illustrations on the
left.
The connection can be wired or wireless.
Wireless Network
5V 350mA
LAN
WIRELESS LAN HDMI OUT
AUX IN VIDEO OUT
OPTICAL
DIGITAL
AUDIO IN
FM ANT IMPEDANCE : 3
Ÿ SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT R SURROUND R
L
R
5V 350mA
WIRELESS LAN
Broadband
service
Wireless IP sharer
| NOTE |
\ This product is compatible with only Samsung's Wireless
LAN Adapter. (Model name: AK40-00051A).
\ You must use a wireless IP sharer that supports IEEE
802.11 a/b/g/n. (n is recommended for stable operation
of the wireless network.)
\ Wireless LAN, by its nature, may cause interference,
depending on the use condition (router performance,
distance, obstacles, interference by other radio devices,
etc).
\ Set the wireless IP sharer to Infrastructure mode. Ad-hoc
mode is not supported.
\ The home theater supports the following security
protocols only:
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, AES
\ For the AllShare Play function, a PC must be connected in
the network as shown in the figure.
