English
17 |
03
Connections

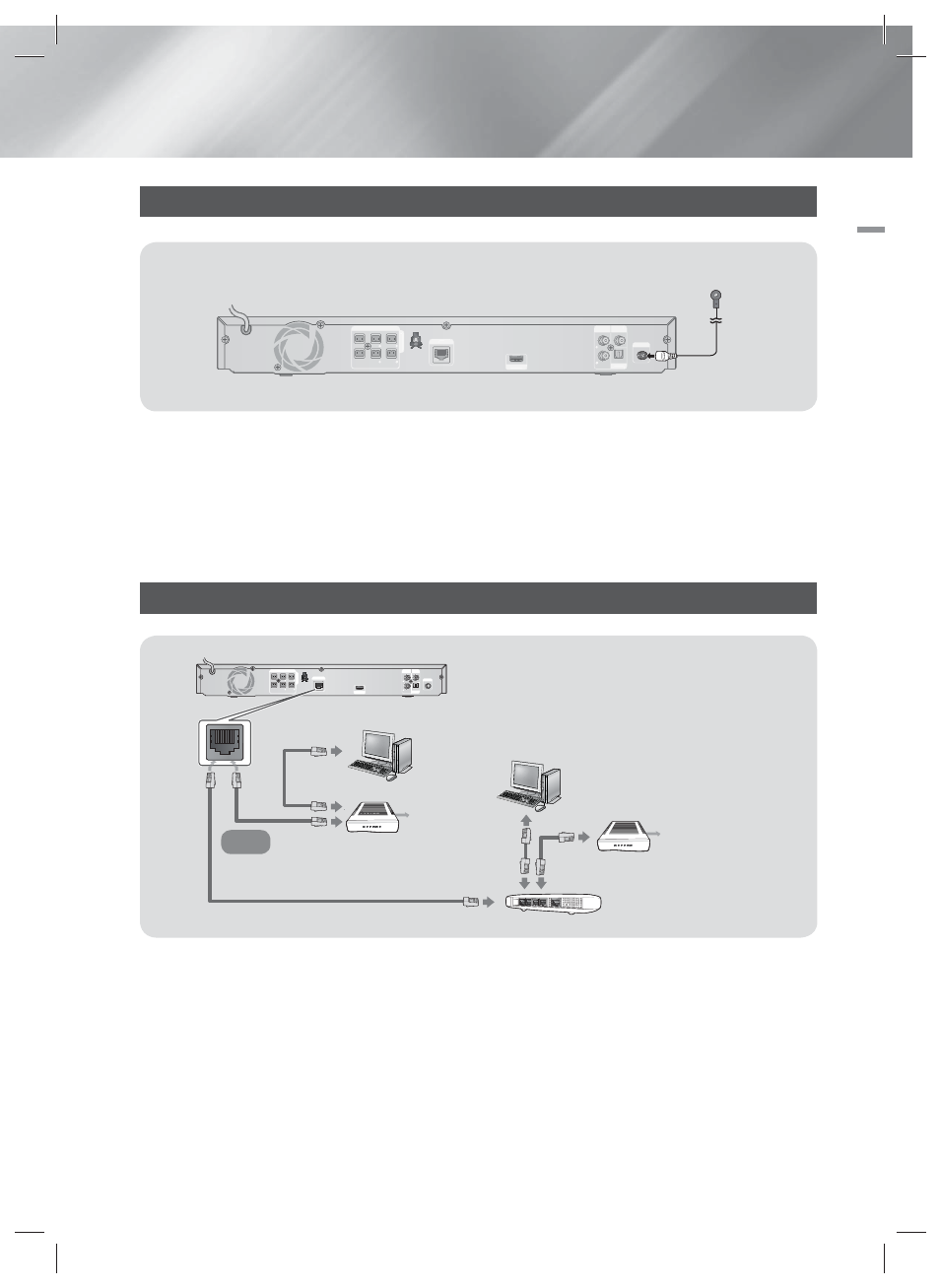

Connecting the FM Antenna
HDMI OUT
AUX IN VIDEO OUT
OPTICAL
DIGITAL AUDIO IN
IMPEDANCE : 3
Ÿ
SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT R SURROUND R
L
R
LAN
HDMI OUT
AUX IN VIDEO OUT
OPTICAL
DIGITAL AUDIO IN
IMPEDANCE : 3
Ÿ
SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT R SURROUND R
L
R
LAN FM ANT
FM Antenna (supplied)
1 . Connect the FM antenna supplied to the FM ANTENNA Jack.
2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
| NOTE |
\ This product does not receive AM broadcasts.
Connecting to a Network Router
| NOTE |
\ Internet access to Samsung’s software update server may not be allowed, depending on the router you use or your ISP’s
policy. For more information, contact your ISP (Internet Service Provider).
\ DSL users, please use a router to make a network connection.
\ For the AllShare function, a PC must be connected in the network as shown in the figure.
HDMI OUT
AUX IN VIDEO OUT
OPTICAL DIGITAL AUDIO IN
FM ANT IMPEDANCE : 3
Ÿ SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT R SURROUND R
L
R
LAN
Broadband
service
Broadband
service
Broadband
modem
Router
Or
Broadband modem
(with integrated router)
