Connecting a Camcorder

Connect a Video/Audio cable between the VIDEO or S-VIDEO/AUDIO input jacks on the TV
and the VIDEO or S-VIDEO/AUDIO output jacks on the camcorder.
(Note: For better video, use an S-VIDEO cable.)

Note

• Please be sure to match the color coded input terminals and cable jacks.

Viewing Tapes

1. Turn on your TV.

2. Turn on your camcorder and set it to video mode. (For details, refer to your camcorder

owner’s instructions.)

3. Press the SOURCE button to select “Video (AV1 or AV2)” or “S-Video (S-Video1 or S-Video2)”.

4. Set the IN/OUT switch on your camcorder to OUT.

5. Press the Play button on the camcorder.

How to Connect

Viewing camcorder playback

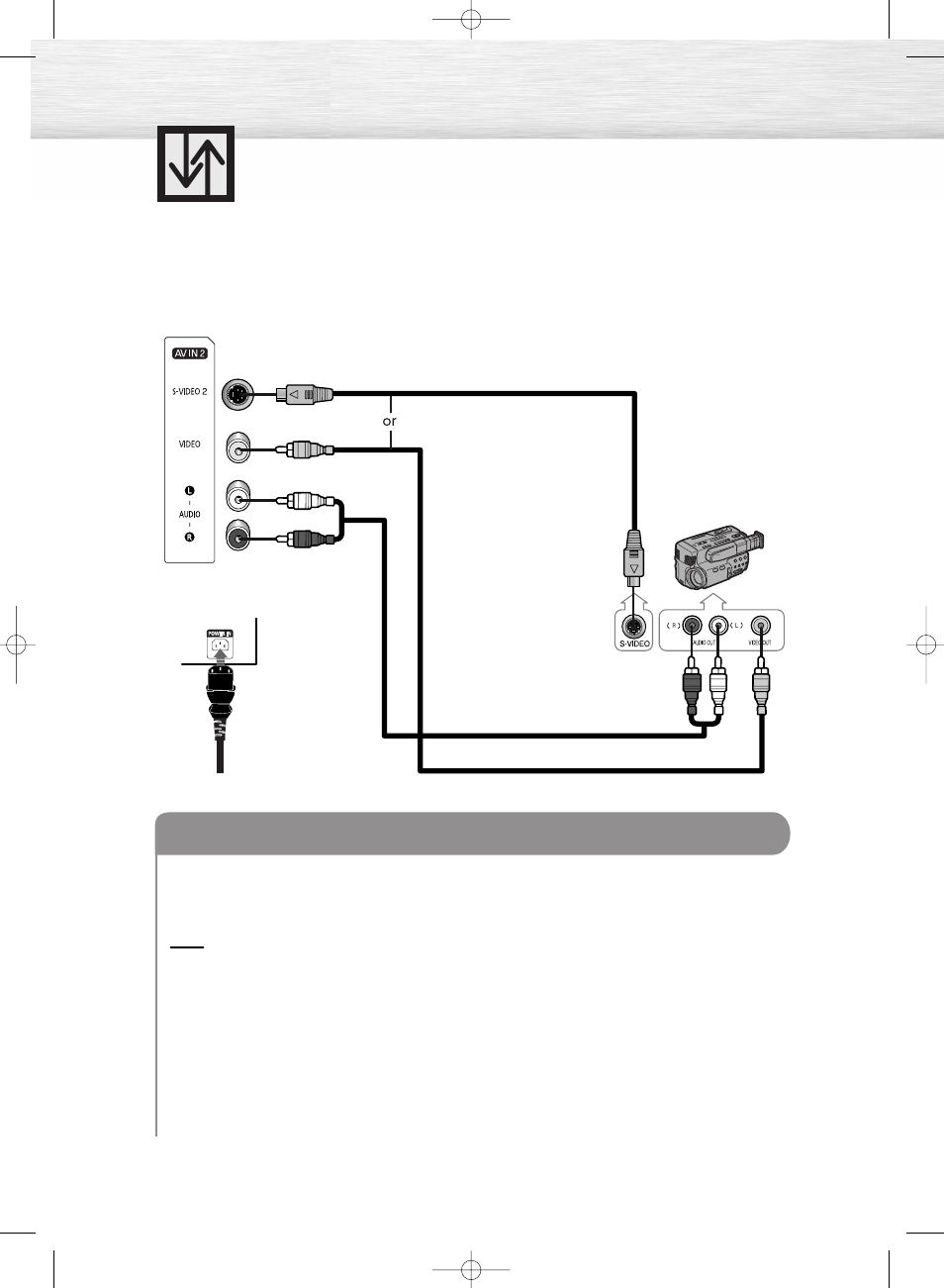

S-Video cable

Audio cable

Video cable

Camcorder

TV Rear Panel

Side of the TV

Power cord
