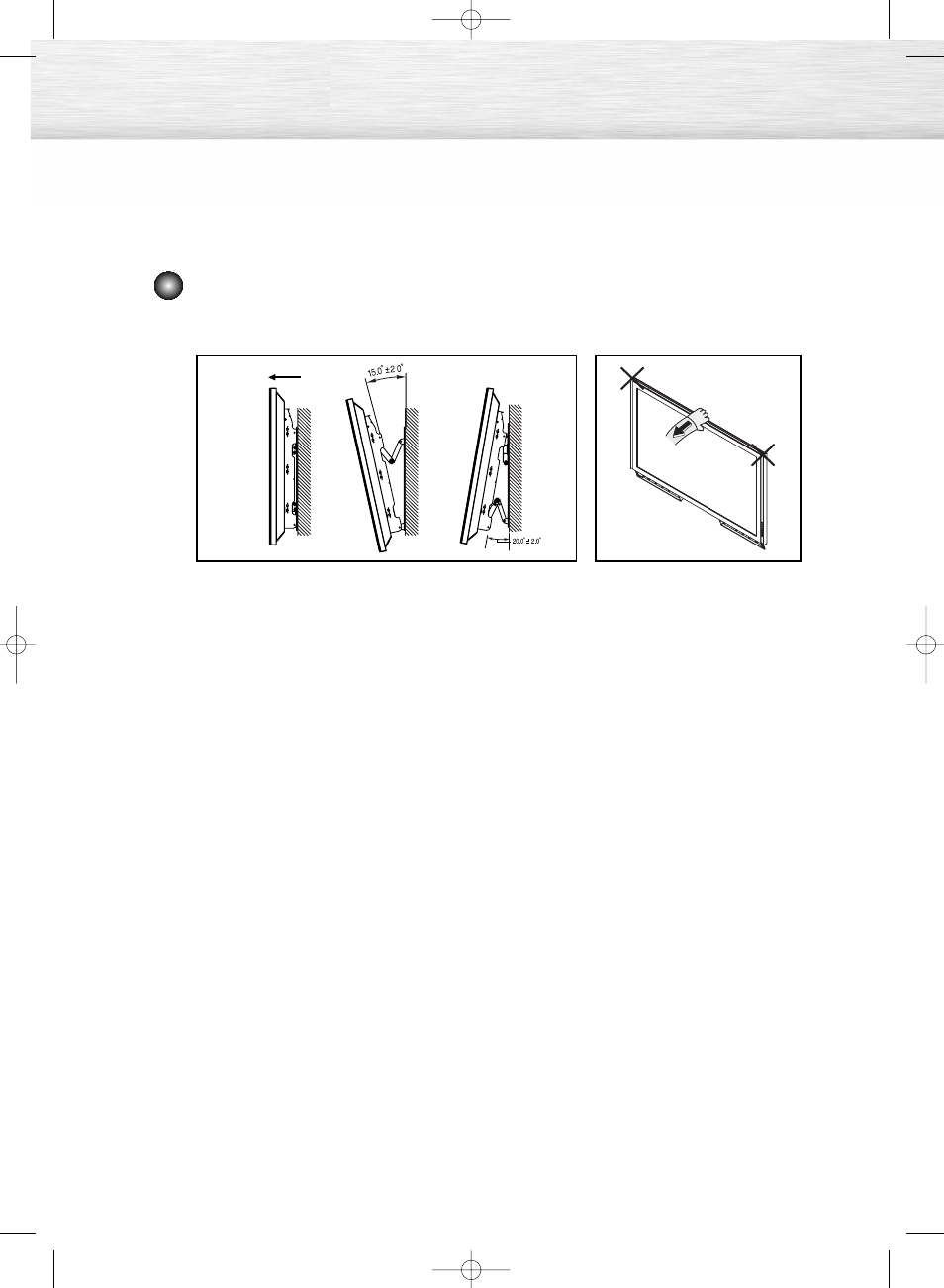

How to Adjust Mounting Angle

Note

Note : Adjust the bracket angle to 0° before installing it on the wall.

Make sure to use the top center,
and not the left or the right side of
the product to adjust the angle.

1. Fix the product to the wall bracket.

2. Hold the product at the top in the center and pull it

forward (direction of the arrow) to adjust the angle.
(See the figure to the right)

3. You can set the angle of the PDP panel as required by

adjusting the wall support between 0~15°(±2°) for the
upper part and between 0~20°(±2°) for the lower part.
