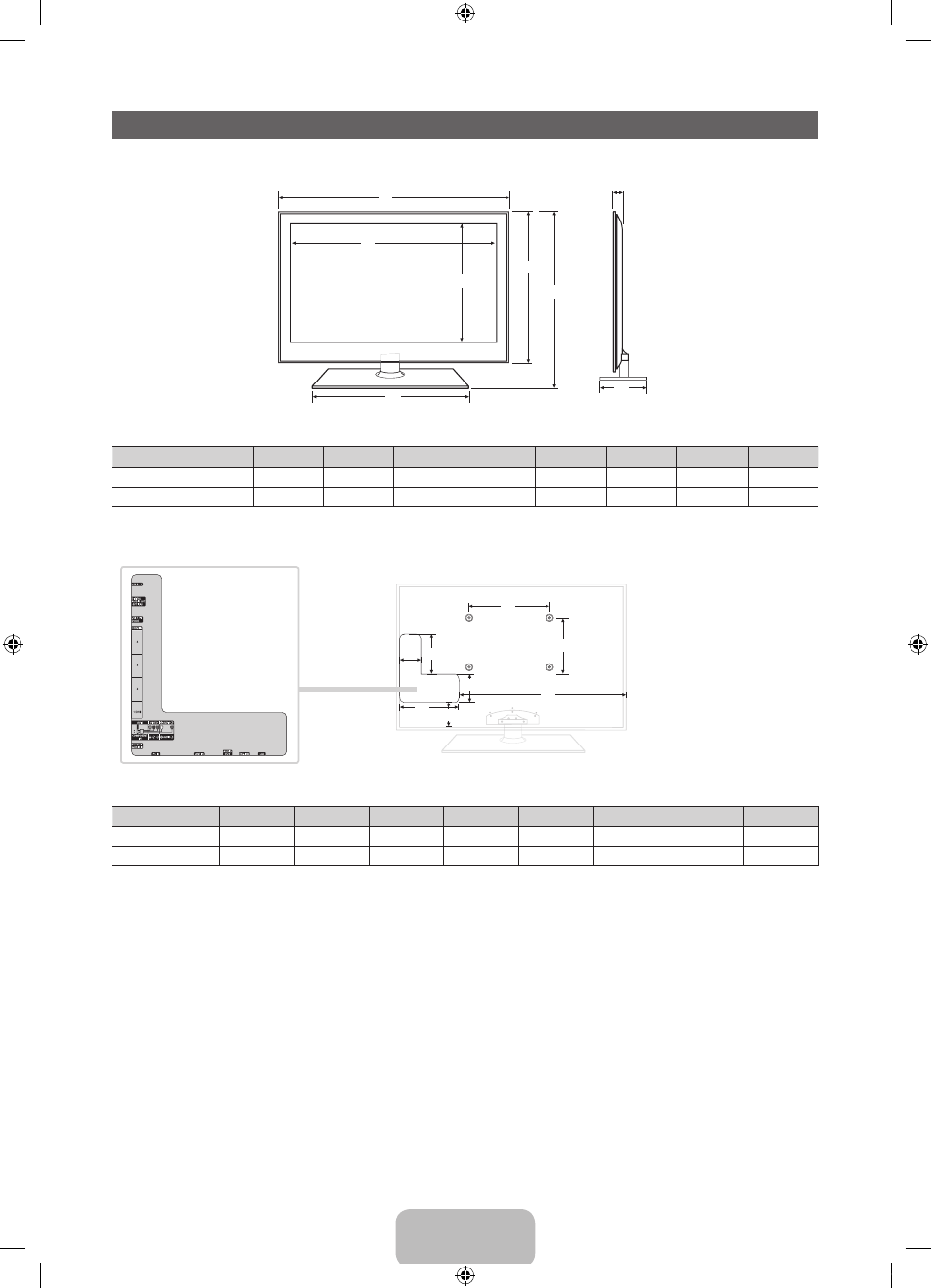

Dimensions
■ Front view / Side view
(Unit: inches)
Model name 1 2 3 4 5 6 7 8
UN32D5550 30.2 27.5 15.5 17.5 18.4 20.9 1.2 9.4
UN40D5550 37.6 34.9 19.7 18.9 22.6 25.1 1.2 10.0
■ Jack panel detail / Rear view
(Unit: inches)
Model name 1 2 3 4 5 6 7 8
UN32D5550 7.9 7.9 18.6 3.4 2.8 10.0 2.3 10.6
UN40D5550 7.9 7.9 22.3 3.5 5.9 10.7 4.4 13.8
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
