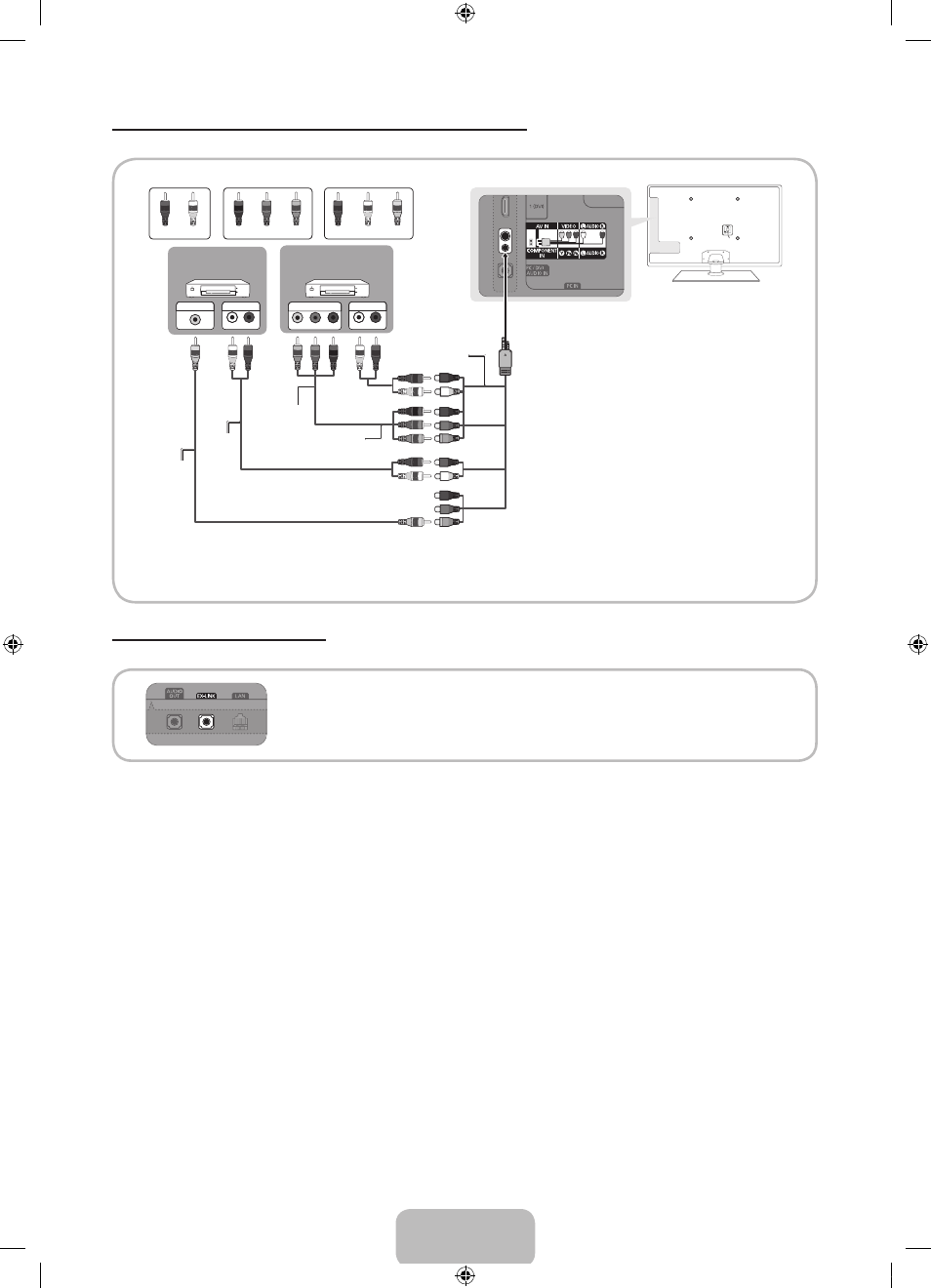

Using a Component (up to 1080p) or an Audio/Video (480i only) Cable
Available devices: DVD player, Blu-ray player, cable box, STB satellite receiver, VCR
✎
For better picture quality, we recommend the Component connection over the A/V connection.
✎
When connecting to AV IN , the color of the AV IN [VIDEO] jack (green) will not match the video cable (yellow).
Using an EX-Link Cable Connection
Available Devices: External devices that support EX-Link.
EX-LINK : Connector for service only.
R W Y R W R W G B R Y
VIDEO OUT AUDIO OUT
R-AUDIO-L P R P B G
COMPONENT OUT AUDIO OUT
R-AUDIO-L
R
R
W R W Y
Y
W
R
W
R G B
R
G
B
Device Device
Red White Red Red Blue White Green Yellow
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
Component Adapter
(Supplied)
