Installation and Connection
2-15 Connecting using a Video cable

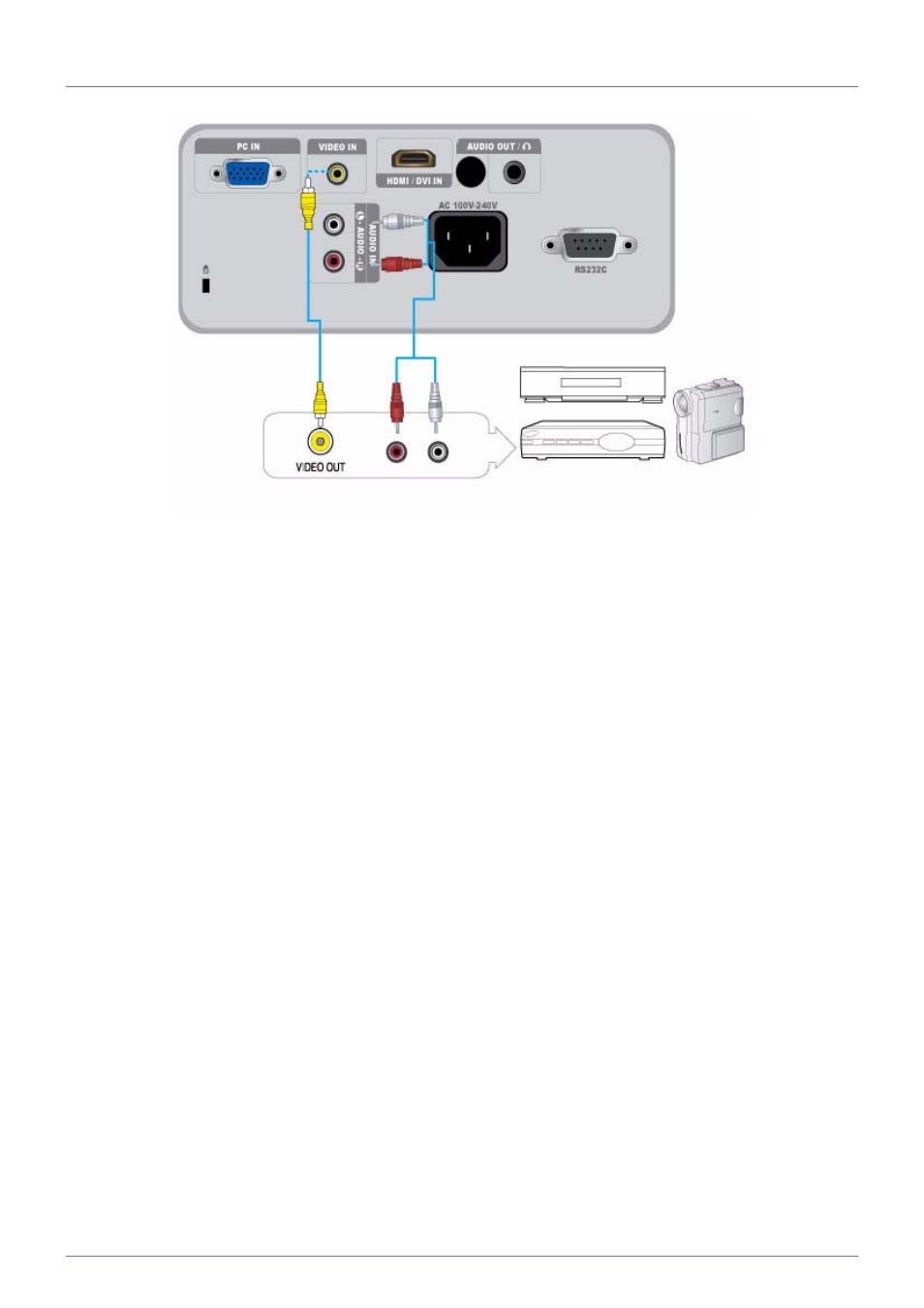

Make sure that the AV device and your projector are turned off.
1.
Connect the AV device to the
[VIDEO]
port using a VIDEO cable (not supplied).
- For supported input signal formats, see AV Timing (VIDEO) in section 2-8, "Supported Display Modes".
2.
Connect the [
AUDIO IN (L-AUDIO-R)
] terminal on the back of the projector and the Audio out terminal on your AV device
using an audio cable (Not supplied).
