Installation and Connection

2-13 Connecting an AV device using a D-Sub cable

Make sure that the AV device and your projector are turned off.

1.

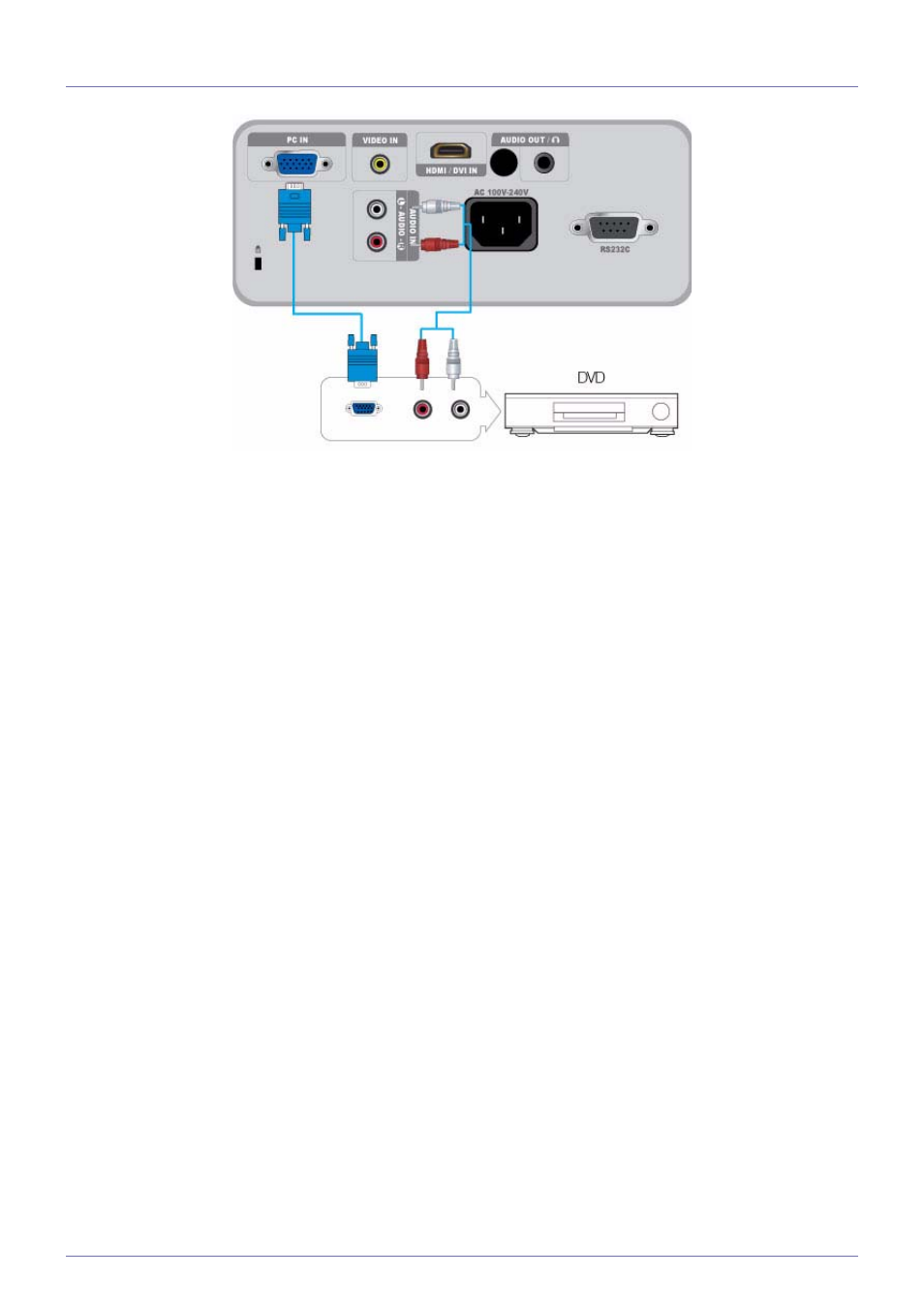

Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display
Modes".

2.

Connect the [

AUDIO IN (L-AUDIO-R)

] terminal at the back of the projector to the Audio out terminal of your AV device using an

audio cable (Not supplied).
