INST
ALLA
TION INSTR
UCTIONS

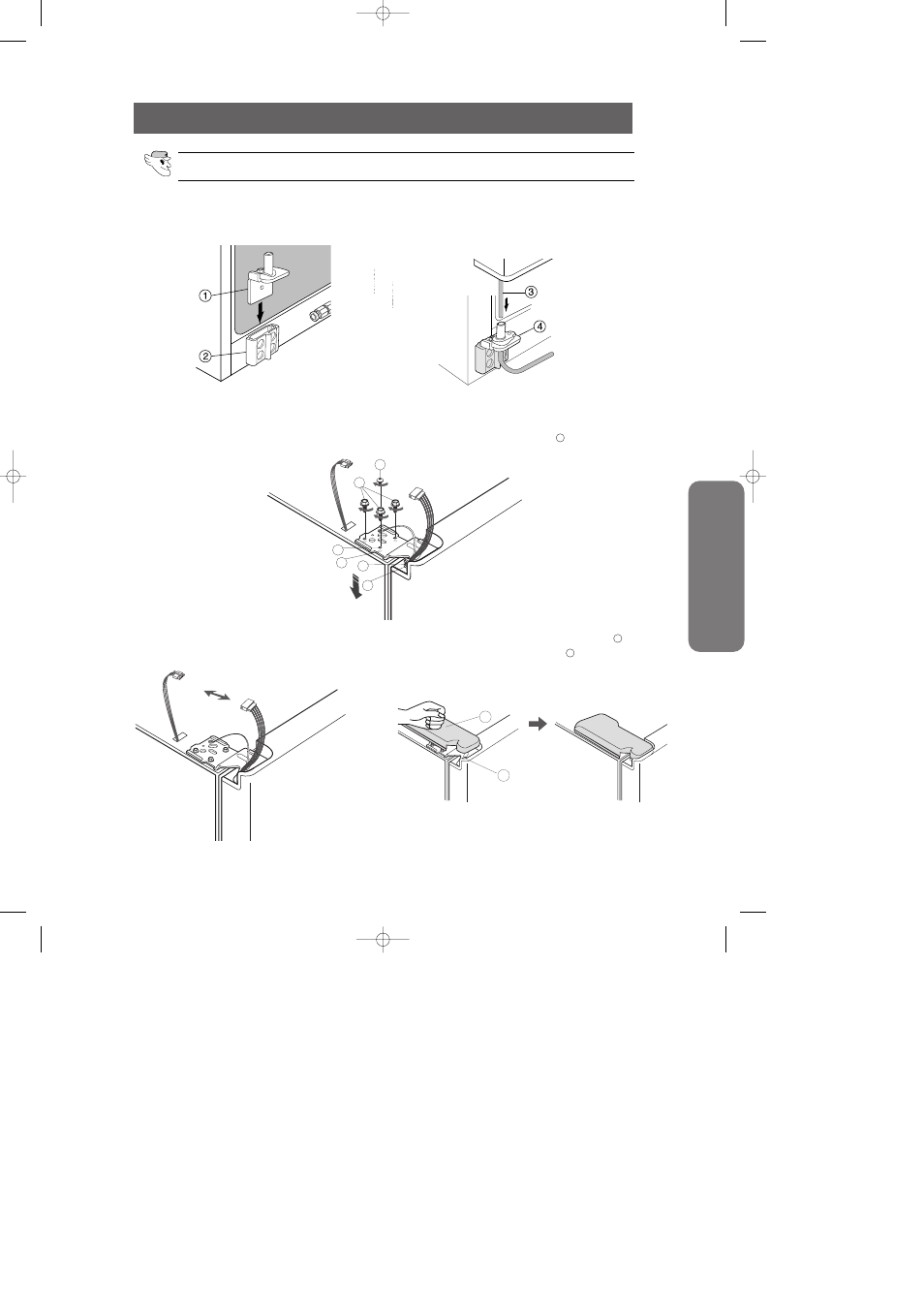

Reattaching the Freezer Door
REATTACHING THE REFRIGERATOR DOORS
4) Connect the wires. 5) Put the front part of the upper hinge cover ( ) on
the front part of the upper hinge ( ) and reattach
from the front part of the upper hinge cover first.
9
10
3) Insert the upper hinge shaft ( ➄) into the hole on the top of the door (➅). After levelling between the upper
hinge hole ( ➆) and cabinet hole (➇), reattach the hinge screws (⑨) and ground screw ( ) in a clockwise
direction.
9
10
10
1) Insert the lower hinge ( ➀) in the bracket lower
hinge ( ➁).
2) Before reattaching the freezer door, insert the
hose ( ➂) in the lower side of the door into the hole
in the lower hinge ( ➃) and pull the hose down.
Lower the door onto the lower hinge ( ➃).
DA68-01606A-0.0 9/2/06 10:48 AM Page 19
