18

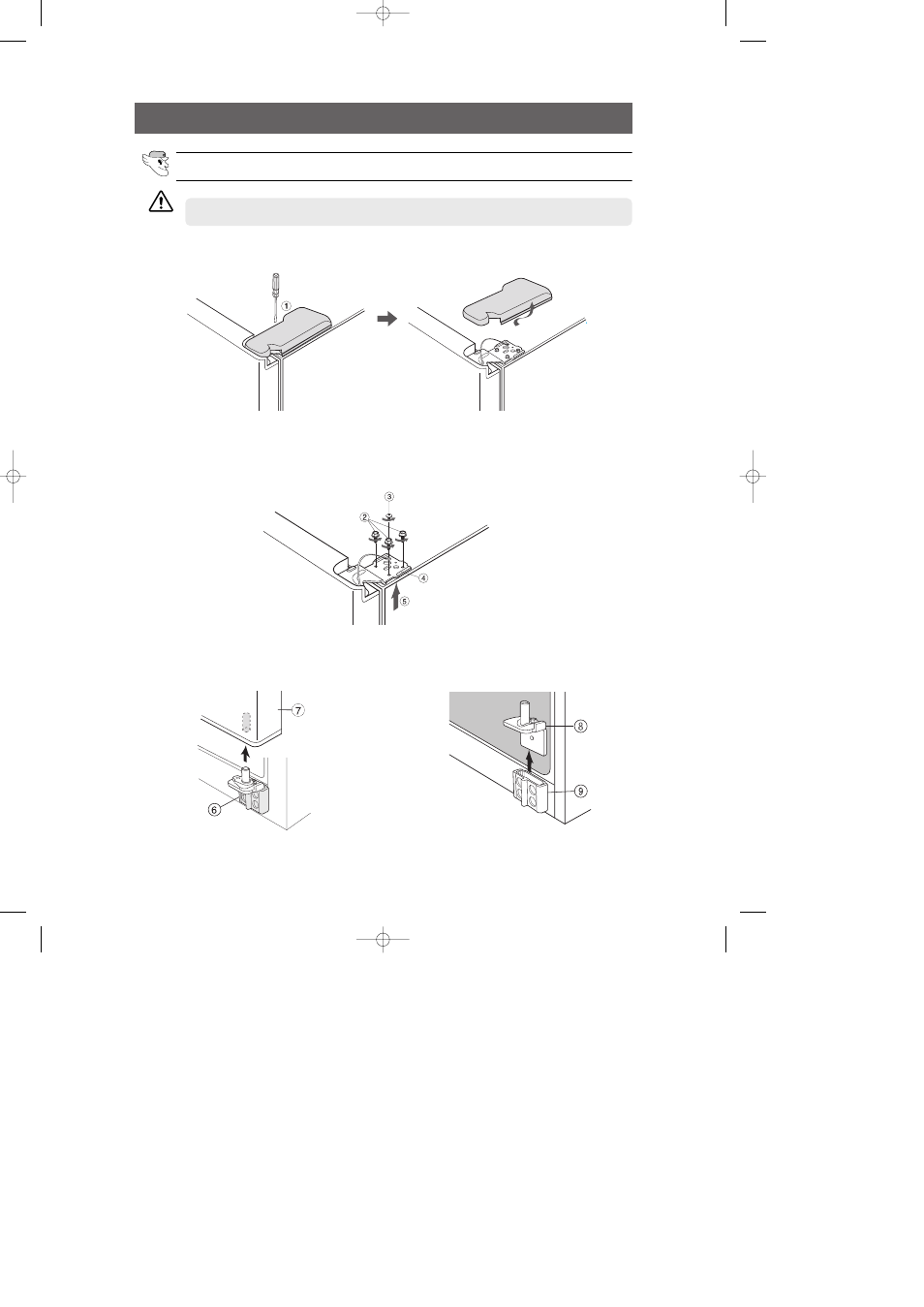

REMOVING THE REFRIGERATOR DOORS
3) Remove the door from the lower hinge ( ➅) by
lifting the door ( ➆).
4) Remove the lower hinge ( ➇) from the bracket
( ➈) by lifting the lower hinge (➇).
1) With the door closed, remove the upper hinge cover ( ➀) using a screwdriver
2) Remove hinge screws ( ➁) and ground screw (➂) counter-clockwise, and take off the upper hinge
( ④) in the direction of the arrow (➄). Be careful when removing the door to ensure that it does not
fall on you.
Removing the Fridge Door
CAUTION
Unplug the refrigerator before removing the doors.
DA68-01606A-0.0 9/2/06 10:48 AM Page 18
