Adsh-170 component identification rear view – American Dryer Corp. ADH-170 User Manual
Page 15
113247 - 3
www.amdry.com
15

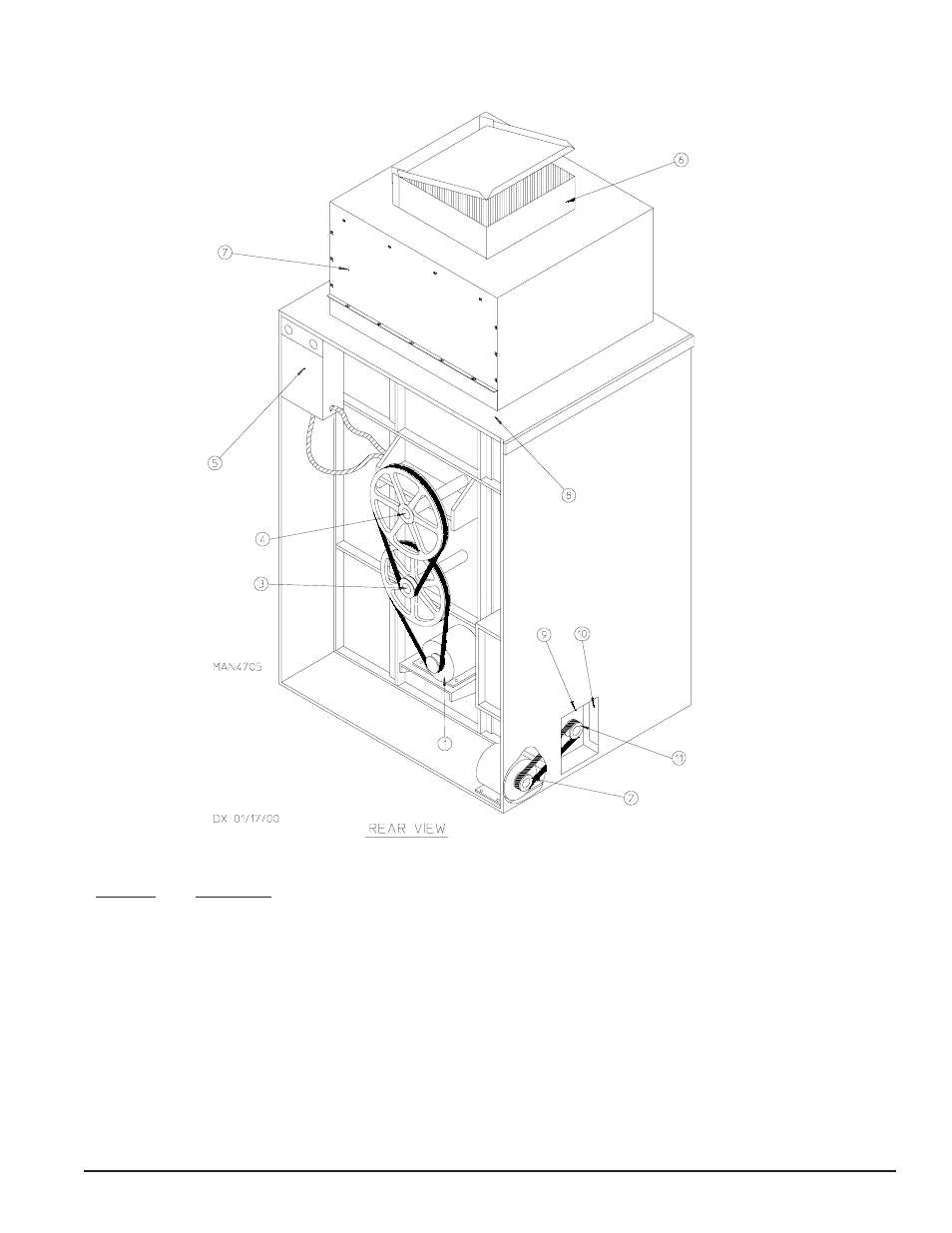

ADSH-170 Component Identification Rear View _____________________
Illus. No.
Description
1
Basket (Drive) Motor Assembly
2
Blower Motor Mount Assembly
3
Idler Bearing Mount Assembly
4
Tumbler Bearing Mount Assembly
5*
Electric Service Relay Box
6
Steam Damper
7
Filter Access Panel
8
1/8” Compressed Air Supply Inlet (Behind Gusset)
9
Side Access Opening
10
Front Access Opening
11
Impellor (Fan) Assembly
*
Electric service connections are made in this box for steam only.
