Page 10
10
American Dryer Corp.
113247 - 3

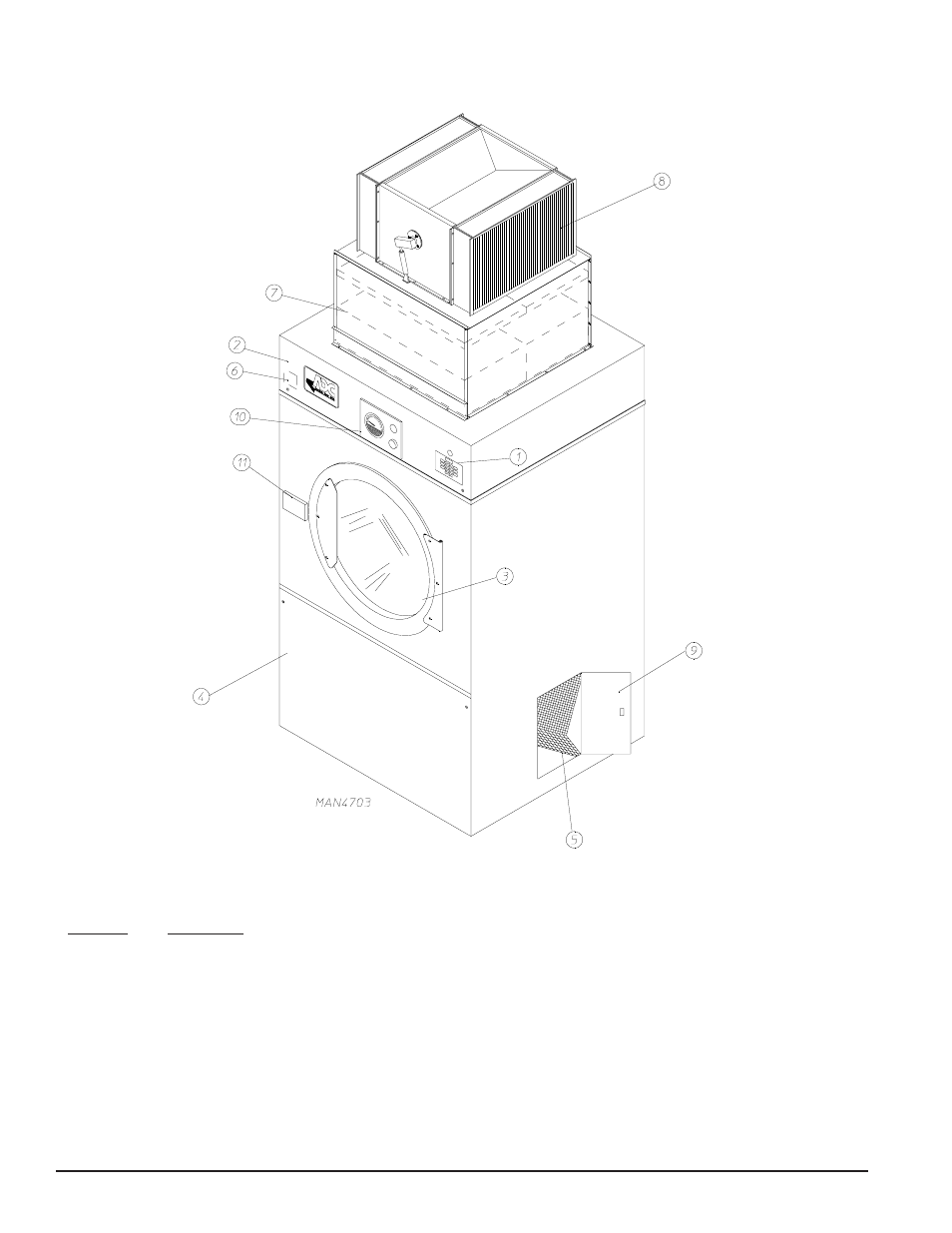

ADSH-120 Component Identification Front View ____________________
Illus. No.
Description
1
Microprocessor Control/Keypad Panel Assembly (Controls)
2
Control (Top Access) Door Assembly
3
Main Door Assembly
4
Lint Chamber Access Panel
5
Lint Screen
6
Wire Diagram (Located Behind Control Door)
7
Filter Housing Assembly
8
Steam Damper Assembly
9
Lint Door
10
Differential Pressure Gauge and High Temp Alarm Panel
11
Door Interlock
