English -

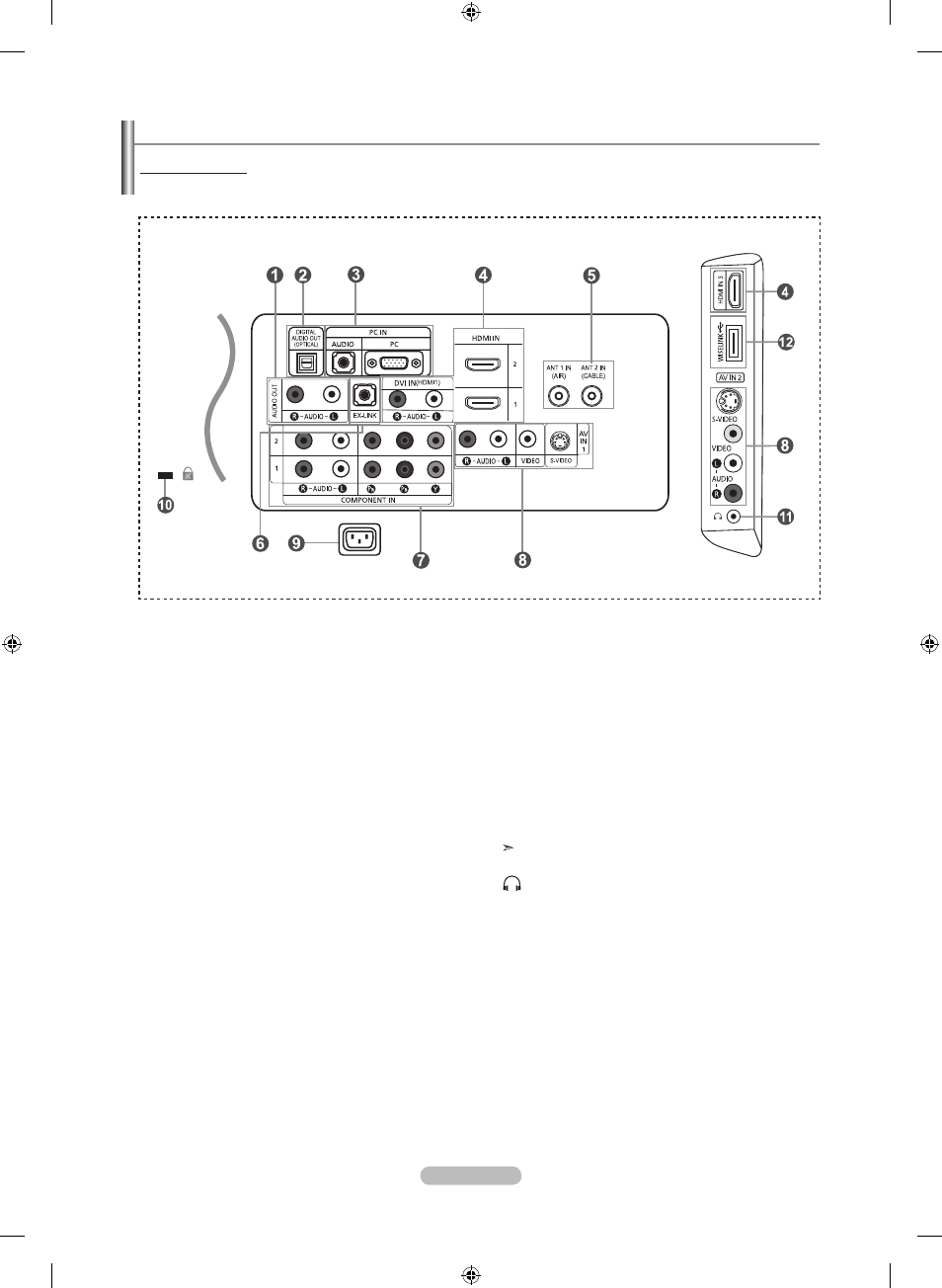

Viewing the Connection Panel
Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players.
For more information on connecting equipment, see pages 6-11.
1 AUDIO OUT
Connects to the audio input jacks on your Amplifier/
Home theater.
2
DIGITAl AUDIO OUT (OPTICAl)
Connects to a Digital Audio component.
3
PC In
Connects to the video and audio output jacks on
your PC.
4 hDmI In ,, / DVI In(hDmI) (AUDIO R/l)
Connects to the HDMI jack of a device with an HDMI output.
Use the HDMI IN 1 jack for a DVI connection to an
external device.
Use a DVI to HDMI cable or DVI-HDMI adapter
(DVI to HDMI) for video connection and the
DVI IN (HDMI1) ‘R-AUDIO-L’ jacks for audio.
- No sound connection is needed for an HDMI to HDMI
connection
- When using an HDMI/DVI cable connection, you must use
the HDMI IN 1 jack.
5
AnT In / AnT In
Connects to an antenna or cable TV system.
6
Ex-lInK
Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing angle
using your remote control.
7 COmPOnEnT In ,
Connects Component video/audio.
8
AV In / AV In
Video and audio inputs for external devices, such as a
camcorder or VCR.
S-VIDEO
Connects an S-Video signal from a camcorder or VCR.
9
POWER InPUT
Connects the supplied power cord
0
KEnSInGTOn lOCK
The Kensington lock (optional) is a device used to
physically fix the system when used in a public place.
If you want to use a locking device, contact the dealer
where you purchased the TV.
The location of the Kensington Lock may be different
depending on its model.
!
hEADPhOnE
Connects a set of external headphones for private
listening.
@
WISElInK
Connect a USB mass storage device to view photo files
(JPEG) and play audio files (MP3).
[Side Panel Jacks]
