1
ENg
●
CONNECTIONS

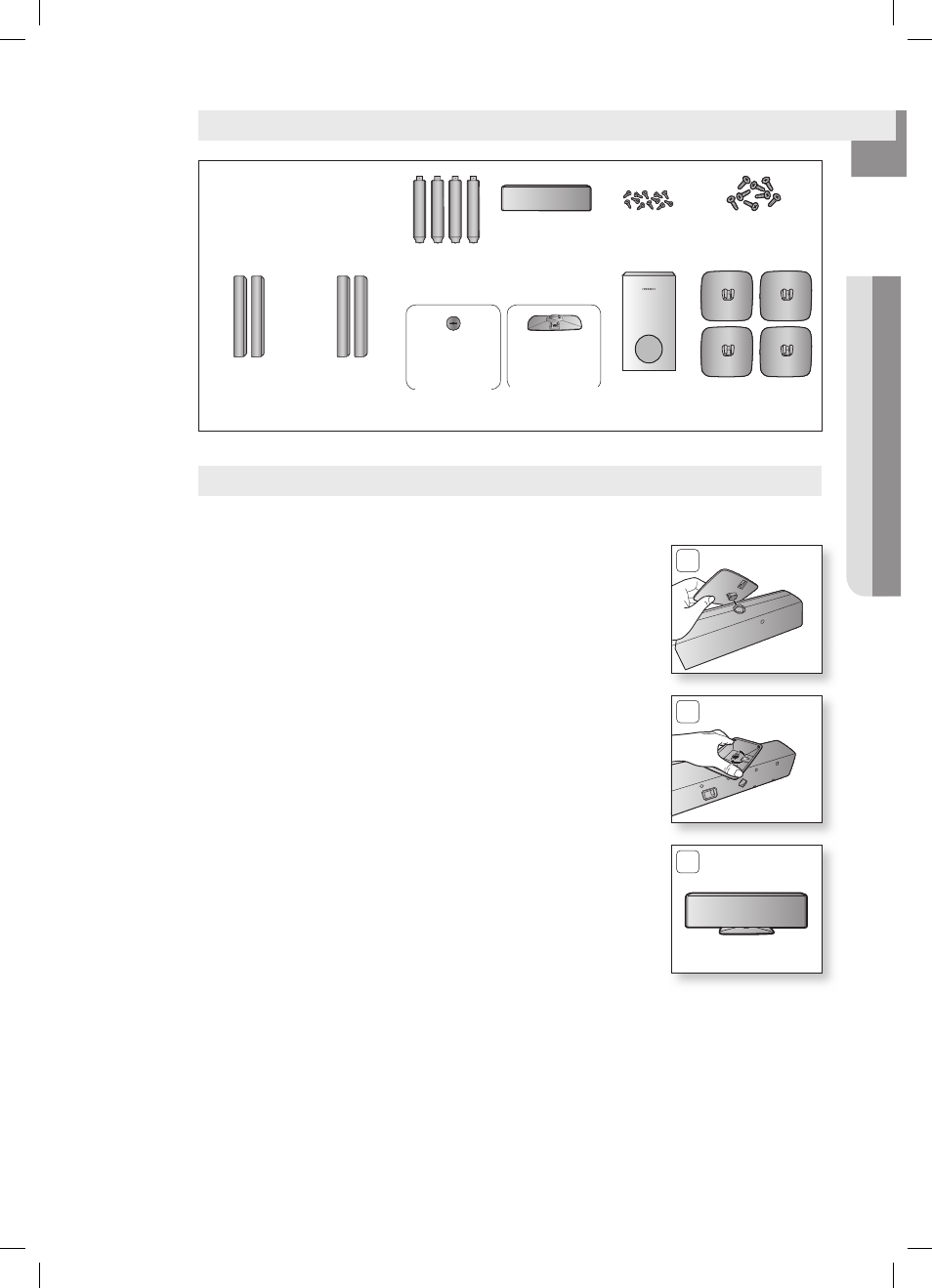

Speaker Components
SubWooFer
(aH81-03846D) StanD baSe
(aH81-03846p)
Front
L (aH81-03846e)
r (aH81-03846S)
SCREW (Large): 8EA
(aH81-03943a)
SCREW (Small): 12EA
(aH81-03944a)
CRADLE STAND/
WALL MOUNT
CENTER
(aH81-03469a)
CENTER
(aH81-03853a)
HoLe CoVer
(L) (r)
StanD
(aH81-03846n)
Center
(aH81-03846F)
rear
L (aH81-03846G)
r (aH81-03846t)
(L) (r)
Installing the Cradle Stand (Center speaker)
1. Insert the stand so that it fi ts into the hole as described in the fi gure.
2. Turn the stand clockwise to lock it.
(Turning it counter-clockwise will loosen from the hole.)
3. This is the completion of the stand installation.
1
3
