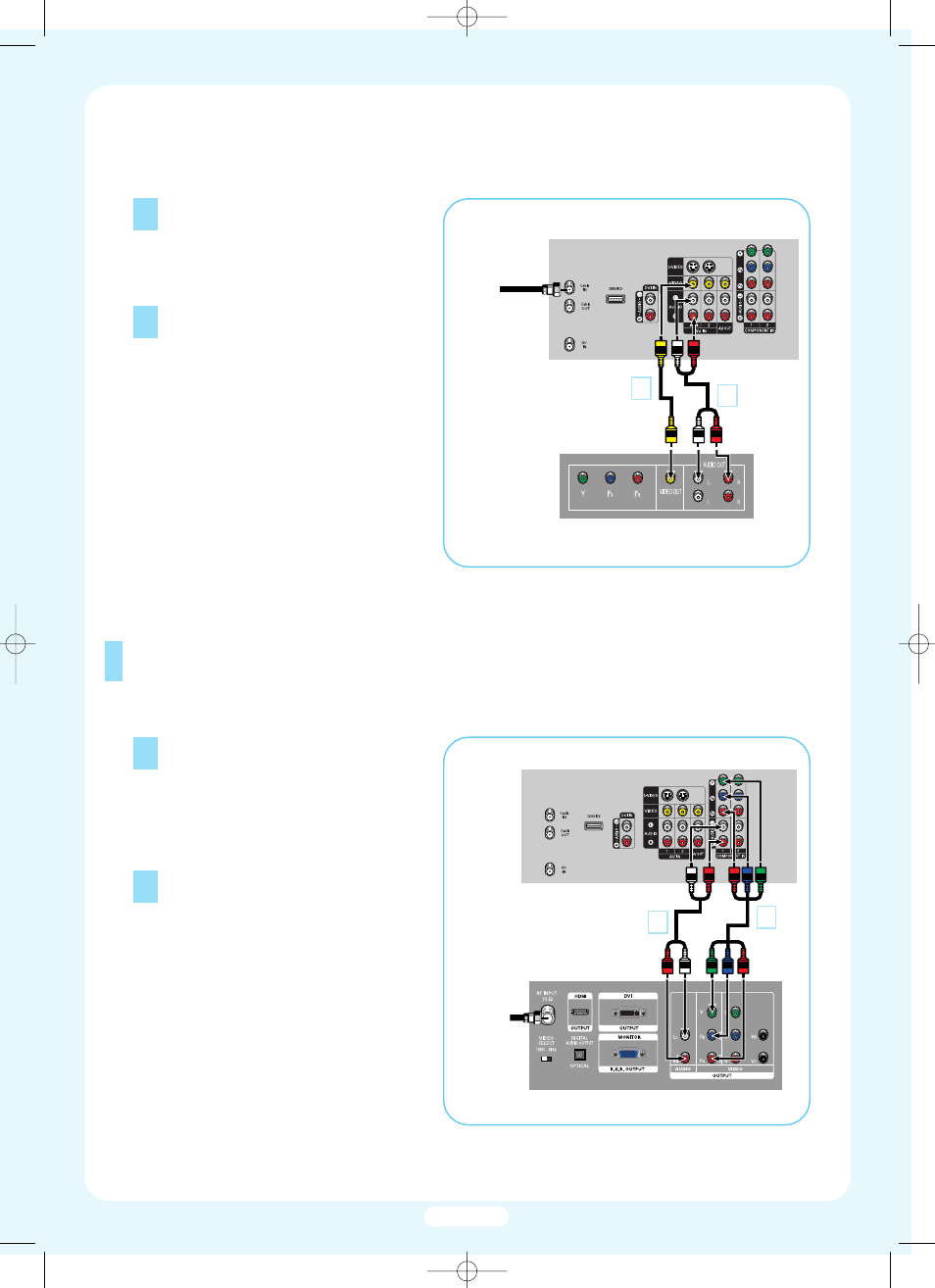

Connecting a DTV Set-Top Box
1
2
Connect a set of audio cables
between the Audio in (1 or 2) jacks on
the TV and the AUDIO OUT jacks on
the DVD player.
Connect a video cable between the
VIDEO IN (1 or 2) jack on the TV and
the VIDEO OUT jack on the DVD
player.
Connecting to Audio and Video Jacks
1
2
Connect a set of audio cables
between the COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on the TV
and the AUDIO OUT jacks on the
Set-Top Box.
Connect a set of video cables
between the COMPONENT (1 or 2)
VIDEO (Y, P
B
, P
R
) IN jacks on the
TV and VIDEO (Y/P
B
/P
R
or Y/C
B
/C
R
)
OUT jacks on the Set-Top Box.
Note: For an explanation of
Component video, see your
Set-Top Box owner's manual.
Connecting to Y, P
B
, P
R
Incoming
Cable or
Antenna
TV Rear Panel
DTV Set-Top Box
1
2
Incoming
Cable or
Antenna
TV Rear Panel
DVD Player
2
1
English-6
