Dimensions – Samsung PN51D8000FFXZA User Manual
Page 25
English - 25

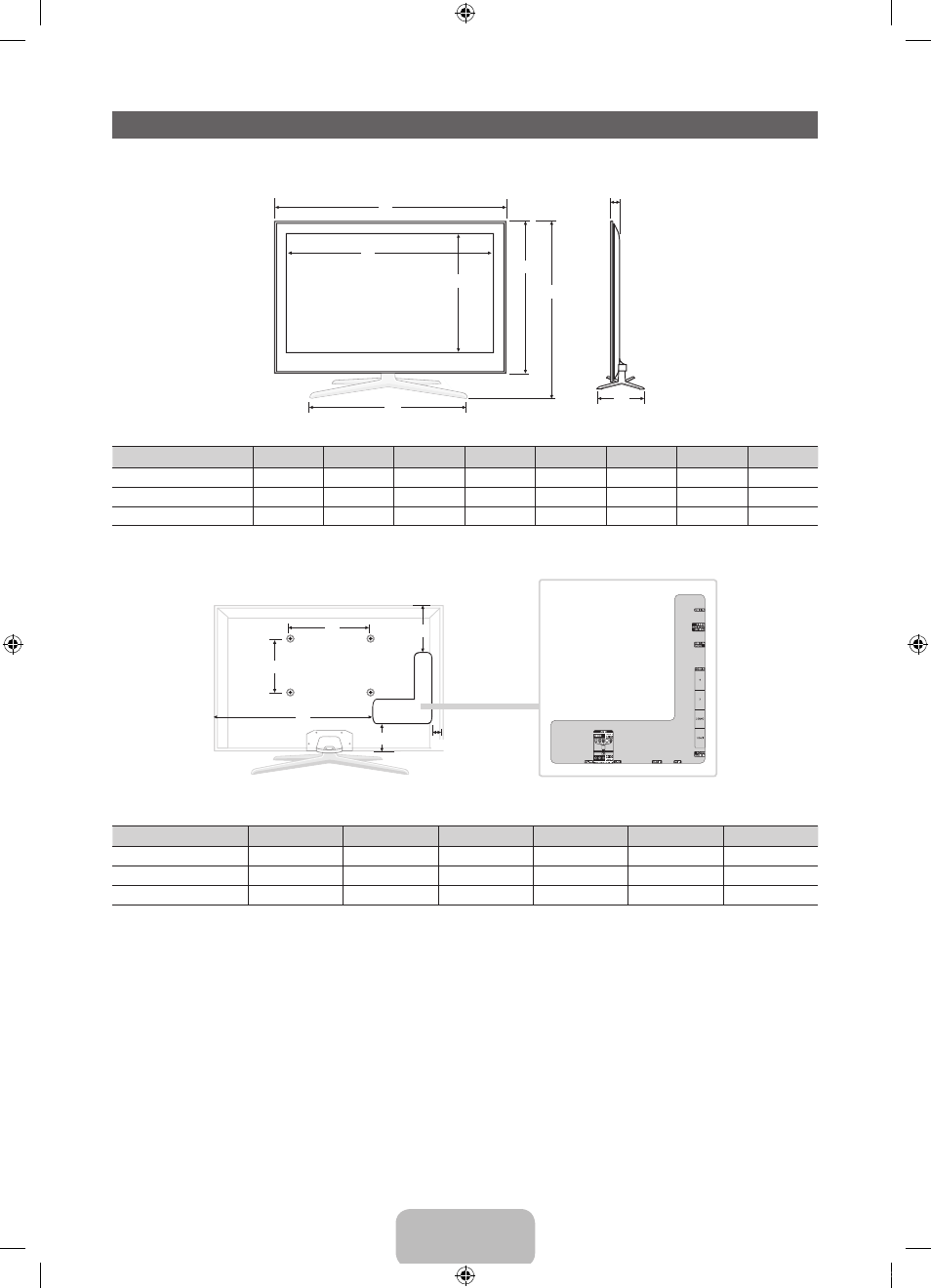

Dimensions
■
Front view / Side view
(Unit: inches)
Model name
1
2
3
4
5
6
7
8
PN51D8000
47.1
44.6
25.0
28.0
28.3
31.6
1.5
12.2
PN59D8000
54.3
51.8
29.2
32.3
32.6
36.1
1.5
13.8
PN64D8000
58.6
56.1
31.7
32.3
35.0
38.6
1.5
13.8
■
Jack panel detail / Rear view
(Unit: inches)
Model name
1
2
3
4
5
6
PN51D8000
15.7
15.7
32.1
2.6
4.3
10.5
PN59D8000
23.6
15.7
39.5
3.1
5.0
14.7
PN64D8000
23.6
15.7
42.1
5.2
6.7
16.1
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
