English
19 |
03
Connections

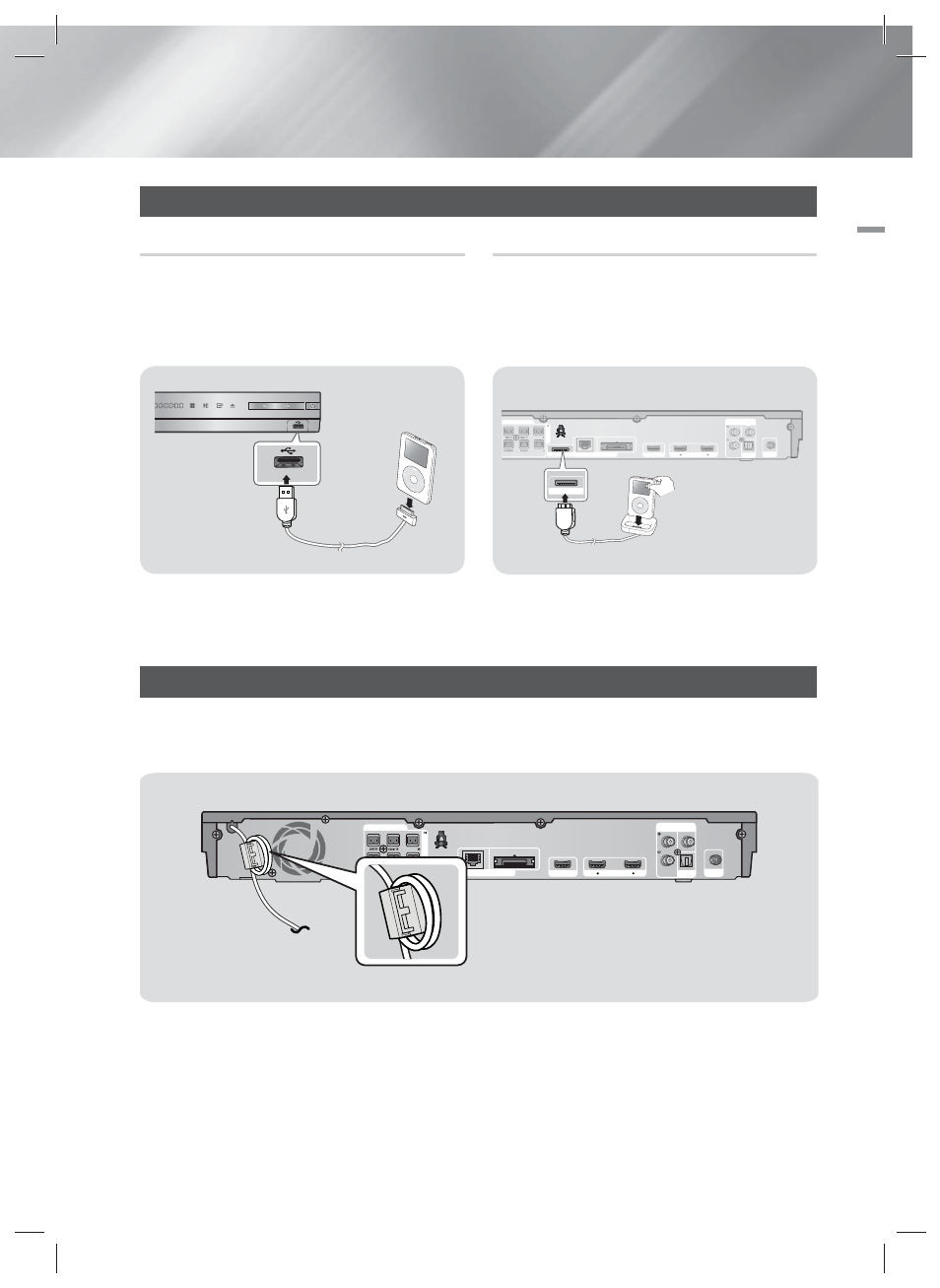

Connecting to an iPod/iPhone
Using a USB Cable
Connect an iPod/iPhone using the USB cable to
the front USB port.
5V 500mA
5V 500mA
Using a Dock
To view a video from your iPod on your TV, you
must also connect the Video Out jack on the
product to the Video In jack on your TV.
See page 20.
LAN iPod WIRELESS
IMPEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND OPTICAL
VIDEO OUT AUX IN
DIGITAL AUDIO IN FM ANT HDMI IN 1 2 HDMI OUT LAN WIRELESS
IMPEDANCE :
3
SPEAKERS OUT
SURROUND
SURROUND OPTICAL
VIDEO OUT OU AUX IN
DIGITAL AUDIO IN N FM ANT HDMI IN 1 2 HDMI OUT
iPod
| NOTE |
\ Make sure to connect the dock connector so that the label “ ” faces upward.
Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit
If you attach a Toroidal ferrite core to the power cord of the main unit, it will help to prevent RF
interference from radio signals.
LAN iPod WIRELESS
IMPEDANCE : 3
SPEAKERS OUT
SURROUND
SURROUND OPTICAL
VIDEO
OUT
AUX
IN
DIGITAL
AUDIO IN FM ANT HDMI IN 1 2 HDMI OUT
1. Pull the fixing tab of the Toroidal ferrite core to open it.
2. Make a loop twice in the main unit power cord.
3. Attach the Toroidal ferrite core to the main unit power cord as the figure shows and press it until it clicks.
