Connections
Connecting the Video Out to your TV
Choose one of the two methods for connecting to a TV.
FM ANT
DIGITAL
AUDIO IN
OPTICAL
SURROUND SUBWOOFER SURROUND
SPEAKERS OUT
HDMI OUT
AUX IN 2 VIDEO
OUT
FA NET
(Only For Service)

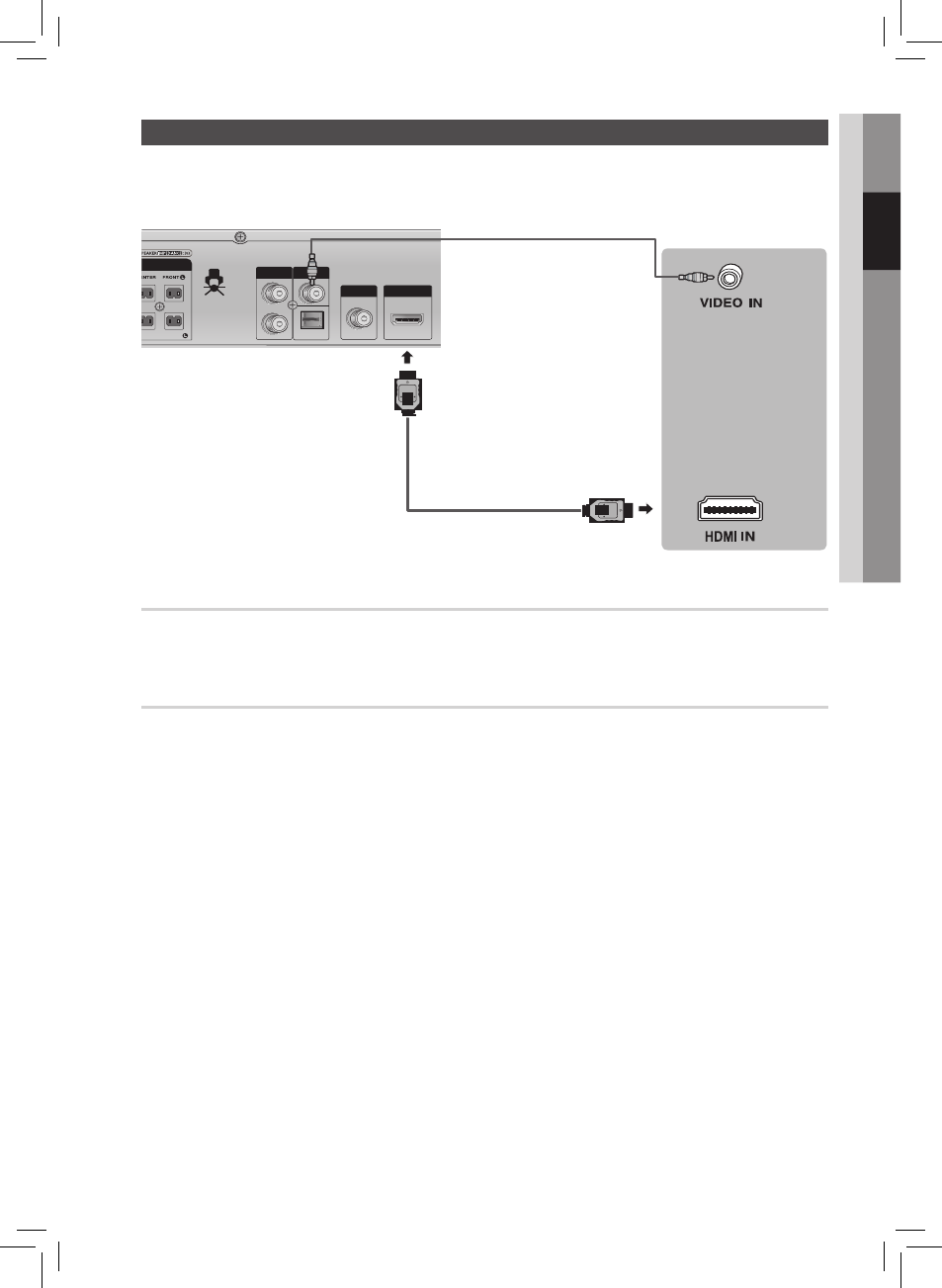

METHOD 1 : HDMI
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN
jack on your TV.
METHOD 2 : Composite Video
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack
on your TV.
✎
NOTE
` Resolutions available for the HDMI output are 480p, 720p,1080i/1080p. See page 22 for the resolution setting.
` This product operates in Interlace scan mode 480i for composite output.
` After making the video connection, set the Video input source on your TV to match the corresponding Video
output (HDMI or Composite) on your product.
Turn this product on first before you set the video input source on your TV. See your TV owner's manual for
more information on how to select the TV's Video Input source.
!
CAUTION
` Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright
protection systems and the picture will be distorted on the television.
METHOD1
METHOD2 (supplied)
