I N S TA L L AT I O N
18

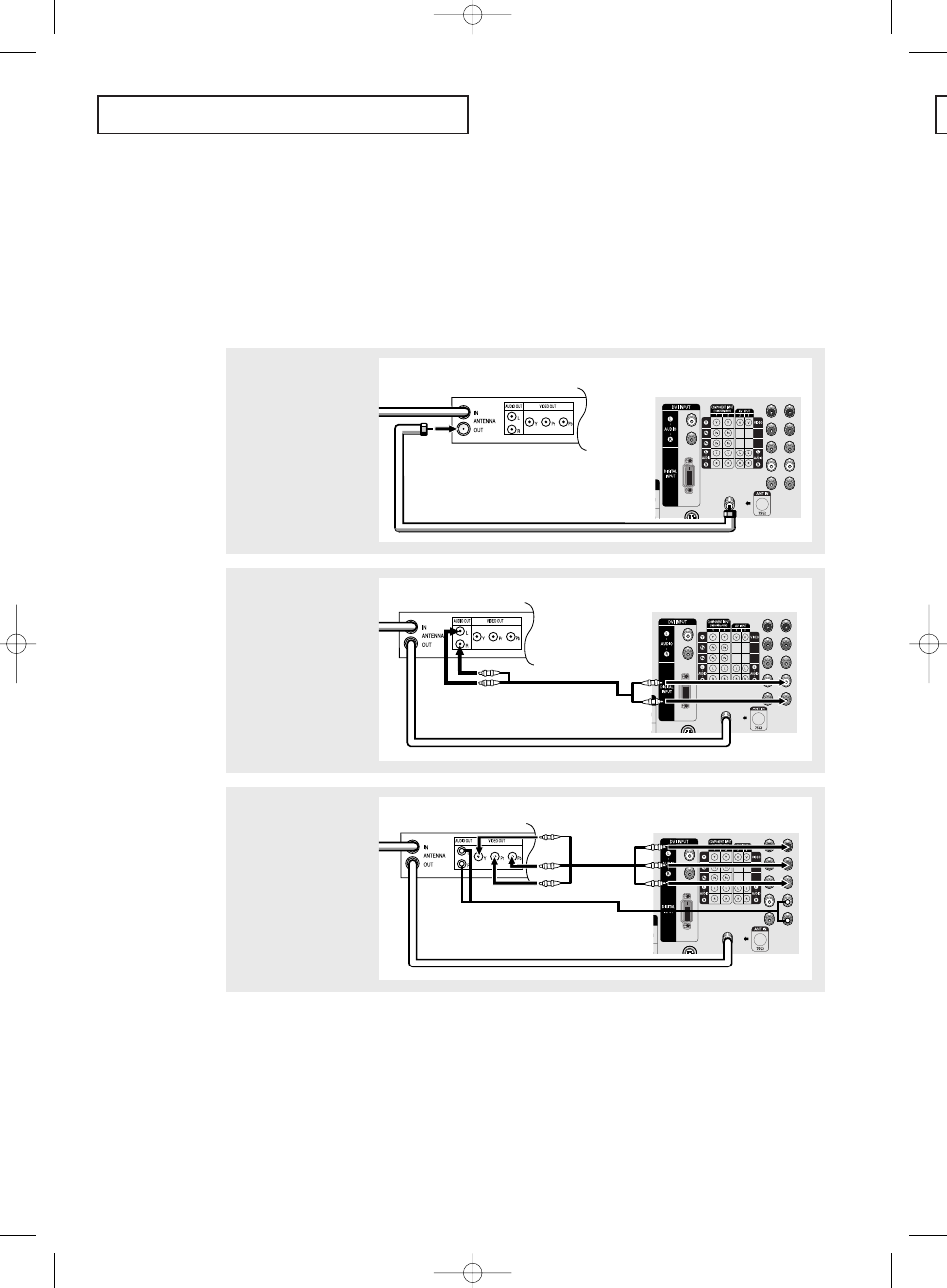

Connecting a Digital TV Set-Top Box
(480p/1080i)
Connecting to Y,P
B
,P
R
Connect the Y, P
B
, and P
R
video outputs of the set-top box to their corresponding inputs
on the TV. Next, connect the Left and Right audio from the set-top box to the corre-
sponding L and R terminals on the TV. (The connections for a typical set-top box are
shown below.)
1
Connect a coaxial cable
between the ANTENNA
OUT terminal on the Set
Top Box and the antenna
terminal on the TV.
Note: For detailed information, refer to the Set Top Box instruction manual.
Set Top Box Rear Panel
Coaxial Cable
TV Rear Panel
2
Connect a set of audio
cables between the COM-
PONENT INPUT 2 (L, R) or
COMPONENT INPUT 1 (L,
R) jacks on the TV and the
AUDIO OUT jacks on the
Set Top Box. Set Top Box Rear Panel
Audio Cable
3
Connect a video cable
between the COMPO-
NENT INPUT 2 (Y, P
B
, P
R
)
or COMPONENT INPUT 1
(Y, P
B , P R ) jacks on the TV
and the VIDEO OUT (Y, P
B
,
P
R
) jacks on the Set Top
Box.
Video Cable
TV Rear Panel TV Rear Panel
Set Top Box Rear Panel TV Rear Panel
