Samsung TXP3266X-XAA - Manual (Page 17)

I N S TA L L AT I O N
17

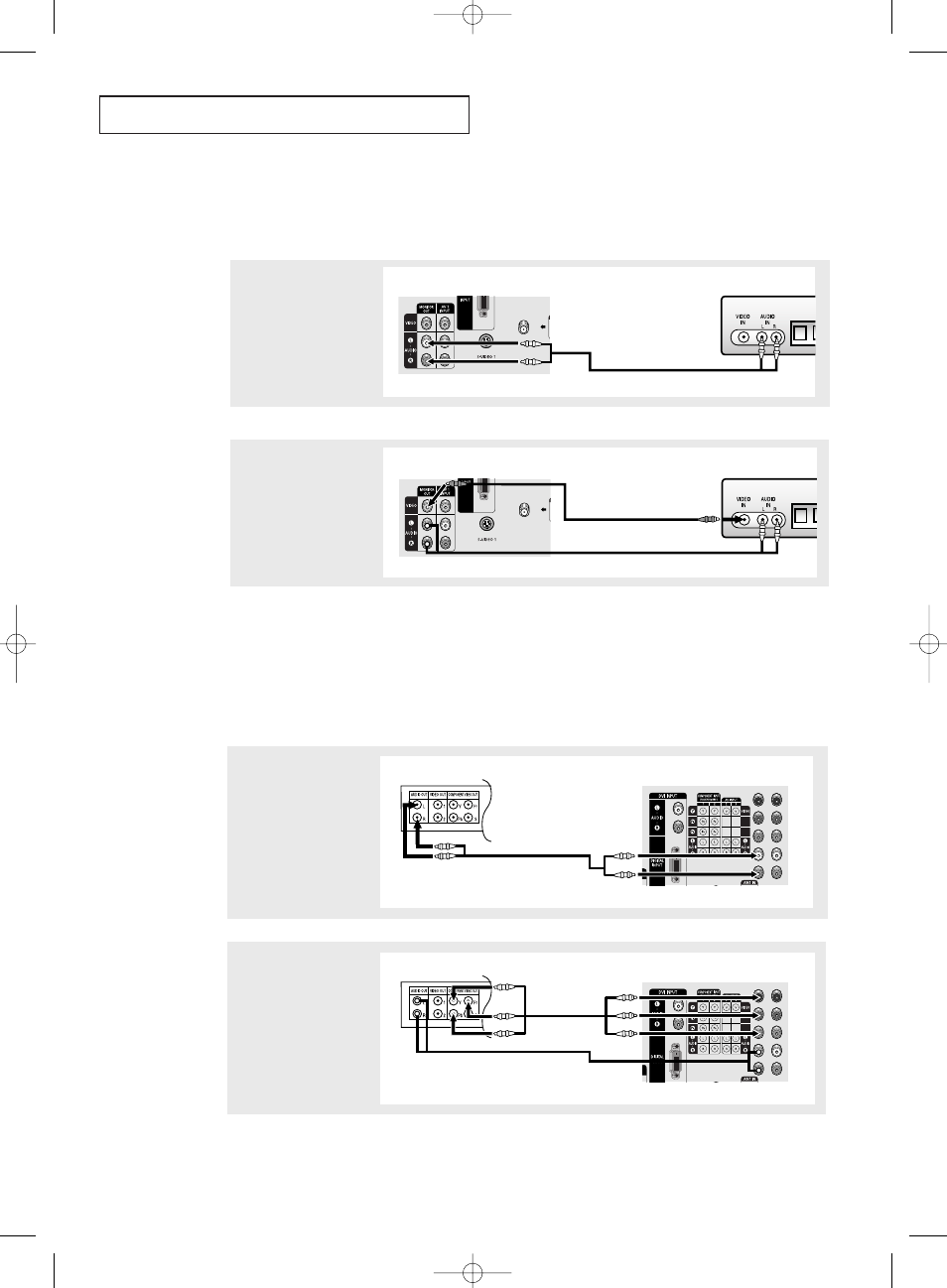

Connecting a Second VCR to Record from the TV
Your TV can send out signals of its picture and sound to be recorded by a second VCR.
To do this, connect your second VCR as follows:
1
Connect a set of audio
cables between the
AUDIO OUT jacks on the
TV and the AUDIO IN
jacks on the VCR.
2
Connect a video cable
between the VIDEO OUT
jack on the TV and the
VIDEO IN jack on the
VCR.
Refer to your VCR’s instructions for more information about how to record using this kind
of connection.
(The VCR input jacks might be either on the front or on back of the VCR.)
Connecting a DVD Player (480i)
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables between the
COMPONENT INPUT 1 (L,
R) or COMPONENT
INPUT 2 (L, R) jacks on
the TV and the AUDIO
OUT jacks on the DVD
player.
2
Connect a video cable
between the COMPO-
NENT INPUT 1 (Y, P
B , P R )
or COMPONENT INPUT 2
(Y, P
B
, P
R
) jacks on the TV
and the COMPONENT
VIDEO OUT (Y, P
B
, P
R
)
jacks on the DVD player.
VCR Input Panel
Audio Cable
TV Rear Panel
VCR Input Panel
Video Cable
TV Rear Panel
DVD Player Rear Panel TV Rear Panel
Audio Cable
DVD Player Rear Panel TV Rear Panel
Video Cable
Note: For an explanation of Component video, see your DVD player's owner's manual.
K61A_AA03447A_01Eng 7/21/05 1:05 PM Page 17
