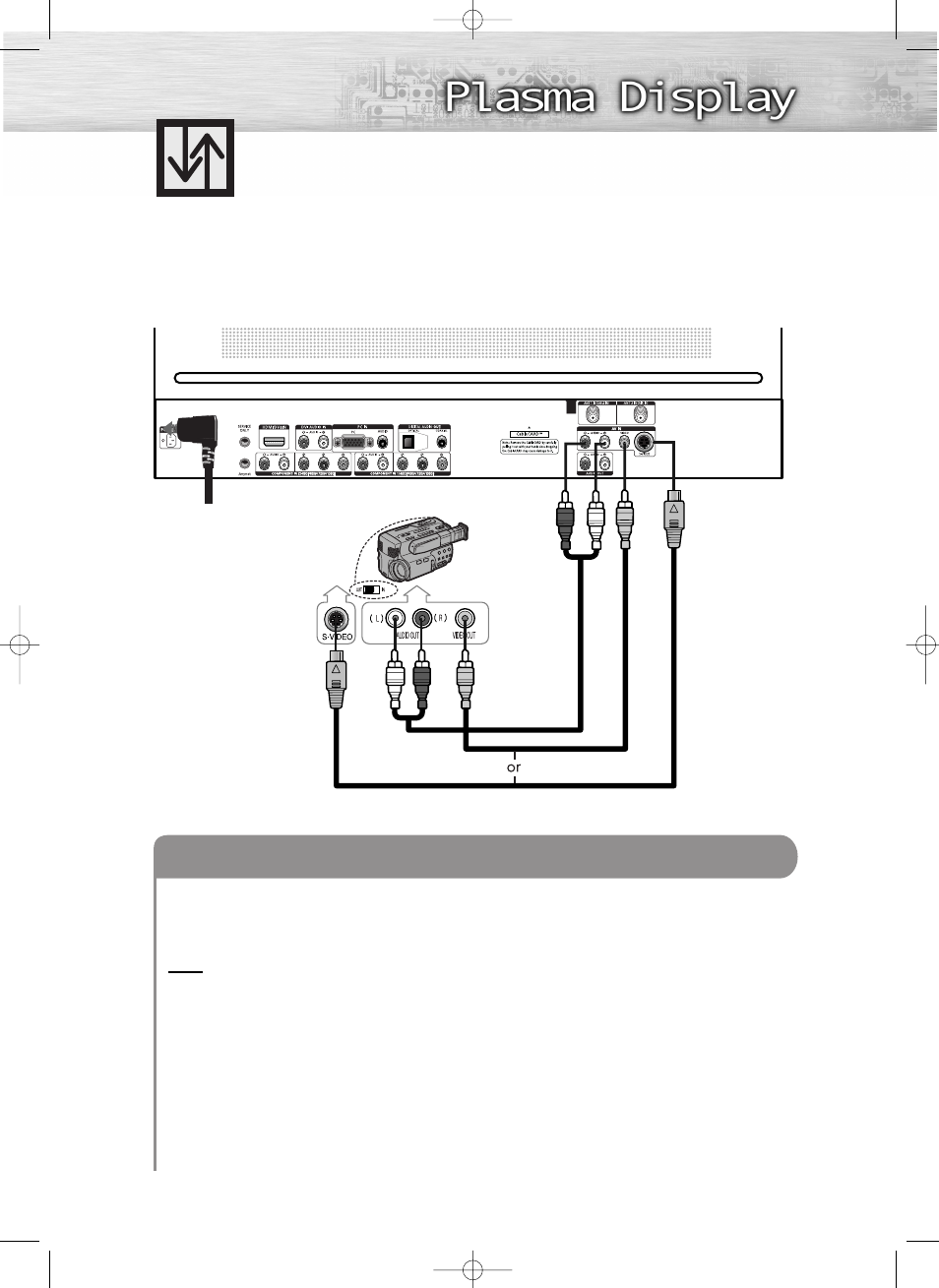

Connecting a Camcorder

TV

S-Video cable

Audio cable

Video cable

Camcorder

Connect a Video/Audio cable between the VIDEO or S-VIDEO/AUDIO input jacks on the TV
and the VIDEO or S-VIDEO/AUDIO output jacks on the camcorder.
(Note: For better video, use an S-VIDEO cable.)

Note

• Please be sure to match the color coded input terminals and cable jacks.

Viewing Tapes

1. Turn on your TV.

2. Press the SOURCE button to select “AV” or “S-Video”.

3. Turn on your camcorder and set it to video mode. (For details, refer to your camcorder

owner’s instructions.)

4. Set the IN/OUT switch on your camcorder to OUT.

5. Insert the tape into the camcorder and press the Play button.

How to Connect

Viewing camcorder tapes
