Getting Started
Description

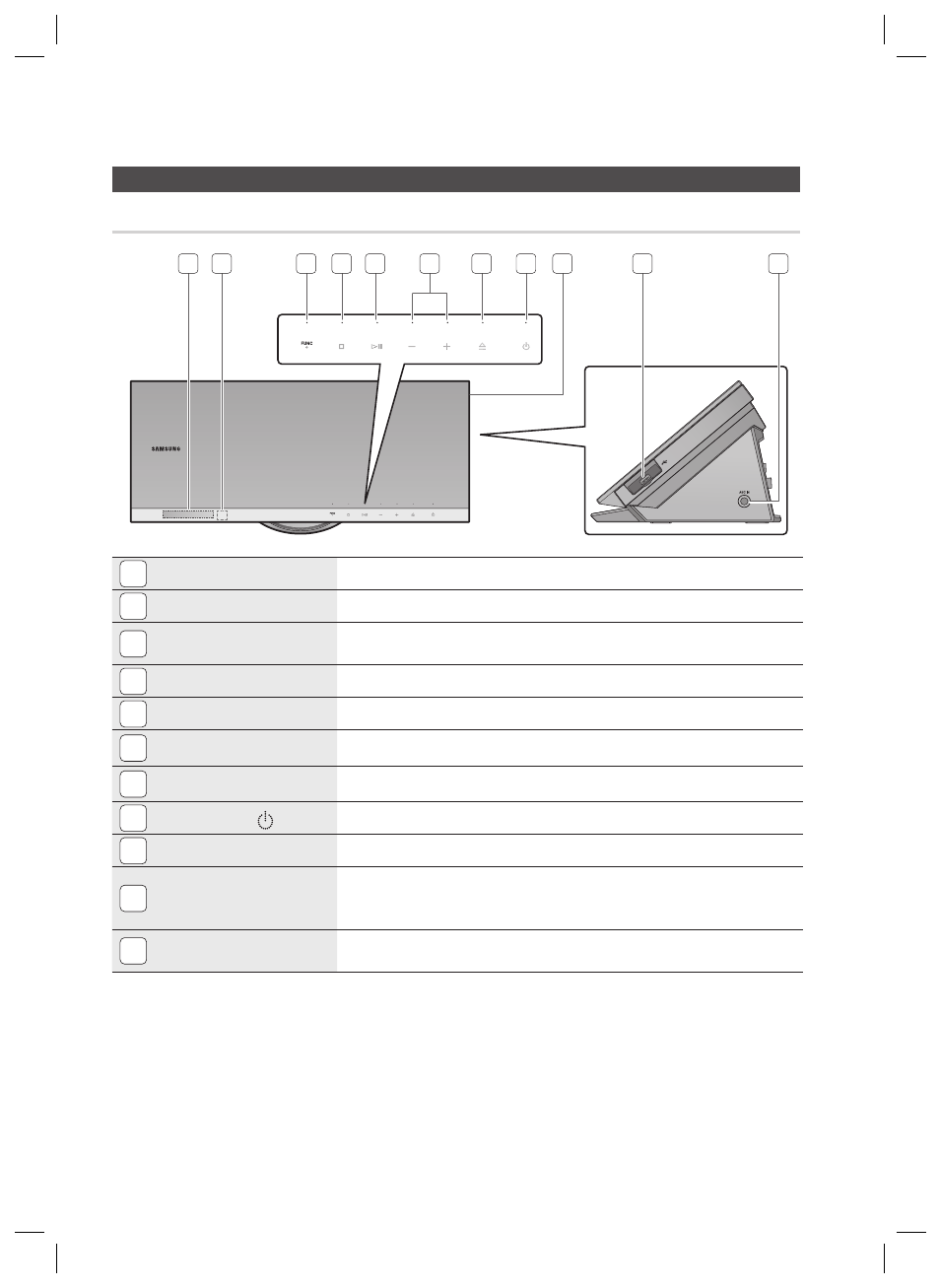

Front Panel
1 DISPLAY Displays the playing status, time, etc.
2 REMOTE CONTROL SENSOR Detects signals from the remote control.
3 FUNCTION BUTTON
The mode switches as follows :
BD/DVD D. IN AUX ONLINE HDMI 1 HDMI 2 FM
4 STOP BUTTON Stops disc playback.
5 PLAY/PAUSE BUTTON Plays a disc or pauses playback.
6 VOLUME CONTROL Volume adjustment.
7 OPEN/CLOSE BUTTON Opens and closes the disc tray.
8
POWER BUTTON ( ) Turns the product on and off.
9 DISC TRAY Insert disc here.
10 USB PORT
A USB storage device can be connected here and used as storage when connected to
BD-LIVE. It can also be used for software upgrades and MP3/JPEG/DivX/MKV/MP4
playback.
11 ASC IN JACK
Used to connect the ASC Microphone for setting up MRC (Musical Room
Calibration).
NOTE
Software upgrades using the USB Port must be performed with a USB memory fl ash stick only.
✎

