SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008
Rough-In Plumbing
Measurements
lAguNA
luxury SErIES

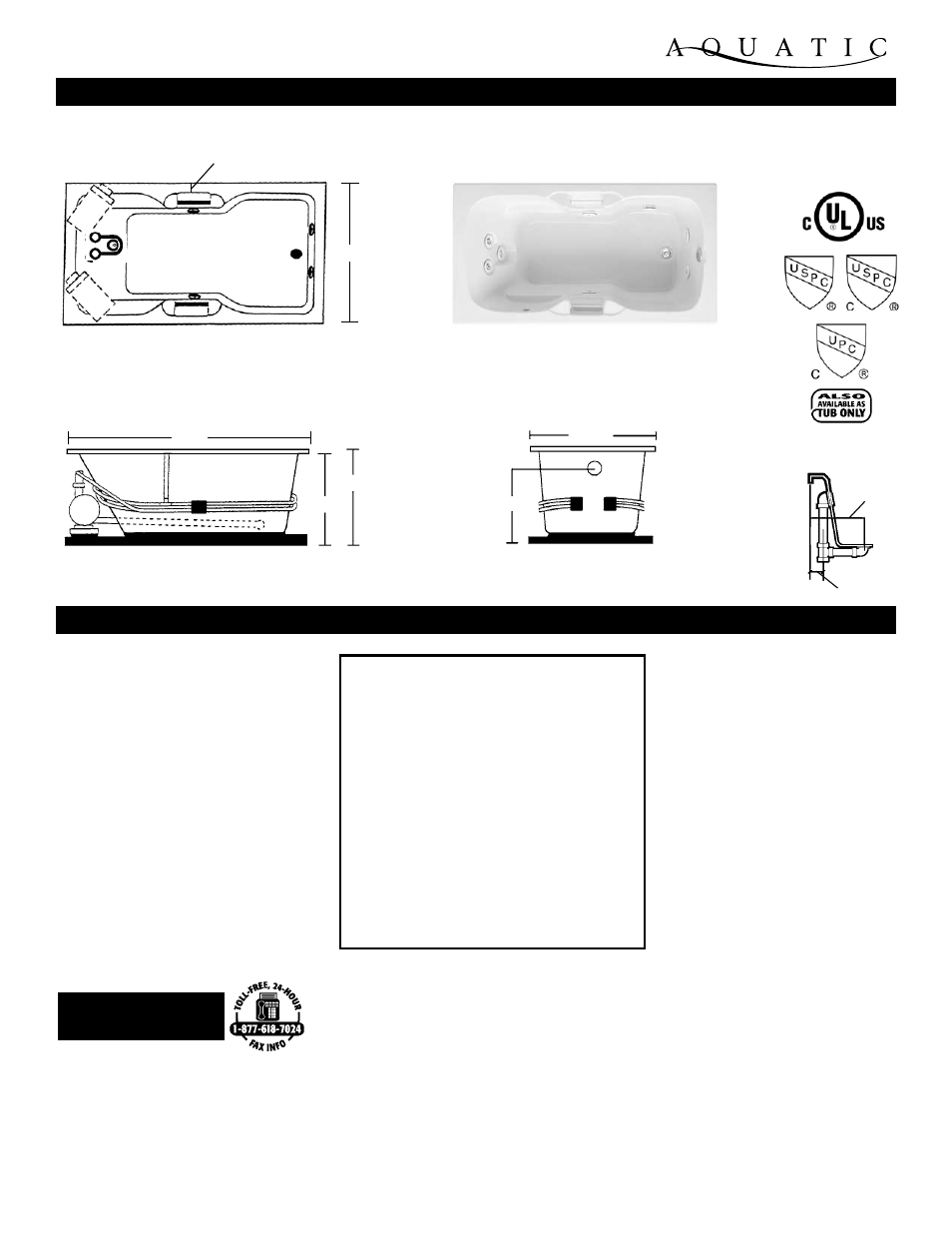

Model # ai6032d / ai6032dTo (Tub only)
GeneRal SPecIfIcatIonS:
Tub Size 59 1/2” x 31 1/2” x 23”
151 cm x 80 cm x 58 cm
Bathing Well 38 1/2” long
21” wide
21 3/4” interior depth
Shipping Weight 182 lbs. / 91 kg
Tub Weight Filled 636 lbs. / 288 kg
Tub Only Weight 121 lbs. / 55 kg
Gallons to Overflow 65 gal. / 246 L
Gallons to Operate 46 gal. / 174 L
electRIcal SPecIfIcatIonS:
Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
oPtIonal equIPMent:
•
Chromatherapy
•
Comfort Pillow - Oval or Rectangle
•
Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
1.5 kW Inline Maintenance Heater
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Factory Installed Rigid ABS Tile Flange
• 2 HP, 3-Speed Run-Dry Pump Upgrade
•
Optional Pump Location
•
Remote Pump Location
•
Pre-leveled ABS Support Base (Tub Only)
•
Color Matched Acrylic Skirt
• Hand Held Jet - Chrome or Polished Brass
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
StandaRd equIPMent:
7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- 2 Color Matched Grab Bars
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base (Whirlpool)
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
21 1/2”
23”
2 1/4”
11 1/4”
Deck Width
1 1/2”
fax-on-demand
document # 1043
note: tub only units do not come standard
with the Pre-leveled aBS Support Base.
31 1/2”
20 1/4”
59 1/2”
note: tub only units do not come standard
with built-in grab bars.
1
2
31 1/2”
