Chapter 1
Getting Started
Overview

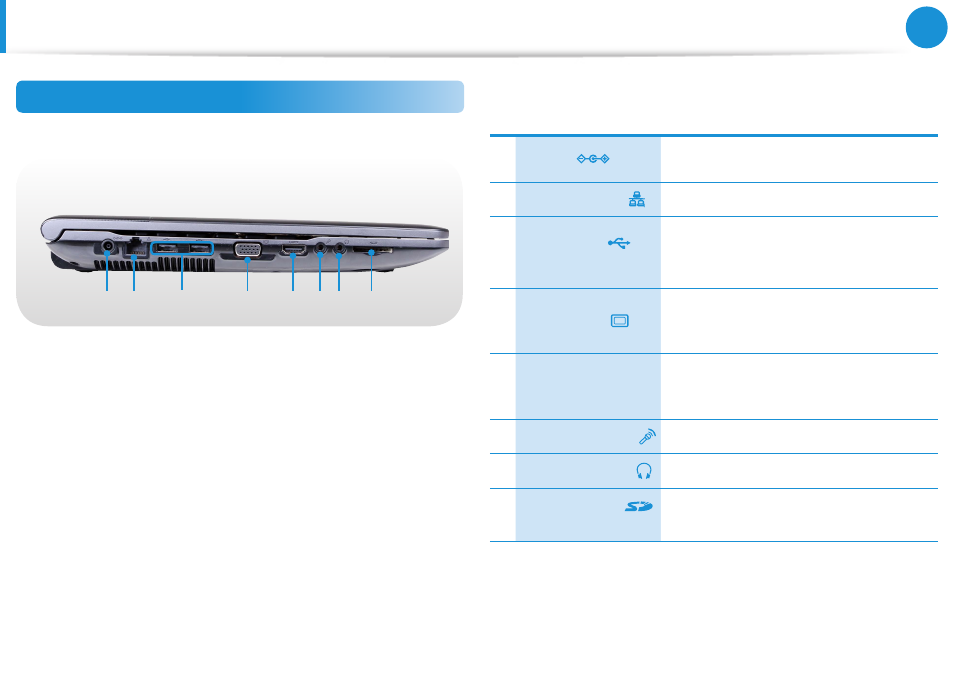

Left View
► Model A
2
1
4
5
3
6 7
8
1 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
2 Wired LAN Port
Connect the Ethernet cable to this port.
3 USB 2.0 Port
(Optional)
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.
4 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
5
Digital Video/
Audio Port (HDMI)
(Optional)
You can connect an HDMI cable to this
port. Using this port, you can enjoy
digital video and audio on the TV.
6 Microphone Jack
A jack used to connect the microphone.
7 Headphone Jack
A jack used to connect the headphones.
8 Multi Card Slot
(Optional)
A card slot supports multi cards.
