Connecting to an Audio Device

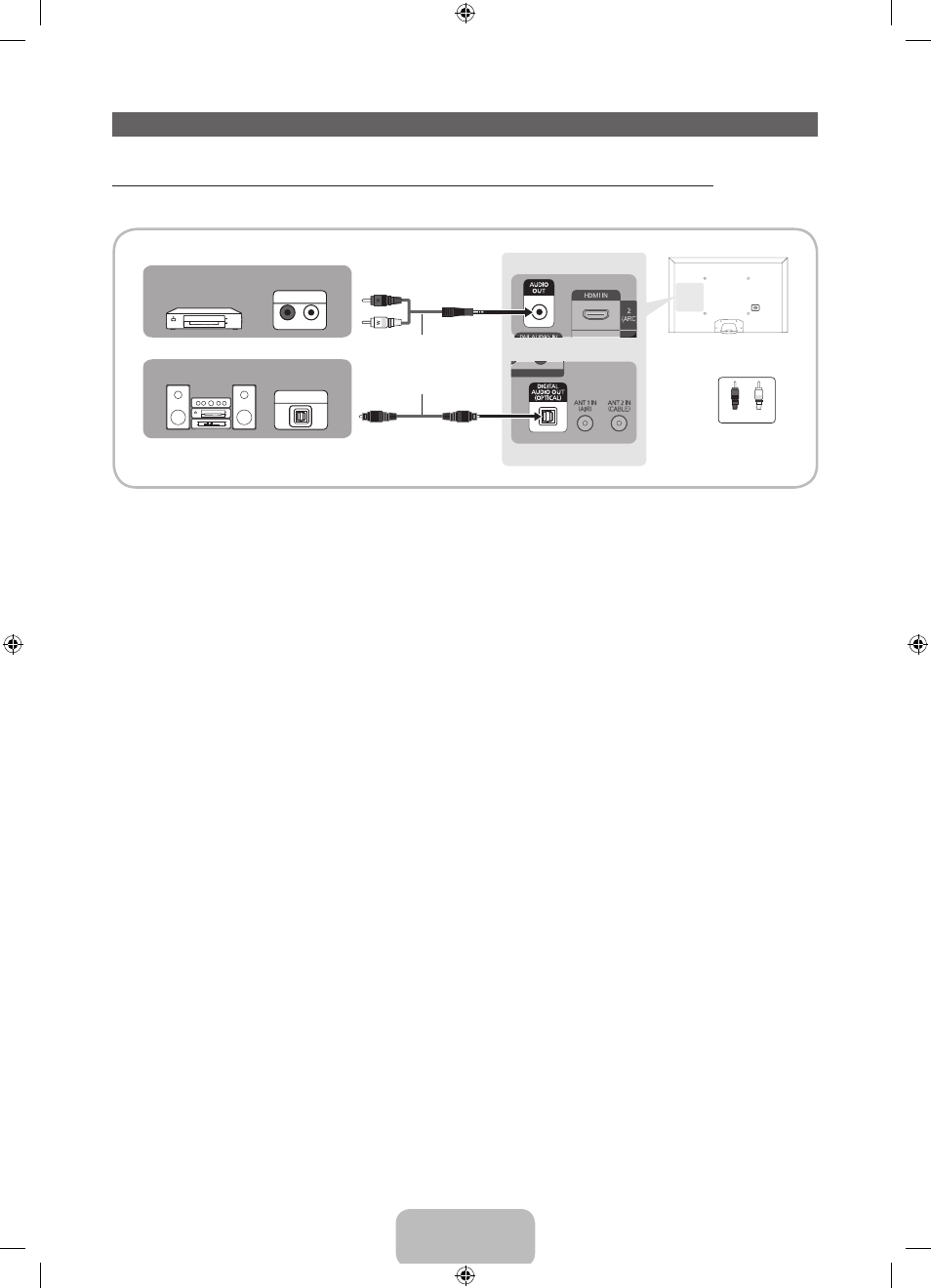

Using an Optical (Digital) Cable Connection and a Standard Stereo Cable Connection
Use with Digital Audio Systems, Amplifiers, and Home Theaters.
✎ DIGITAL AUDIO OUT (OPTICAL)
• When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack,
decrease the volume of both the TV and the system.
• 5.1 CH (channel) audio is available when you connect the TV to an external device supporting
5.1 CH.
• When the receiver (home theater) is set to on, you can hear sound output from the TV’s
optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the
home theater receiver. When the source is a digital component such as a DVD player / Blu-
ray player / cable box / STB (Set-Top Box) satellite receiver and you connected it to the TV via
HDMI, you will only hear 2 CH audio from the home theater receiver. If you want to hear 5.1
CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB
satellite receiver directly to an amplifier or home theater.
✎ AUDIO OUT : Connects to the audio input jacks on your amplifier/DVD home theater.
• When connecting, use the appropriate connector.
• When you connect an audio amplifier to the AUDIO OUT jacks, decrease the volume of the
TV and adjust the volume level with the amplifier’s volume control.
OPTICAL
R-AUDIO-L
AUDIO IN
W R
Optical Cable (Not Supplied)
Audio Cable (Not Supplied)
Digital Audio System
Amplifier /
DVD home theater
Red White
