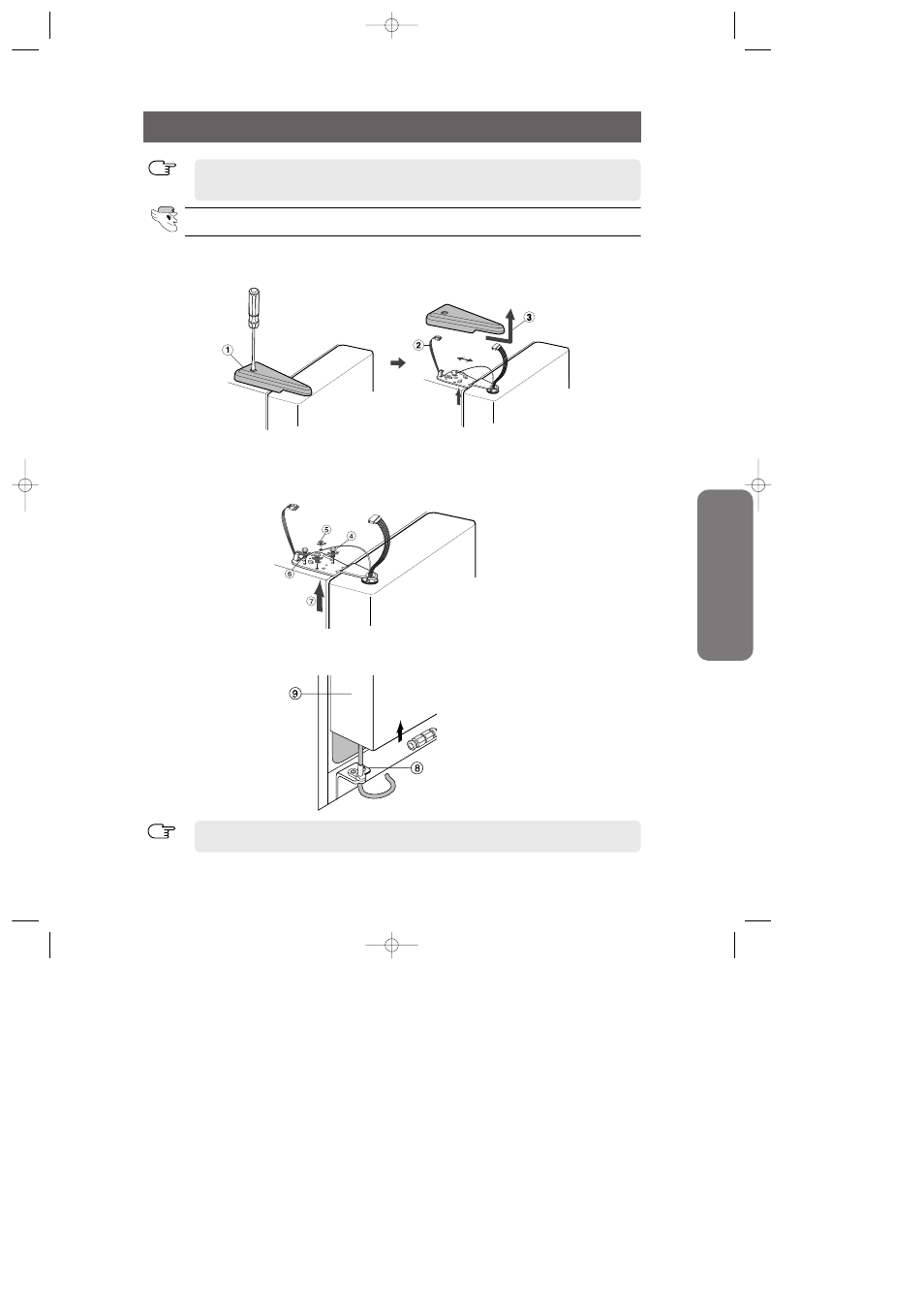

REMOVING THE REFRIGERATOR DOORS

1) With the door closed, remove the upper hinge cover (

➀) along the arrow (➂) using a screwdriver,

and then disconnect the wires (

➁).

2) Remove hinge screws (

➃) and ground screw (➄) counter-clockwise, and take off the upper hinge (➅)

along the arrow (

➆). Take care when removing the door to ensure that it does not fall on you.

3) Remove the door from the lower hinge (

➇) by carefully lifting the door (➈).

Removing the Freezer Door

NOTE

Be careful not to pinch the water tubing and the wire harness at the bottom of the door.

• Lift the door straight up.
• Be careful not to pinch the water tubing and wire harness on the door.
• Place doors on a protected surface.

INST

ALLA

TION INSTRUCTIONS
