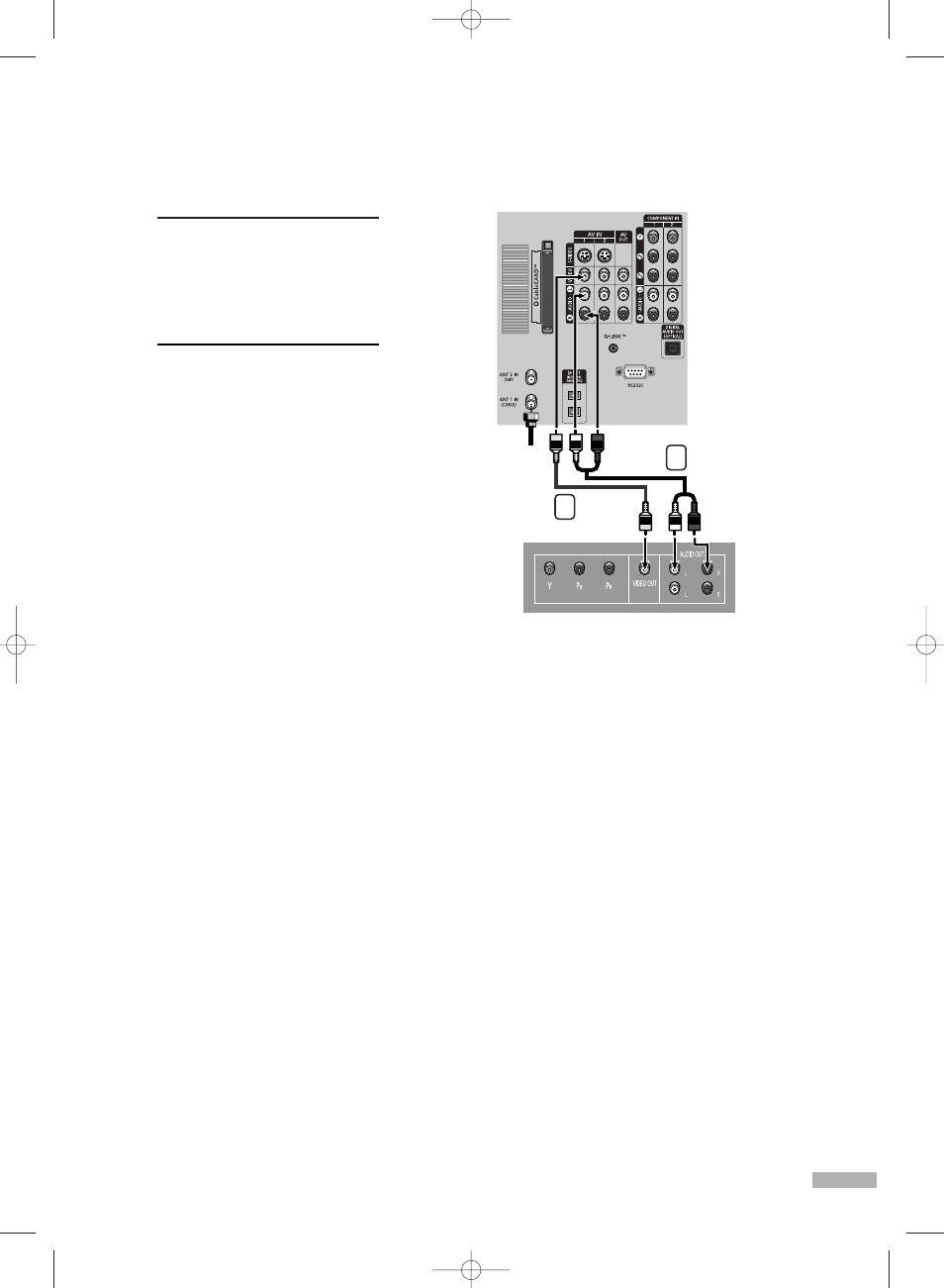

Connecting to Audio and Video Jacks
1 Connect a video cable
between the VIDEO IN (1
or 2) jack on the TV and the
VIDEO OUT jack on the
DVD player.
2 Connect a set of audio
cables between the AUDIO
IN (1 or 2) jacks on the TV
and the AUDIO OUT jacks
on the DVD player.
NOTES
• Component Video separates the
video into Y(Luminance (Brightness)),
P
b
(Blue) and P
r
(Red) for enhanced
video quality.
• Please be sure to match the color
coded input terminals and cable
jacks.
TV Rear Panel
DVD Player
Incoming
Cable or
Antenna
1
2
