Cable with a Cable Box that Descrambles Some (But Not All) Channels
To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial
cables (which you can buy from your Samsung dealer or any electronics store).

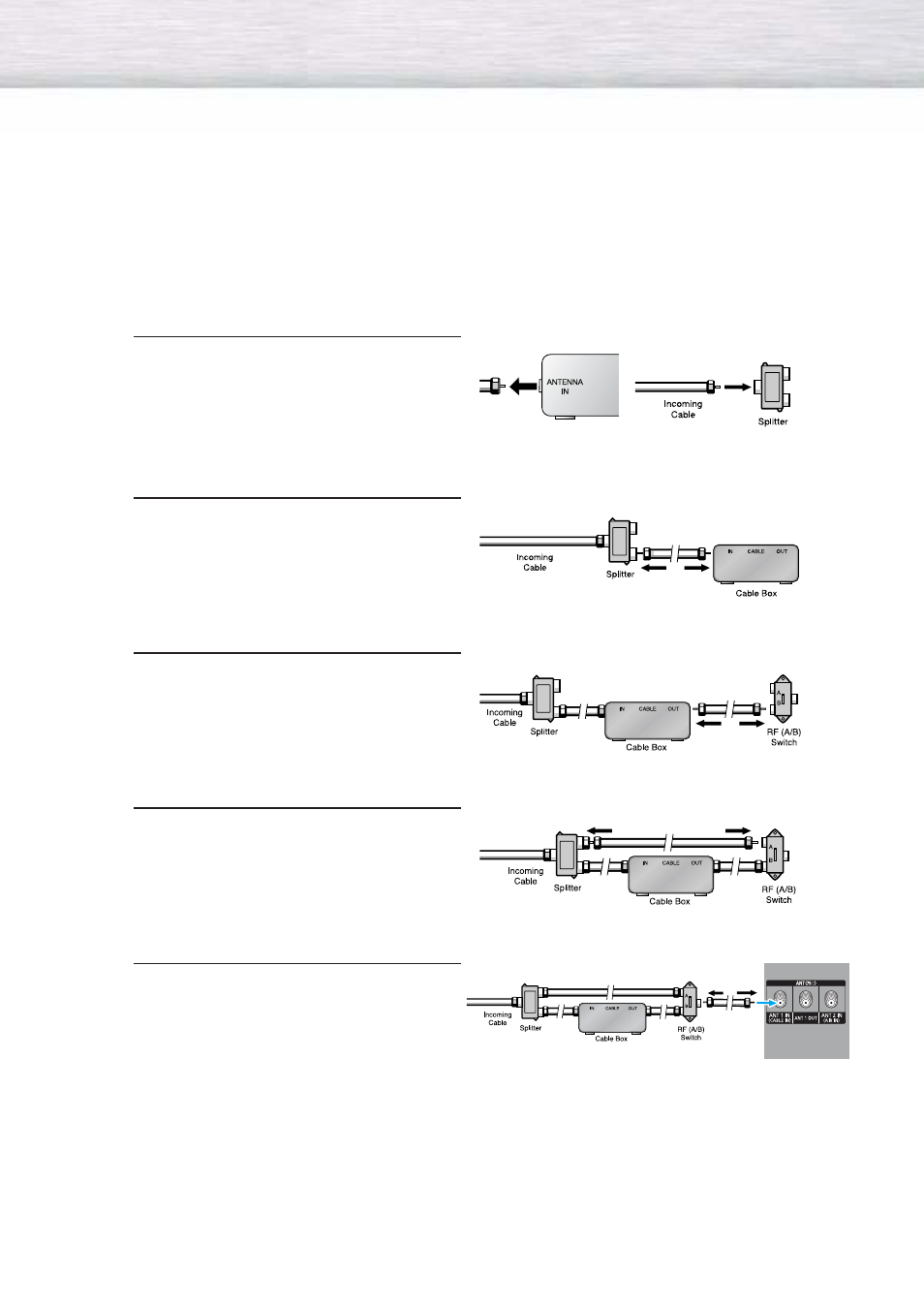

1
Find and disconnect the cable that is
connected to the ANTENNA IN terminal of
your Cable box.
This terminal might be labeled "ANT IN",
"VHF IN" or simply, "IN". Connect this
cable to a two-way splitter.
2 Connect a coaxial cable between an
OUT terminal of the splitter and the
IN terminal of the Cable box.
3 Connect a coaxial cable between the
ANTENNA OUT terminal of the Cable box
and the B-IN terminal of the A/B switch.
4 Connect a coaxial cable between the
ANTENNA OUT terminal of the Cable box
and the B-IN terminal of the A/B switch.
5 Connect the last coaxial cable between the
OUT terminal of the RF (A/B) switch and
the ANT 1 IN(CABLE IN) on the PDP.
After you've made this connection, set the A/B switch to the "A" position for normal viewing.
Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch
to "B", you will need to tune your Set-Top Box to the Cable box's output channel, which is usually
channel 3 or 4.)
