English
19
02
Connections

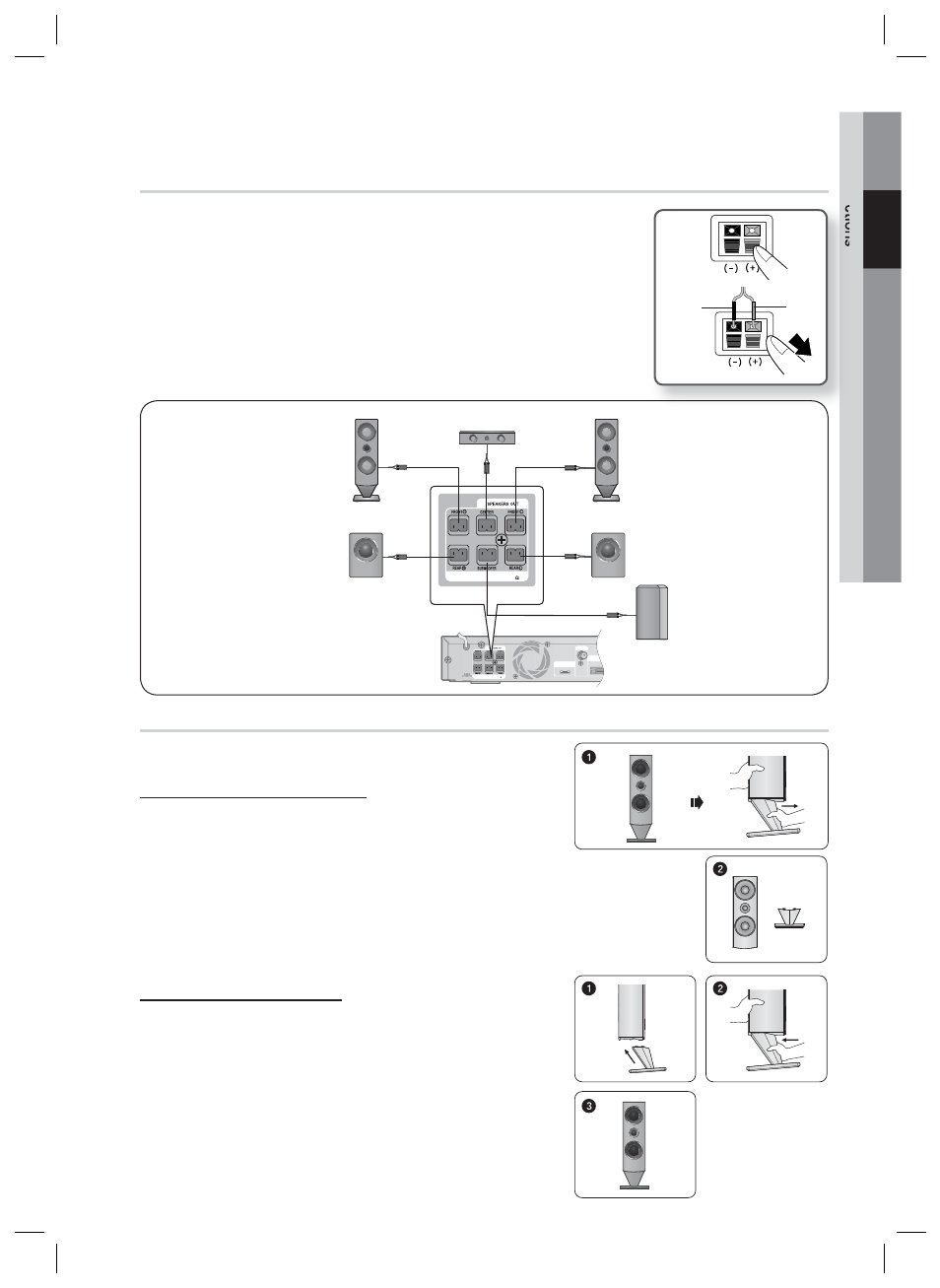

Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into
the red (+) terminal, and then release the tab.
Connect the connecting plugs to the back of the product by matching
the colors of the speaker plugs to the speaker jacks.
1.
2.
3.
Black Red
iPod
FM ANT
WIRE
SPEAKER IMPEDANCE : 3
iPod
FM ANT
W
SPEAKER IMPEDANCE : 3
SPEAKER IMPEDANCE : 3
Front Speaker (R)
Subwoofer
Surround Speaker (R)
Surround Speaker (L)
Front Speaker (L)
Center Speaker
How to install the speaker
Connect the stand in the arrow direction so that it fi ts the
corresponding holes (x4) on the speaker.
Fully insert the stand in the arrow direction as shown.
This is the appearance after the speaker unit is installed.
1.
2.
3.
Removing/Installing the speaker on the stand
* Front Speakers only
How to remove the speaker
If you attach the speaker on the wall, remove the stand
before using it.
Pull out the stand in the arrow direction as shown.
Be careful not to put excessive force when removing it.
Otherwise, it can be damaged.
This is the appearance after the stand is removed.
1.
•
2.
