Allied Air Enterprises WARM AIR GAS FURNACE 92G1UH - Manual (Page 36)

506724-01 Page 36 of 57 Issue 1108
GROUND
JOINT
UNION
FIELD
PROVIDED
AND INSTALLED
Left Side Piping
(Standard)
DRIP LEG
MANUAL
MAIN SHUT−OFF
VALVE
Right Side Piping
(Alternate)
NOTE − BLACK IRON PIPE ONLY TO BE ROUTED INSIDE OF CABINET
Bellows Grommet
Plug Plug
GROUND
JOINT
UNION
DRIP LEG
MANUAL
MAIN SHUT−OFF
VALVE
Gas Valve
Gas Valve
Bellows Grommet

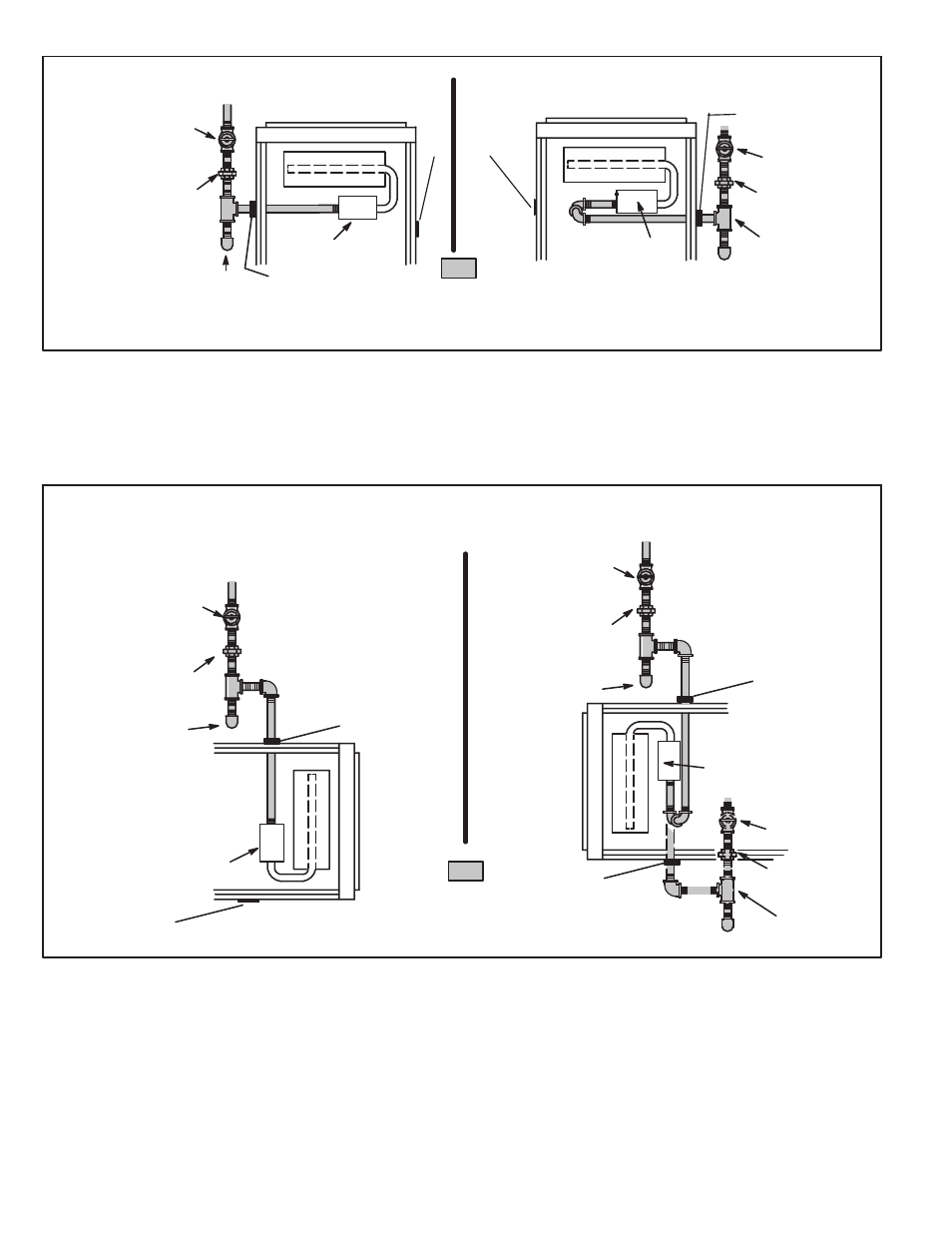

FIGURE 49
Horizontal Applications
Possible Gas Piping Configurations
GROUND
JOINT
UNION
DRIP LEG
MANUAL
MAIN SHUT−OFF
VALVE
GROUND
JOINT
UNION
DRIP LEG
MANUAL
MAIN SHUT−OFF
VALVE
GROUND
JOINT
UNION
DRIP LEG
MANUAL
MAIN SHUT−OFF
VALVE Horizontal Application
Left−Side Air Discharge
Horizontal Application
Right−Side Air Discharge
NOTE − BLACK IRON PIPE ONLY TO BE ROUTED INSIDE OF CABINET
FIELD
PROVIDED
AND INSTALLED
Bellows Grommet
Bellows Grommet
Bellows Grommet
Plug
Gas Valve
Gas Valve
FIGURE 50
