Connecting Cables to the CoreModule 800
Connect the cables provided with the CoreModule 800 QuickStart Kit to the respective connectors on
the CoreModule 800 SBC. Skip any cable(s) that do not apply to your situation.
Utility 2 (J5)
Utility 1 (J4)
Video (J1)
Ethernet (J3)
IDE (J6)
Power In (J7)
Daughter
Power Board
CoreModule 800
C
M
800Q
kS
_03a

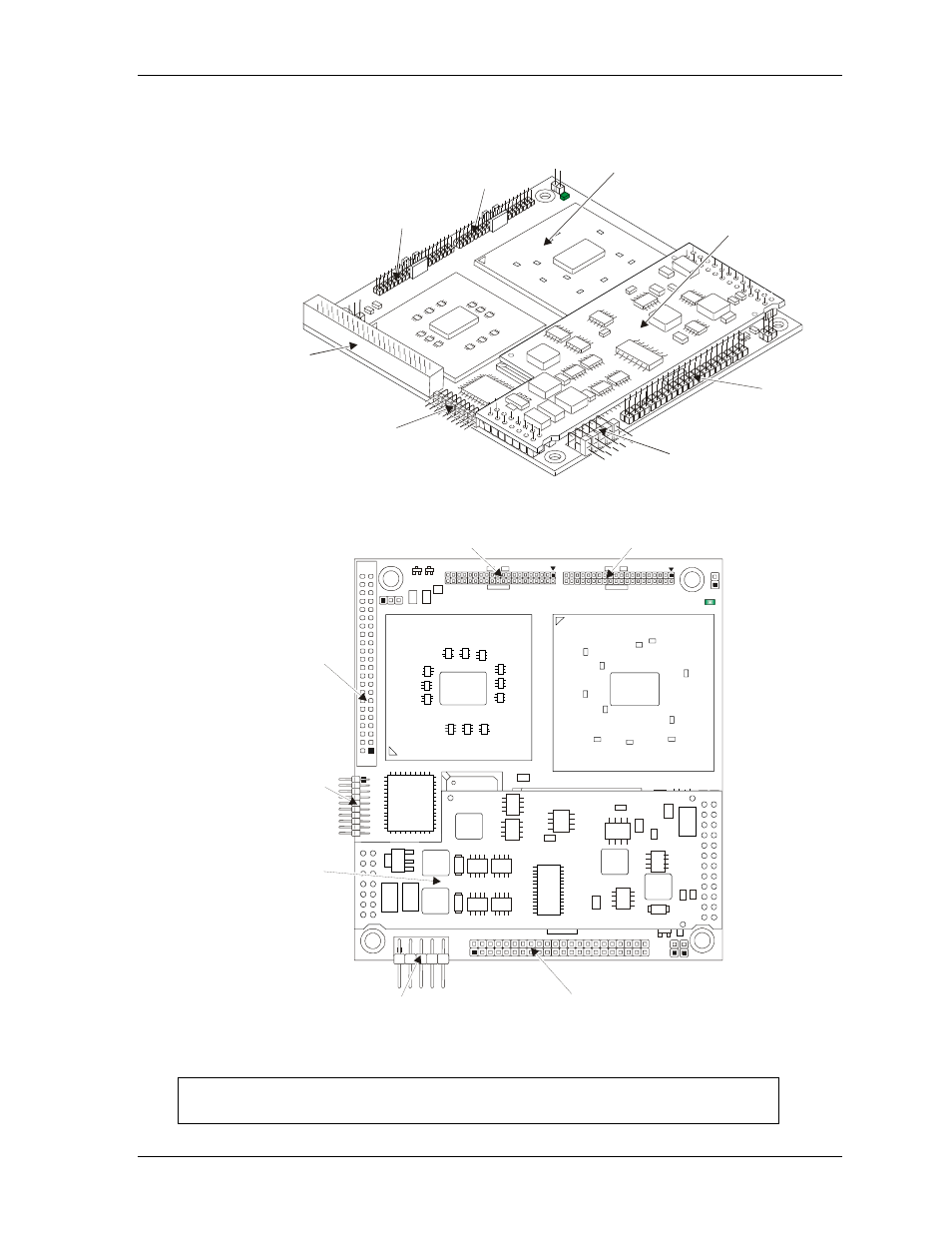

Figure 1-1. CoreModule 800 Connector Locations
C
M
800Q
k
S
_01a
U5
U2
U1
J1
J3
J7
J8
U9
U11
U12
J6
JP4
J5
D17
J9
JP3
JP1
U13
Q6
Q1
Q4
Q2
U26
Q3
J4
D9 D10
JP2
Video (J1)
Utility 2 (J5)
Utility 1 (J4)
Ethernet (J3)
Daughter
Power
Board
IDE (J6)
Power In (J7)
Figure 1-2. Connector and Pin-1 Locations
NOTE
Pin-1 is shown as a black pin (square or circle) in all connectors and
jumpers in all illustrations. A small arrow head may also indicate pin-1.
