FEATURES
• Outputs may be cascaded to create an extensive
distribution network up to 7 layers deep
• HDMI version 1.3 certified
• Fully HDCP compliant
• May be used with other 1390 Series distribution amps,
1391A extenders and 1370 Series switchers
• Supports HDTV, EDTV, and SDTV resolutions, and PC
resolutions up to 1920 x 1200
• Supports automatic discovery of display EDID
• Accepts most locking cables (1394A and 1398A)
• All metal construction
Model Numbers:
1392A, 1394A, 1398A
Video Inputs:
1x via HDMI connector (Type A)
1392A Video Output:
2x via HDMI connector (Type A)
1394A Video Output:
4x via HDMI connector (Type A)
1398A Video Output:
8x via HDMI connector (Type A)
HDMI Audio Output:
HD-Audio, including Dolby® TrueHD and
DTS-HD: Master Audio, Dolby Digital Plus
Audio Bandwidth:
20Hz to 20 KHz
Data Rate:
2.25Gbps (single link)
TMDS Clock Speed:
225MHz
Color Depth:
8/10/12 bit color depth
Supported PC/DVI Resolutions:
Up to 1920x1200
Supported Video Resolutions:
480i/p, 576i/p, 720p, 1080i/p
Compliance:
HDMI V1.3, HDCP V1.1, DVI V1.0
Signal Equalization:
Internal
Max. Distance, Source to DA:
50’ for 1080p/8-bit or 35’ for 1080p/12-bit
Max. Distance, DA to Display:
50’ for 1080p/8-bit or 30’ for 1080p/12-bit
Limited Warranty:
1 year parts and labor
1392A (H-W-D, inches):
1 x 3.9 x 5.8
1394A (H-W-D, inches):
2 x 8.6 x 5.8 (including feet)
1398A (H-W-D, inches):
2 x 19 x 6.3 (including feet)
1392A Weight:
0.7 lbs (300g) net
1394A Weight:
1.88 lbs (0.85kg) net
1398A Weight:
4.4 lbs (2kg) net
Operating Temperature:
0° to +50°C (+32° to +122°F)
Operating Humidity:
10% to 90%, non-condensing
Storage Temperature:
0° to +50°C (+32° to +122°F)
Storage Humidity:
10% to 90%, non-condensing
1392A AC Power Adapter:
USA, [email protected]
1394A AC Power Adapter:
USA, 5VDC@2A
1398A AC Power Adapter:
USA, 5VDC@5A
Regulatory Approvals:
Amplifier: FCC, CE, RoHS
Power Supply: UL, CUL, CE, PSE, GS, RoHS
1394 and 1398 Accessories:
Manual, jack screws for locking cables
1392 Accessories:
Manual

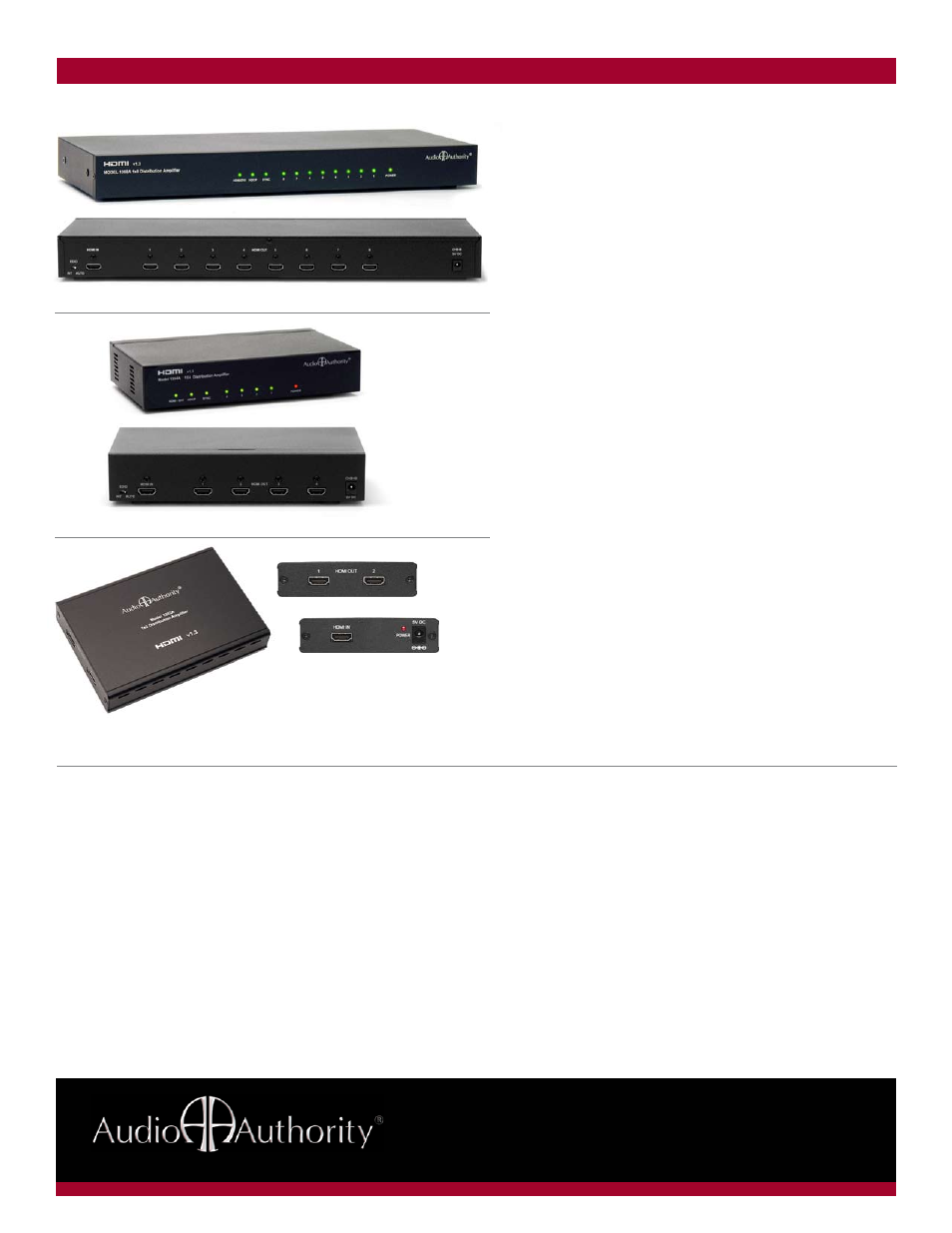

Model 1394
Model 1392
Model 1398
1390 SERIES SPECIFICATIONS
