• Durable stainless steel construction
• Shallow 1-inch mounting depth
• Cable length compensation adjustment to maintain

image and sound quality over long Cat 5 runs

• Fits in a standard US dual-gang wall box for

convenience in installation

• F-connector pass-through jack for convenient antenna

connection (requires separate coax cable run)

• Dimensions (H x W x D) 4.75” X 4.75” X 1”

Perfect for wall & ceiling-mounted displays
• Cable connections are parallel to the wall,

allowing near-flush mounting for flat panel
displays

• Can be mounted on any flat surface, even to the

back of a TV when no wall surface is available

• Enclosed design mounts without a work box
• Includes an IR jack
• Dimensions (H x W x D) 1.75” x 3.75” x 3”

• Includes Decora

®

style inserts in white, ivory,

and almond (Decora trim covers not included)

• Front and rear facing IR jacks for external or

in-wall IR connections

• Fits standard U.S. single-gang wall boxes
• Cable length compensation adjustment allows

the installer to fine tune image and sound
quality over long Cat 5 runs

• Dimensions (H x W x D) 4” x 1.6” x 2.75”

(no trim cover)

9878 Wallplate Dual-Gang Receiver

9879 Wallplate Single-Gang Receiver

9880 Enclosed Cat 5 Receiver

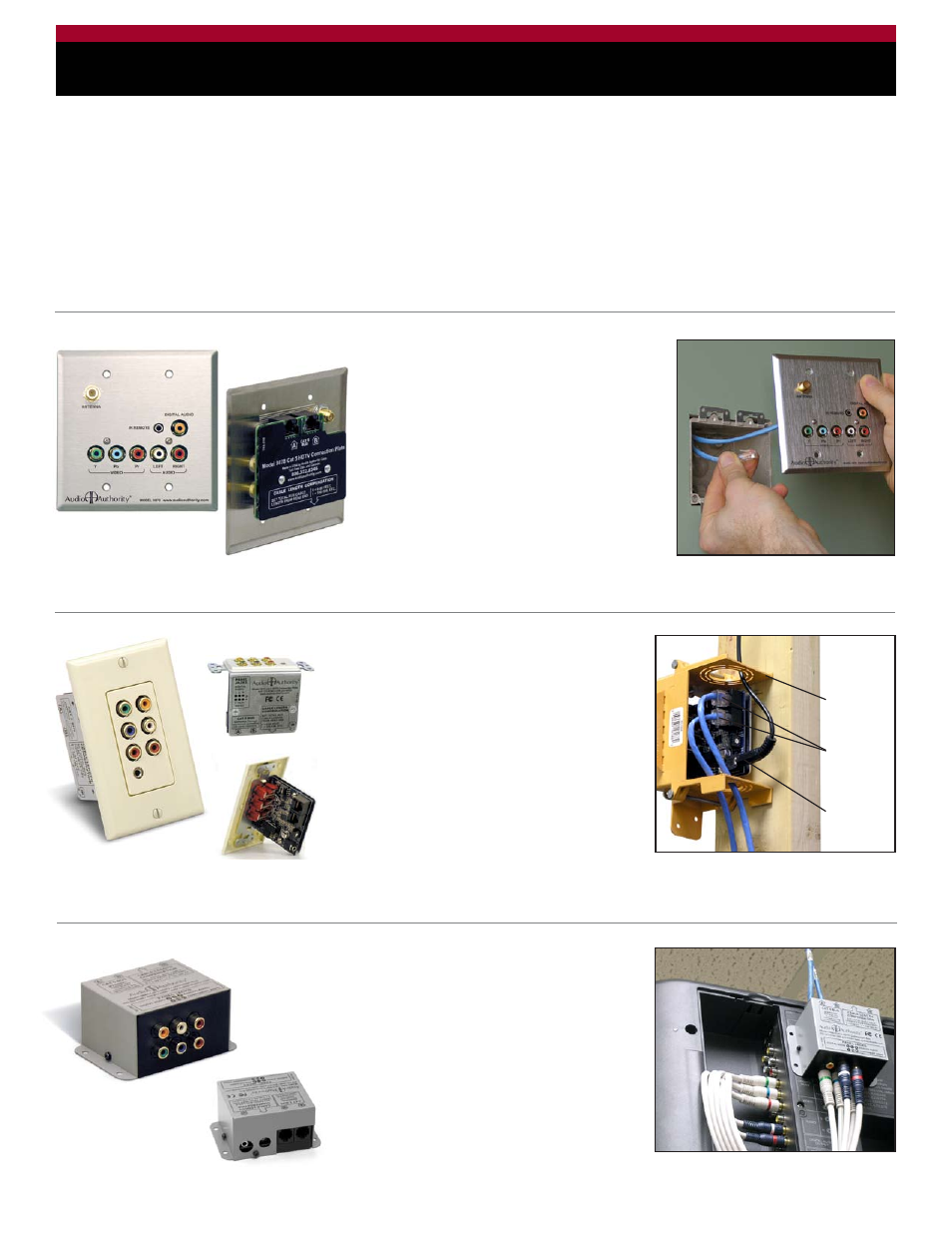

The Models 9878, 9879, & 9880 provide TV connection points for component video, coaxial digital audio, left/right analog
audio, and an IR receiver input. Used with a compatible Audio Authority driver, these Cat 5 to HDTV receivers maintain pristine
high-definition detail and vibrant color for outstanding audio/video at remote locations up to 1,000 feet away.

Cat 5 High Definition Wall Plate & Enclosed Audio/Video Receivers

9878

9879

AUXILIARY,

REAR-FACING

IR JACK

Cat 5e/6

CABLES

STANDARD

SINGLE-GANG

WORK BOX

9880

Product Focus

Models 9878, 9879, 9880
