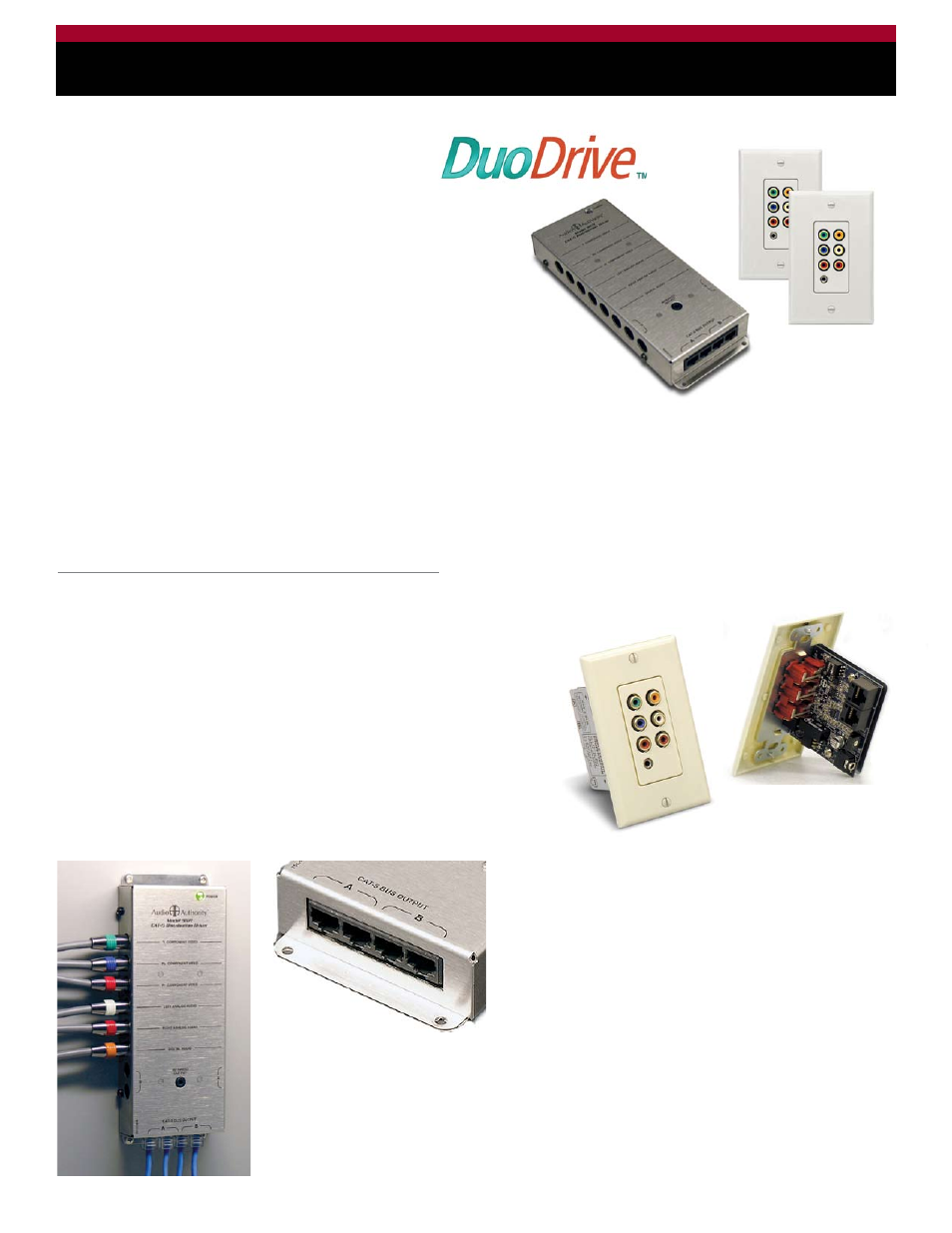

he Model 9870D DuoDrive ™ incorporates the key signal paths necessary for
premium home audio and video entertainment systems. Consisting of one 9871
Driver and two 9879 wallplate/receivers, the DuoDrive distributes component video up
to a resolution of 1080p, as well as both digital and analog audio, over two inexpensive, easy-to-install CAT 5 cables from a single
source to two remote locations. The DuoDrive is easily expandable in increments of two outputs by adding additional 9870Ds.
Audio Authority’s unique cable length compensation also allows adjustment for the optimal signal strength at any distance up to
1,000 feet from the source, faithfully preserving the signal’s original color and detail for maximum enjoyment.
• Distribute audio and video to multiple areas
of the home over CAT 5 cables
• Single-source/two output distribution,
expandable in pairs with additional modules
• Distributes HDTV component video, digital
audio, and analog audio.
DuoDrive ® HDTV Distribution System
DuoDrive FEATURES:
• One input, two Cat 5 wallplate outputs (wallplates included)
• High bandwidth component video (YPbPr) up to 1080p
• Coaxial digital and stereo analog audio
• Infrared remote jack for IR pathway
• Wallplate powered through Cat 5 cable
• Antenna pass-through jack
• Expandable in increments of two by adding more driver modules
• Provides reliable ground isolation, preventing hum bars and other
artifacts associated with ground loops
• Compatible with Audio Authority 9878, 9879, and 9880 receivers
Each of the two Model 9871
Driver outputs works over a pair
of inexpensive, easy to install
Cat 5 cables. The wall-mountable
9870D system accepts digital and
analog audio, and HD component
video inputs.
The Cat 5 outputs from a Model 9871 driver terminate
at 9879 wallplate/receivers, (or 9880 self-enclosed
receivers) which provide a remote connection point for
an HDTV video and/or audio sound system. The active
circuitry in the wallplates is powered through the Cat 5
bus, so no power connection is required at the remote
zone. Each receiver can be adjusted to compensate
for the cable length up to 1,000 feet. Component
video, digital and analog audio signals are carried on
two Cat 5 cables to each wallplate/receiver. A control
signal pathway for a 3rd party IR remote system is also
part of the Cat 5 bus. This pathway allows the desired
source to be selected remotely via IR.
9870D WALLPLATE/RECEIVERS:
9879 Wallplate/Receiver
