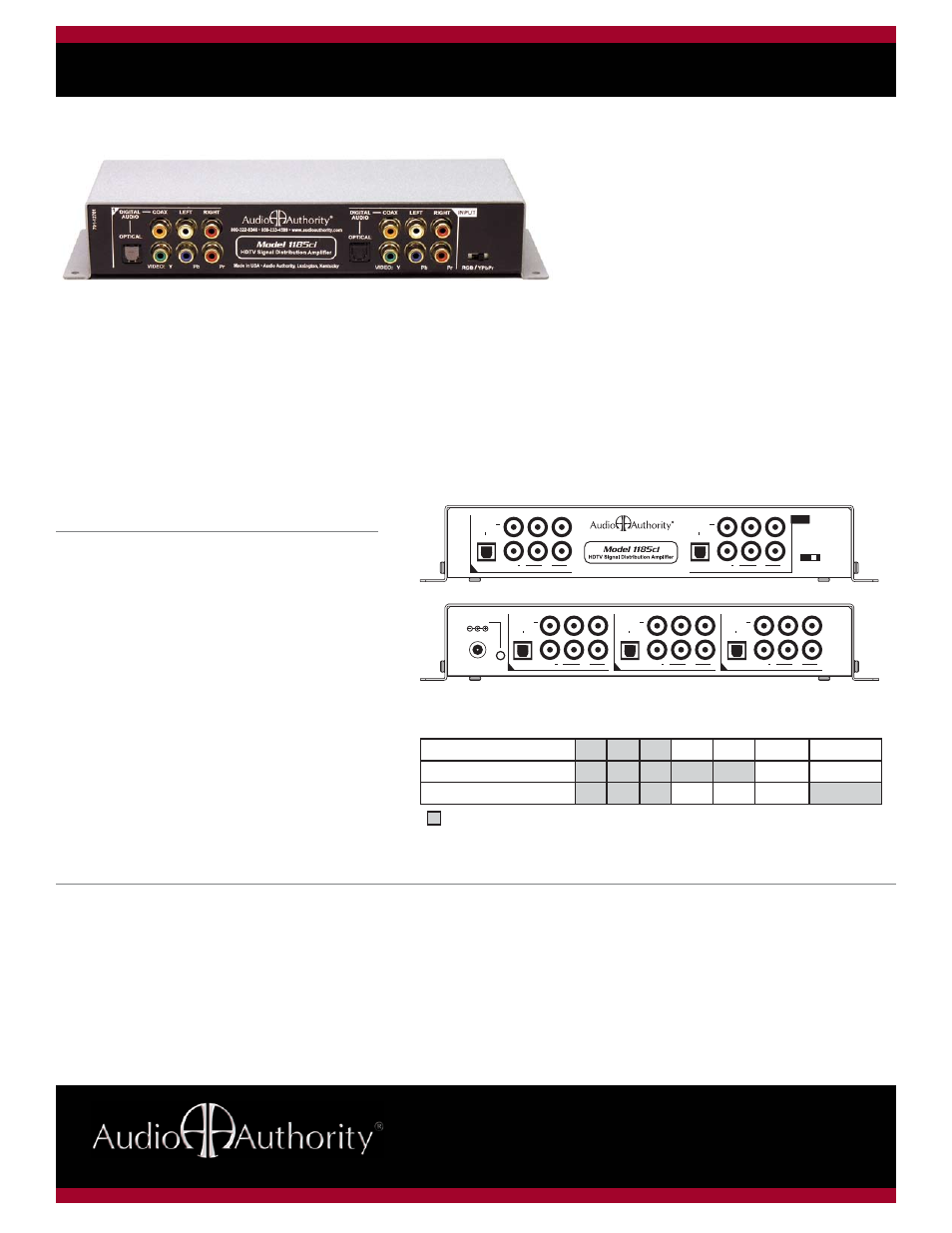

Audio Authority 1185ci User Manual

Model 1185ci, Multi-mode hdtv distribution amplifier, 1185ci features

background image

The Audio Authority Model 1185ci is a premier, one input/four output audio/video distribution amplifier specifically designed
with the needs of custom home and commercial integration in mind. Its high bandwidth component video pathways handle up
to 1080p resolution, while also distributing analog audio, digital optical, and digital coaxial audio. The 1185ci includes the
most-asked-for features, such as ultra-wide video bandwidth, audio channels that also pass sync for RGBHV displays, and full
optical/coaxial support of digital audio with automatic conversion, making it perhaps the most versatile distribution amplifier
available today.

• Distributes audio & video to four locations
• Specifically designed for custom home,
business & commercial installations
• Converts digital optical and coaxial signals
automatically

Multi-Mode HDTV Distribution Amplifier

1185ci FEATURES:

• One AV input, four AV outputs
• Ultra-high bandwidth
• Supports component video (YPbPr) up to 1080p
• Digital audio (coaxial and optical)
• Automatic digital audio conversion
• Audio channels also pass sync for RGBHV displays
• Stereo analog audio
• Side-looking input/output jacks for extra compact
cable routing
• All metal construction
• Made proudly in our own US factory

SPECIFICATIONS:

1185ci panels

12V DC

POWER

4

COAX

DIGITAL

AUDIO

OPTICAL

L

R

Pr

Pb

Y

VIDEO

COAX

DIGITAL

AUDIO

OPTICAL

L

R

Pr

Pb

Y

VIDEO

3

COAX

DIGITAL

AUDIO

OPTICAL

L

R

Pr

Pb

Y

VIDEO

2

Made in USA • Audio Authority, Lexington, Kentucky

800-322-8346 • 859-233-4599 • www.audioauthority.com

RGB

/

YPbPr

COAX

DIGITAL

AUDIO

OPTICAL

L

R

Pr

Pb

Y

VIDEO

1

COAX

DIGITAL

AUDIO

OPTICAL

L

R

Pr

Pb

Y

VIDEO

INPUT

Model Number

1185ci

Video Parameters
Signal Type

Component/RGBHV

Video Formats (analog)

480i/p, 540p, 720p, 1080i/p

Input/Output Impedance

75 ohms

Input Ground Isolation

No

Gain

1

Gain Accuracy

1%

3dB Bandwidth

120MHz

Input Coupling

AC/sync tip clamped

S/N Ratio

65dB

Max Gain

1

Audio Parameters
Analog/Digital

Digital/Analog

Digital Audio Type

Optical+Coaxial In/Out

Input Impedance

75 ohms/10K ohms

Min Load Impedance

75 ohms/10K ohms

Multi-channel Digital

Yes

Frequency Response

1.4MHz

S/N Ratio

80dB

THD+Noise

0.01%

Crosstalk

80dB

Agency Approvals

CE, FCC, RoHS

DC Input Connector

5.5 X 2.1mm

DC Input Voltage

Polarity

12V

Center positive

Max DC Input Current

200mA

Power Supply

571-013

Size (H-W-D, inches)

1.75 x 10.5 x 4

Warranty:

One Year Replacement

Agency Approvals:

FCC, CE

Accessories Included:

Model 1185ci Signal Configurations

Component Video

Y

Pb

Pr

Left

Right

Optical

Coax

RGBHV

R

G

B

H

V

Optical

Coax

Component & Composite

Y

Pb

Pr

Left

Right

--

Composite

Jacks used for video

Product Information

Model 1185ci

2048 Mercer Road, Lexington, KY 40511-1071 USA

Phone: 859-233-4599 • Fax: 859-233-4510

Customer Toll-Free USA & Canada: 800-322-8346

www.audioauthority.com

3/08
