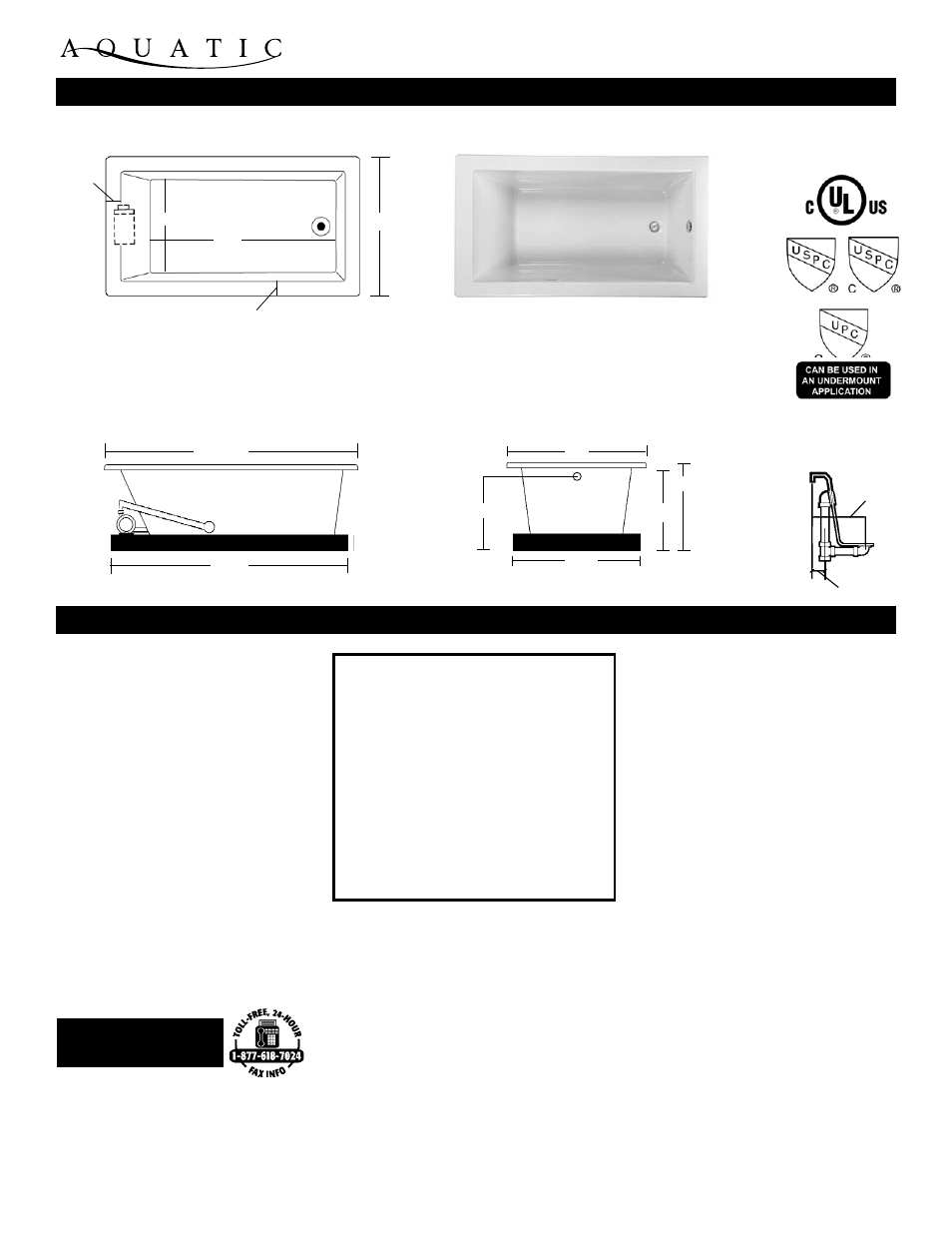

Aquatic HOTSOAK 73 AI18AIR7242HS - Manual

117
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
August 2008
Rough-In Plumbing
Measurements
hOTSOAk 73
hOTSOAk SErIES
Model # AI18AIR7242HS
GeneRal SPecIfIcatIonS:
Tub Size 72” x 42” x 24”
189 cm x 107 cm x 56 cm
Bathing Well 49” long
24 1/2” wide
22” interior depth
Shipping Weight 188 lbs. / 85.5 kg
Tub Weight Filled 1359 lbs. / 618 kg
Tub Weight Only 138 lbs. / 63 kg
Gallons to Overflow 163 gal. / 618 L
electRIcal SPecIfIcatIonS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
fax-on-Demand
Document #1248
aquatic Quality features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- “Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation
- Slip Resistant Floor
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
Ul & IaPMo listed, factory tested
limited lifetime Warranty
StanDaRD eQUIPMent:
•
Chromatherapy LED Lighting*
•
Comfort Pillow - Oval or Rectangle
• Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
• Integral Tiling Flange (Customer must specify which
side(s) should receive flange)
•
Premium Colors
All acrylic colors featured by Aquatic match the industry’s
leading fixture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
oPtIonal eQUIPMent:
72”
68 1/2”
38”
22 1/4” 21”
42”
24”
Deck
Width
4 1/2”
42”
Deck Width 4”
49”
24 1/2”
3 1/2”
12 1/2”
