AZI Customer Service 800-528-7411 or 602-470-1414 Page 81 of 92

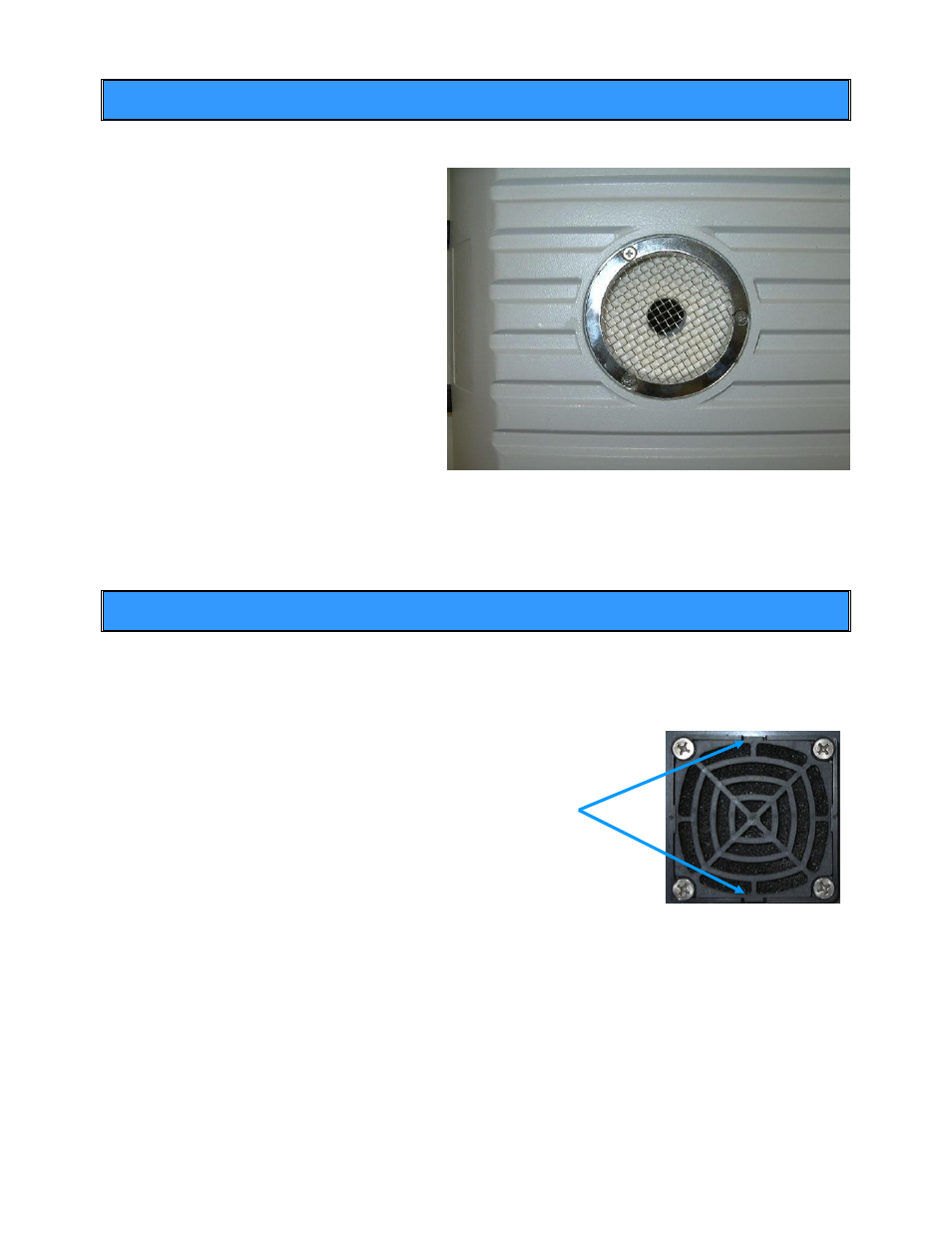

10.5. Oven Vent Cleaning
The oven vent should be inspected regularly for debris build-up. To clean debris from the
vent:

Switch the main power switch
OFF.

Remove the three (3) screws
securing the vent cover.

Remove the vent cover.

Mechanically remove debris
from the wire screen with a
stiff-bristled brush.

Inspect the vent to ensure that
there is no excessive corrosion.
Corrosion may cause debris
falling back into the instrument,
possibly compromising the
readings and performance of
the instrument.

Replace vent cover if needed (AZI P/N 300-0472).

Reinstall vent cover with the three (3) screws.
10.6. External Filter Cleaning
The optional External Filter Kit (AZI# Y990-0210) has five dust/debris filters that should
be inspected regularly for debris build-up.
To clean debris from the filters:

Switch the main power switch OFF.
Remove shroud at tabs on top
and bottom. See picture at right.

Inspect foam filter for debris build-up.
Clean with compressed air if necessary.

Reinstall shroud by pushing back into
place at tabs with flat side of shroud
against the foam filter.

Repeat for all five filters on the External
Filter Kit.
Tabs
